Installation Guide for SelectBlinds Cordless Faux Wood Blinds
A comprehensive installation and operation guide for SelectBlinds Cordless Faux Wood Blinds. Includes tools required, bracket placement for inside and outside mounts, valance and wand assembly, and operating instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This guide provides the necessary steps to install and operate your SelectBlinds Cordless Faux Wood Blinds. Ensure you have all parts and tools ready before beginning the installation process.
Tools needed
- Rechargeable drill with 1/4 inch hex bit
- Phillips screwdriver
- Pencil
- Tape measure
Installation steps
1. Unpacking the parts
Locate all parts and brackets in the hardware box. Note that the quantity of parts varies based on the blind size. A Center Support Bracket is included only for blinds wider than 37 inches. Hold-down brackets are only included if specifically requested.

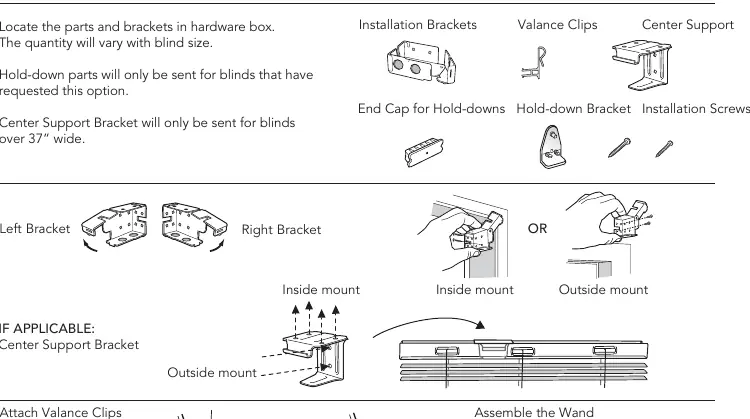

2. Bracket placement
Determine if you are performing an inside mount or an outside mount. Position the left and right brackets accordingly. If your blind is wider than 37 inches, install the Center Support Bracket in the middle.
3. Valance clips and wand
Attach the valance clips to the headrail. Assemble the wand components by snapping them together where applicable.

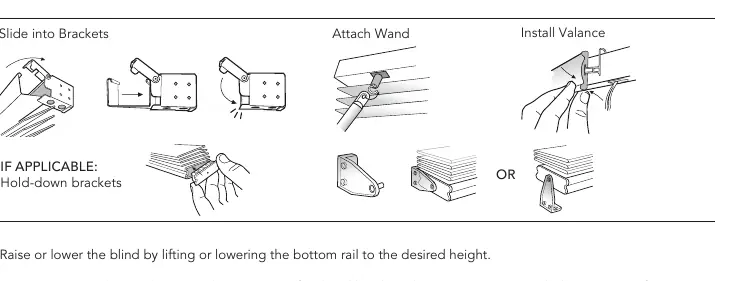

4. Finishing up
Slide the blind into the installed brackets. Attach the wand to the mechanism and install the valance onto the clips. If you have hold-down brackets, secure them to the bottom rail.
Operating instructions
To raise or lower the blind, simply lift or lower the bottom rail to the desired height. To open or close the slats, turn the wand until the slats reach the desired angle.
Important notes
Please note that this product is manufactured with up to 6 inches of additional height. For blinds over 84 inches, this may include up to 10 inches of additional height. This is considered normal for this product and is not a manufacturing defect.
Practical help
Common problems
Blind height appears longer than ordered
This is normal. Blinds may include up to 6 inches of additional height, or up to 10 inches for blinds over 84 inches.
Missing Center Support Bracket
The Center Support Bracket is only provided for blinds wider than 37 inches.
Missing hold-down brackets
Hold-down parts are only sent for blinds where this option was specifically requested.
Before use
- Ensure you have a rechargeable drill with a 1/4 inch hex bit.
- Have a Phillips screwdriver, pencil, and tape measure ready.
- Check if your blind width exceeds 37 inches to determine if a Center Support Bracket is required.
- Verify if you requested hold-down brackets during the order process.
Specs in practice
- Center Support Bracket
- Required for structural support on blinds wider than 37 inches.
- Hold-down brackets
- Optional hardware used to secure the bottom rail of the blind.
Images and diagrams
- Bracket Placement: Illustrates the difference between inside and outside mount configurations.
- Valance and Wand: Shows how to attach valance clips to the headrail and assemble the wand.
- Finishing Up: Demonstrates sliding the blind into brackets and attaching the valance.
Model compatibility
- The installation method for brackets varies significantly between inside and outside window mounts.
