User Manual for Sencor SBR 1040WH Bread Maker

Quick Guide

The Sencor SBR 1040WH is a versatile bread maker designed for home use. Before first use, ensure all packaging is removed and run the BAKE program for 10 minutes while empty to burn off manufacturing residues. Always place the appliance on a stable, dry, and level surface. The maximum capacity for a single batch is 590g of flour and 6g of yeast. Do not use the delay timer for recipes containing perishable ingredients like milk, eggs, or cheese.

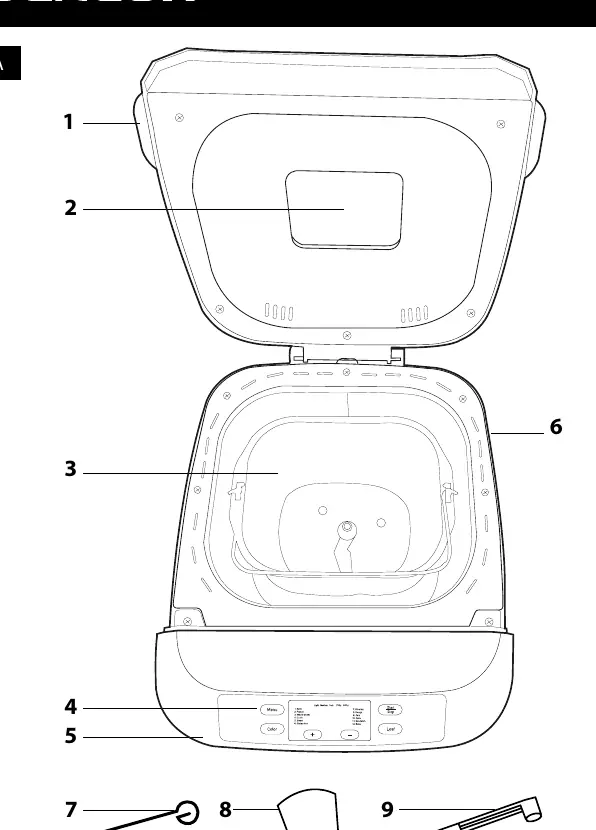

Device Description

The bread maker consists of the main housing, a lid with a viewing window, a removable baking pan with a kneading blade, and a control panel. Accessories include a hook for removing the kneading blade, a measuring cup, and a measuring spoon.

Control Panel

The control panel features a display and several buttons:

• MENU: Selects the desired baking program.
• COLOR: Adjusts the crust browning level (Light, Medium, Dark).
• LOAF: Sets the bread weight (750g or 900g).
• + / -: Adjusts the delay timer.
• START/STOP: Starts, pauses, or cancels the program.

Using the Bread Maker

To operate the device, open the lid and insert the baking pan, locking it into place. Attach the kneading blade to the shaft. Add ingredients in the specified order: liquids first, then dry ingredients, and finally the yeast (ensure yeast does not touch liquids or salt before the program starts). Select the program, crust color, and loaf size, then press START/STOP. The device will automatically handle kneading, rising, and baking.

Programs Overview

• 1-BASIC: For white and mixed bread.
• 2-FRENCH: For light, airy bread with a crispy crust.
• 3-WHOLE WHEAT: For whole grain flour recipes.
• 4-QUICK: Faster baking for recipes using baking powder or soda.
• 5-SWEET: For sweet doughs with added sugar or fruit.
• 6-GLUTEN-FREE: Specifically for gluten-free recipes.
• 7-ULTRA-FAST: Shortest program for quick results.
• 8-DOUGH: Kneading and rising only (no baking).
• 9-JAM: For making jams and marmalades.
• 10-CAKE: For cakes using baking powder.
• 11-SANDWICH: For light bread with a thin crust.
• 12-BAKE: Baking only (adjustable time).

Cleaning and Maintenance

Always unplug the appliance and let it cool completely before cleaning. Do not immerse the main unit or power cord in water. Clean the baking pan and kneading blade with warm soapy water; do not use abrasive cleaners. If the kneading blade is stuck, soak the pan in warm water for 30 minutes to loosen it. Wipe the interior and exterior of the lid with a damp cloth.

Troubleshooting

If smoke comes from the vents, check if ingredients spilled on the heating element. If the bread collapses, remove it from the pan immediately after the Keep Warm cycle ends. If the kneading blade remains in the bread, use the provided hook to remove it. For error messages like HHH (too hot) or LLL (too cold), allow the unit to reach room temperature before restarting.

Technical Specifications

Voltage: 220-240V, 50Hz. Power consumption: 550W. Noise level: ≤ 60 dB(A).
