Assembly Instructions for Simon Rack MEGAPLUS 3/400 Metal Shelving Unit

Quick Guide and Specifications

The Simon Rack MEGAPLUS 3/400 is a heavy-duty metal shelving unit designed for storage. It features a boltless assembly system (Maderclick) for quick installation. The unit dimensions are 90 cm (height) x 120 cm (width) x 40 cm (depth). The maximum load capacity is 200 kg per shelf, with a total maximum load of 600 kg for the entire unit when weight is distributed evenly.

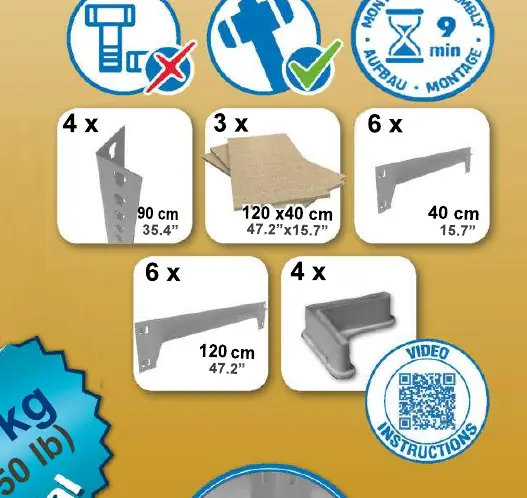

Parts List

Before beginning assembly, ensure all components are present:

• 4 x Upright posts (90 cm)
• 3 x Shelves (120 x 40 cm)
• 6 x Beams (120 cm)
• 4 x Feet/Base protectors

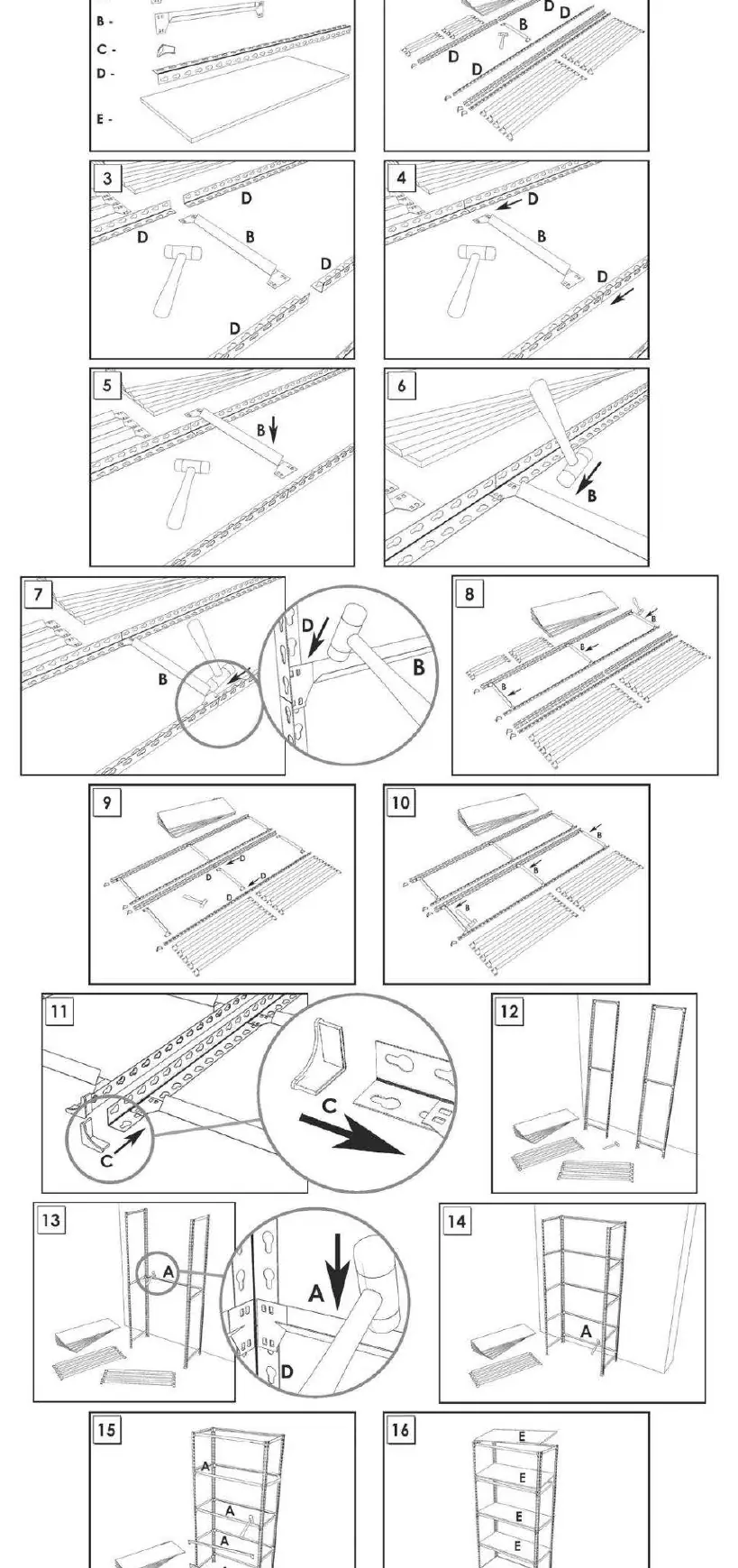

Assembly Instructions

The assembly process utilizes a slot-and-tab system. A rubber mallet is recommended for securing the connections.

1. Base Assembly: Attach the feet to the bottom of the upright posts.
2. Frame Construction: Connect the beams to the uprights using the provided slots. Ensure the beams are fully seated.
3. Shelf Installation: Place the shelves onto the assembled beam structure.
4. Securing: Use a rubber mallet to gently tap the beams into the upright slots to ensure a tight, secure fit.
5. Completion: Repeat the process for all levels until the unit is fully assembled.

Safety and Usage

To ensure stability and safety, always distribute the weight evenly across the shelves. Do not exceed the maximum load capacity of 200 kg per shelf or 600 kg total. Ensure the unit is placed on a level surface. If the unit is tall, consider anchoring it to the wall if required by local safety standards.
