User Manual for Skytech 1001TH-A Remote Control
Comprehensive user guide for the Skytech 1001TH-A fireplace remote control. Includes installation, wiring diagrams for millivolt and electronic ignition systems, operating instructions, thermostat settings, and troubleshooting tips.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual

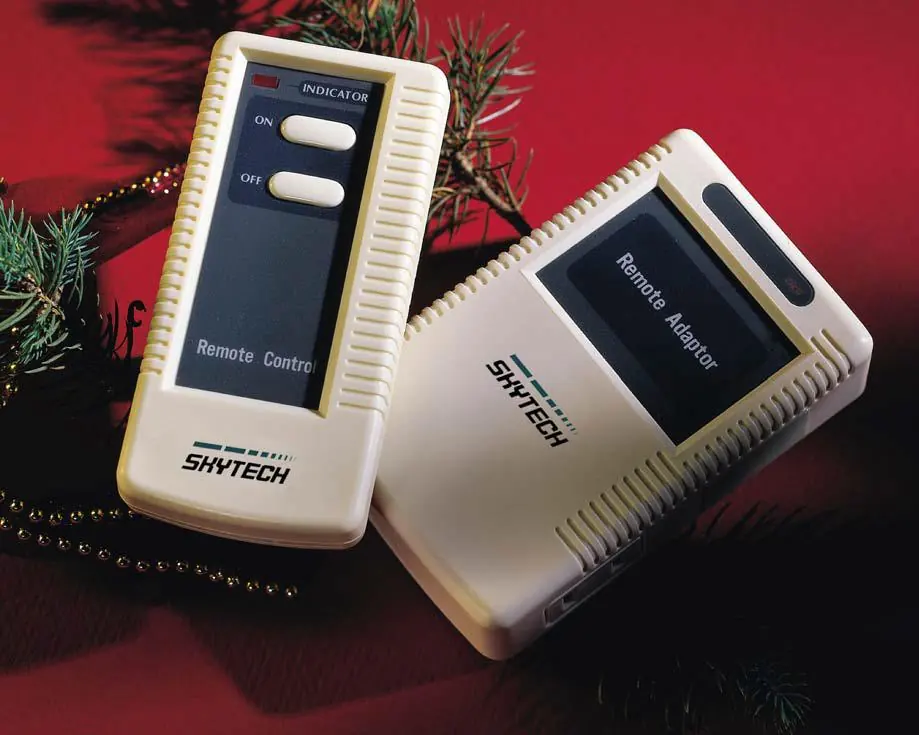

The Skytech 1001TH-A is a battery-operated remote control system designed for gas heating appliances. Before initial use, you must perform the 'Learning' procedure to match the transmitter's security code to the receiver. Ensure the receiver slide switch is set to the REMOTE position for normal operation. The system operates on radio frequencies with a range of approximately 20 feet.
Transmitter Overview
The transmitter features an LCD screen and four buttons:
- ON: Manually turns the unit on.
- OFF: Manually turns the unit off.
- MODE: Switches between manual and thermo mode.
- SET: Used to set the desired temperature in thermo mode.
The LCD displays room temperature, flame status, and set temperature. You can toggle between Fahrenheit and Celsius by pressing the ON and OFF keys simultaneously.
Installation
The remote receiver can be wall-mounted or placed on the hearth. Protection from extreme heat is critical; keep the receiver away from temperatures exceeding 130°F.
Wiring Instructions
Millivolt Valves: Connect the TH (thermostat) terminals on the millivolt gas valve to the wire terminals on the remote receiver using 18-gauge wire.
Electronic Spark Ignitions: Connect the remote receiver in series with a 24VAC transformer to the TR (transformer) terminal on the electronic module. Connect the hot wire from the transformer to one receiver terminal, and the other receiver terminal to the TH terminal on the electronic module.
Operation
Manual Function
Press the ON button to ignite the appliance. Press the OFF button to extinguish the flame. The LCD will show ON or OF during signal transmission.
Thermostat Function
To use the thermostat feature, press the MODE button until 'ROOM' appears on the LCD. Press and hold the SET button to adjust the desired temperature (range: 45°F to 99°F). The system will cycle on and off based on the temperature differential (factory set to +/- 2°F).
Childproof (CP) Feature
To lock the transmitter, press and hold the ON and MODE buttons simultaneously for 5 seconds. 'CP' will appear on the LCD. Repeat the process to unlock.
Troubleshooting
- System does not respond: Check that batteries are fresh and installed correctly. Ensure the receiver slide switch is in the REMOTE position. Perform the learning procedure again.
- Short range: Check batteries. Ensure the receiver is not enclosed in a metal surround, which can block signals.
- Flame does not ignite: Verify the pilot light is lit. Check all wiring connections for loose wires.
Specifications
- Operating Frequency: 303.8 MHz
- Transmitter Batteries: (2) 1.5V AAA
- Receiver Batteries: (4) 1.5V AA
- Temperature Range: 45°F to 99°F (6°C to 32°C)
Practical help
Common problems
System does not respond to transmitter
Ensure receiver slide switch is in the REMOTE position. Check that batteries are fresh and installed correctly. Perform the 'Learning' procedure to match codes.
Short operating range
Check battery levels. Ensure the receiver is not installed inside a metal enclosure, which can interfere with radio signals.
Flame does not ignite
Verify the pilot light is lit. Check wiring connections between the receiver and the gas valve or electronic module.
Before use
- Install 2x AAA batteries in the transmitter.
- Install 4x AA batteries in the receiver.
- Ensure receiver slide switch is in the REMOTE position.
- Perform the 'Learning' procedure to match the transmitter security code to the receiver.
- Verify the pilot light is on (for gas appliances).
Specs in practice
- Operating Frequency
- 303.8 MHz (Radio frequency used for communication).
- Temperature Range
- 45°F to 99°F (6°C to 32°C) for thermostat control.
- Battery Requirements
- Transmitter: 2x 1.5V AAA; Receiver: 4x 1.5V AA (Alkaline recommended).
Images and diagrams
- Millivolt Wiring: Connects TH terminals on the gas valve to the receiver terminals.
- Electronic Ignition Wiring: Connects in series with a 24VAC transformer to the electronic module.
Model compatibility
- Compatible with most millivolt gas valves.
- Compatible with electronic spark ignition systems using a 24VAC transformer.
