Sloan Royal 111-1.28-CP Manual Flushometer
Quick guide for the Sloan Royal 111-1.28-CP manual flushometer. Includes technical specifications, operating pressure requirements, rough-in dimensions, and key features.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Sloan Royal 111-1.28-CP is a manual diaphragm flushometer designed for water closets. Before installation, ensure your water supply system provides a flowing pressure between 15 and 80 psi (103-552 kPa). This unit is designed for fixtures with a top spud connection and requires a 1-inch supply pipe.
Product overview
This flushometer features a polished chrome finish and is built with high-copper, low-zinc brass castings for dezincification resistance. It utilizes CID technology for flush accuracy and includes a PERMEX synthetic rubber diaphragm with a dual-filtered fixed bypass.
Technical specifications
- Flush Volume: 1.28 gpf (4.8 lpf)
- Valve Type: Diaphragm
- Fixture Connection: Top Spud
- Supply Pipe: 1 inch (25mm)
- Spud Coupling: 1.5 inches (38mm)
- Rough-in Dimension: 11.5 inches (292mm)
Operating requirements
The valve requires a flowing pressure of 15-80 psi (103-552 kPa) to operate correctly. Specific fixtures may require higher minimum flowing pressure; always consult the fixture manufacturer's requirements.
Features
- ADA Compliant: Features a non-hold open handle to prevent exceeding the intended flush volume.
- Vandal-Resistant: Equipped with a vandal-resistant stop cap.
- Durability: Constructed with semi-red brass for the valve body, cover, tailpiece, and control stop.
Rough-in dimensions
The installation requires a specific rough-in dimension of 11.5 inches (292mm) from the centerline of the fixture to the supply pipe. Ensure the supply line is 1 inch I.P.S.
Practical help
Common problems
Insufficient flush volume
Check if water pressure is within the required 15-80 psi range.
Valve not operating
Verify supply pipe size is 1 inch and connection type is correct for the fixture.
Before use
- Verify water supply pressure is between 15-80 psi (103-552 kPa).
- Ensure fixture is a water closet with a top spud connection.
- Confirm supply pipe size is 1 inch (25mm).
- Check that the rough-in dimension is 11.5 inches (292mm).
Specs in practice
- Flush Volume
- 1.28 gpf (4.8 lpf) - The amount of water used per flush.
- Operating Pressure
- 15-80 psi - Required flowing pressure for proper valve function.
- Rough-in Dimension
- 11.5 inches - Distance from the centerline of the fixture to the supply pipe.
Images and diagrams

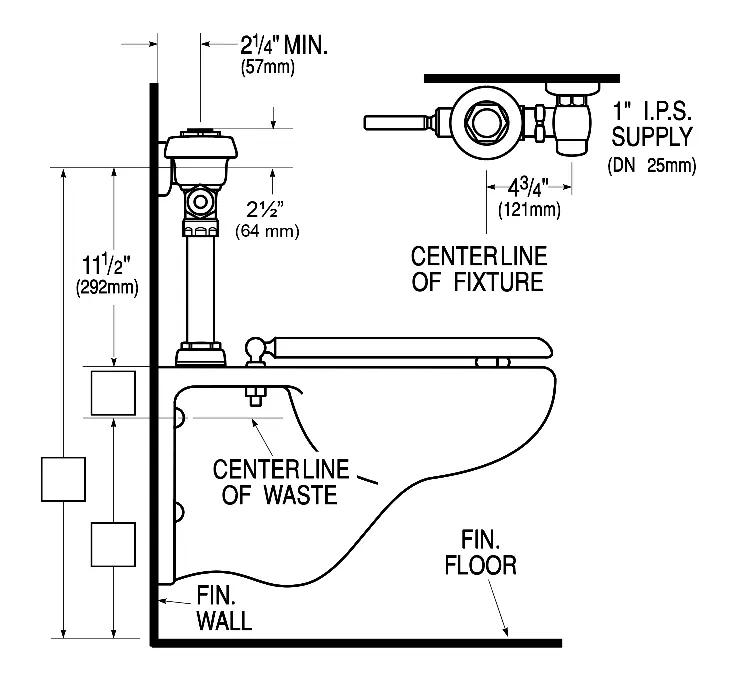

- The rough-in drawing illustrates the required distance from the finished wall and floor to the fixture connection and supply pipe.
Model compatibility
- Compatible with WaterSense fixtures when used with a 1.28 gpf flushometer.
- Designed for water closets with top spud connections.
