Terma CKF Mounting Bracket Installation Guide
Step-by-step installation instructions for the Terma CKF mounting bracket. This guide covers the necessary tools, drilling requirements, and assembly steps to securely mount your towel rail.
Table of contents
Manual images
Click an image to enlargeQuick Installation Guide
The Terma CKF mounting bracket is designed for secure installation of towel rails. Ensure you have the correct tools before beginning. The process involves drilling 10mm holes, inserting wall plugs, and securing the bracket base to the wall before attaching the rail.
Tools Required
- PZ1 and PZ3 screwdrivers
- 4mm hex key
- 14mm and 22mm wrenches (required for water and dual fuel versions)
- 10mm drill bit
Installation Steps
1. Drilling and Wall Preparation
Mark the positions for the brackets on the wall. Use a 10mm drill bit to create holes with a depth of 80mm. Insert the provided wall plugs into the holes.
2. Attaching the Bracket Base
Secure the bracket base to the wall using the provided screws. Ensure the base is firmly attached and level before proceeding to mount the towel rail.

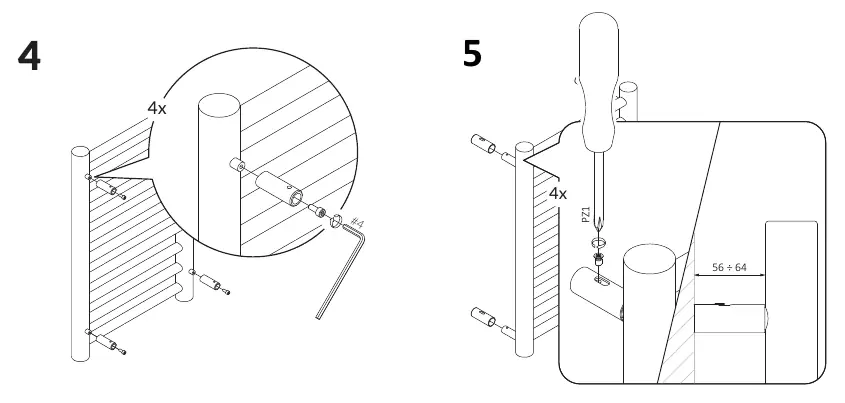

3. Mounting the Towel Rail
Attach the towel rail to the installed brackets. Use the 4mm hex key to tighten the locking screws. For water and dual fuel versions, ensure the specific valves or connections marked with an asterisk (*) are tightened using the 14mm or 22mm wrenches as required.
Important Notes
Components marked with an asterisk (*) in the diagrams apply specifically to water and dual fuel versions of the towel rail. Always ensure the wall structure is suitable for the mounting hardware provided.
Practical help
Common problems
Bracket feels loose after installation
Ensure the wall plug is fully inserted and the screw is tightened securely using a PZ3 screwdriver.
Difficulty tightening connections on water/dual fuel versions
Use the appropriate 14mm or 22mm wrench to ensure a secure fit for the valve connections.
Before use
- Verify the wall type is suitable for 10mm drill bit and provided plugs.
- Ensure you have a PZ1 and PZ3 screwdriver available.
- Check if you have 14mm and 22mm wrenches for water/dual fuel connections.
- Confirm the 4mm hex key is included in the kit.
- Measure the distance between mounting points on your specific towel rail model.
Images and diagrams
- Step 1: Drilling 10mm holes into the wall.
- Step 2: Inserting wall plugs into the drilled holes.
- Step 3: Securing the bracket base to the wall using the provided screws.
Model compatibility
- Components marked with an asterisk (*) are specific to water and dual fuel versions.
