User Manual for Terra 2463W PV white Monitor
Quick guide for the Terra 2463W PV white monitor. Includes setup, OSD menu navigation, stand adjustments, technical specifications, and troubleshooting tips.
Quick answers from the manual
Quick answer
- The Terra 2463W PV white is a 23.8-inch monitor. This manual covers installation, OSD menu navigation, stand adjustments, and troubleshooting. p. 1, 6, 7, 10
Key actions
- Connect video cable (HDMI/DP) and power cord, then power on the computer followed by the monitor. p. 6
- Adjust resolution and refresh rate in Windows Display Settings. p. 6
First start
- Unpack, connect power and video cables, power on, and adjust stand/OSD settings. p. 5, 6, 7
Show 4 more answers Show less
Problems and fixes
No power
Check power cord and outlet.
p. 16
No screen image
Check video cable and brightness.
p. 16Maintenance and reset
- Use the RESET function in the OSD menu to recall factory settings. p. 13
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Resolution | 1920 x 1080 | Full HD maximum resolution | p. 15 |
| Power | DC 12V 2.5A | Input voltage requirements | p. 15 |
| Speakers | 2W x 2 | Built-in audio output | p. 15 |
Where to find it in the PDF
- Safety Precautions p. 4
- Quick Installation p. 6
- Stand Adjustments p. 7
- Technical Specifications p. 15
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Terra 2463W PV white is a 23.8-inch high-resolution LCD/LED monitor. This manual provides instructions for safe installation, operation, and maintenance. Always ensure the monitor is placed in a clean, dry, and well-ventilated environment.

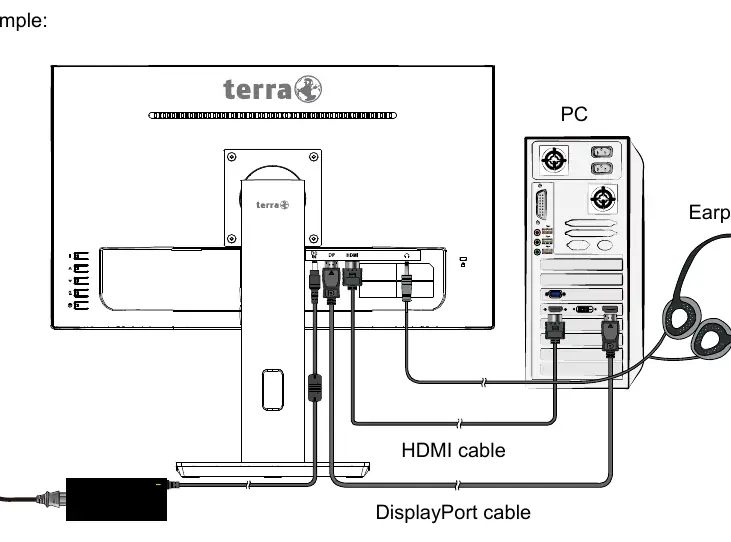

Installation
Follow these steps to set up your monitor:
- Connect Video Cable: Use the HDMI or DisplayPort cable to connect the monitor to your computer. Ensure both devices are powered off before connecting.
- Connect Power: Connect the power cord to a properly grounded AC outlet, then to the monitor.
- Connect Audio: Connect headphones or external speakers to the earphone output terminal if needed.
- Power On: Power on the computer first, then the monitor.
- Configure Settings: In Windows, right-click the desktop, go to Display Settings, and set the resolution to 1920 x 1080 @ 60 Hz.

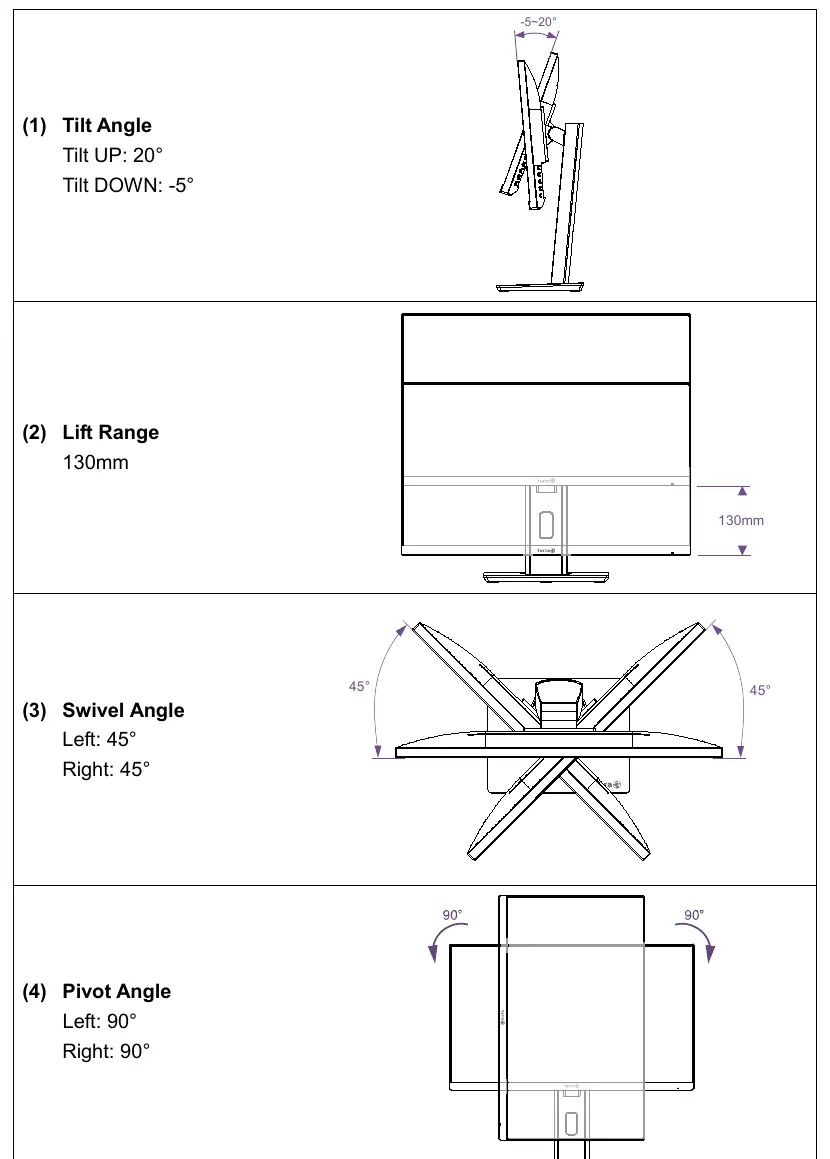

Stand Adjustments
The monitor stand supports the following adjustments:
- Tilt: Up 20°, Down -5°.
- Lift: 130mm range.
- Swivel: Left 45°, Right 45°.
- Pivot: Left 90°, Right 90°.
Controls and OSD Menu
The monitor features front-facing buttons for OSD control:
- 1: Menu/Exit. Long press to lock/unlock OSD.
- Up (˄): Navigate up or enter Anti Blue Light menu.
- Down (˅): Navigate down or enter Brightness menu.
- 2: Confirm/Select or adjust modes.
- Power: Power ON/OFF. Long press to lock/unlock power.
The OSD menu allows adjustment of Brightness, Contrast, DCR, Over Drive (OD), ECO mode, Aspect Ratio, Picture Mode (Standard, Movie, Game, Text), Color Temperature, and OSD settings.
Technical Specifications
- Panel Size: 23.8" (60.5 cm)
- Resolution: 1920 x 1080 (Full HD)
- Refresh Rate: 60Hz max
- Power Input: DC 12V 2.5A
- Speakers: 2W x 2
- Operating Temperature: 0°C to +40°C
Care and Maintenance
- Keep the monitor away from magnetic objects, motors, and transformers.
- Unplug the monitor before cleaning.
- Clean the cabinet with a clean, dry cloth. Use non-ammonia based cleaner on the cloth, not directly on the screen.
- If the monitor is not in use for an extended period, unplug it.
Practical help
Common problems
No power
Ensure the AC power cord is securely connected to the power adapter and the monitor. Verify the wall outlet is supplying power.
No screen image
Ensure the video cable is tightly secured to the computer and monitor. Adjust the brightness setting.
Wrong or abnormal colors
Check the video cable for loose or broken pins. Connect to another computer to verify. Reset the monitor to default settings.
Before use
- Ensure the monitor is in a clean, dry, and well-ventilated area.
- Connect to a properly grounded AC outlet.
- Use the provided shielded video cable with bonded ferrite cores.
- Remove all packaging materials, including plastic bags and polystyrene foam.
- Adjust the tilt for an optimum viewing position.
Show more Show less
Images and diagrams
- Front buttons: 1 (Menu), 2 (Up), 3 (Down), 4 (Confirm), 5 (Power), 6 (LED Indicator).

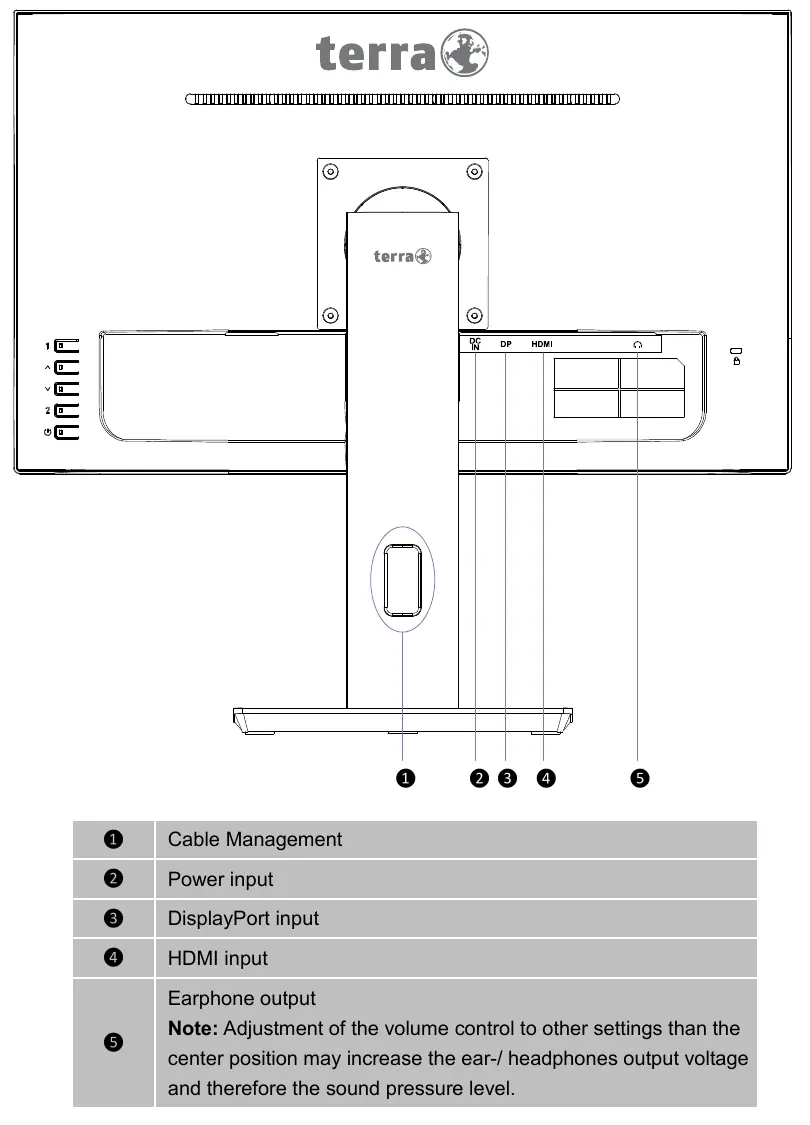

- Rear ports: Power input, DisplayPort input, HDMI input, Earphone output.
Model compatibility
- Supports VESA DPMS power management.
- Compatible with various timing modes including VGA, MAC, and VESA standards.
