Installation Manual for The Home Depot 21049-W1BK Modern LED Vanity Light
Quick guide for installing the 21049-W1BK Modern LED Vanity Light. Includes assembly steps, wiring diagrams, and safety precautions for proper setup.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

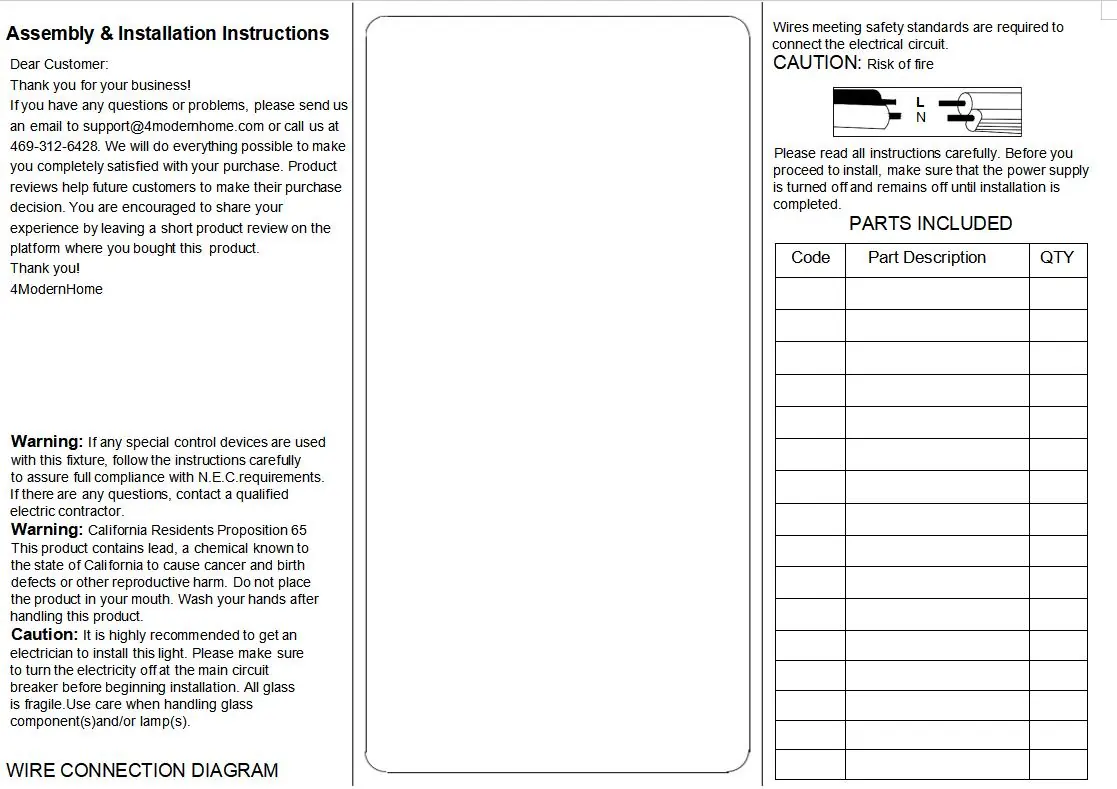

This document provides the necessary steps to assemble and install the 21049-W1BK LED vanity light. Please ensure all parts are present before beginning the installation process.
Safety information
- Power Supply: Always turn off the electricity at the main circuit breaker before beginning installation and keep it off until the installation is complete.
- Professional Installation: It is highly recommended to have a qualified electrician install this fixture.
- Special Controls: If using special control devices, follow the instructions carefully to ensure compliance with N.E.C. requirements.
- Handling: All glass components are fragile. Handle with care.
- California Residents: This product contains lead, a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
Assembly and installation
Follow these steps to assemble the fixture:
- Attach the mounting bracket (C) and studs (D) to the junction box (A).
- Connect the leading wires (E) and wires (F) using the wire nuts (B).
- Secure the canopy (J) to the mounting bracket (C) using the screws (G).
Wiring instructions
Ensure wires meet safety standards when connecting to the electrical circuit. Follow the provided wiring diagram to connect the live (L) and neutral (N) wires correctly. Ensure the power remains off during this process to avoid the risk of fire.
Parts included
- Junction box (A)
- Wire nuts (B)
- Mounting bracket (C)
- Studs (D)
- Leading wires (E)
- Wires (F)
- Screws (G)
- Canopy (J)
- CCT Switch (I)
Manufacturer information
The Home Depot
Practical help
Common problems
Fixture does not light up
Verify that the power is turned on at the main circuit breaker and check that all wire connections are secure and correctly made.
Before use
- Turn off power at the main circuit breaker
- Verify all parts listed in the 'Parts Included' section are present
- Ensure you have a qualified electrician for installation if you are not experienced
- Handle glass components with care
Images and diagrams

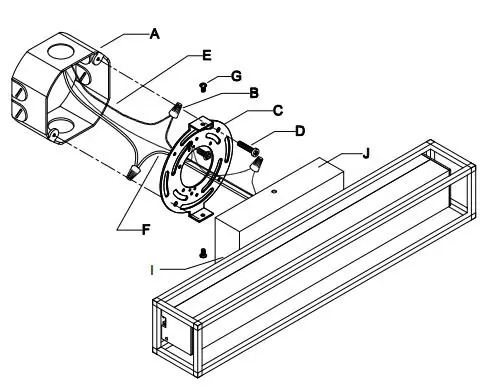

- The assembly diagram illustrates the sequence of attaching the mounting bracket to the junction box and securing the canopy.
- The wiring diagram shows the connection of the live and neutral wires to the electrical circuit.
Model compatibility
- Requires a standard junction box for installation.
- If using special control devices, ensure compliance with N.E.C. requirements.
