Toyota bZ4X Specification Guide
Comprehensive specification guide for the Toyota bZ4X and bZ4X AWD. Includes details on battery, charging, performance, safety features, and vehicle dimensions.
Quick answers from the manual
Quick answer
- The Toyota bZ4X is an electric SUV with a 71.4 kWh battery. It supports AC charging (Type 2, 11kW) and DC fast charging (CCS2, 150kW). p. 1
Key actions
- Charging the vehicle p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Battery Capacity | 71.4 kWh | Total energy storage | p. 1 |
| AC Charging | 11 kW | Maximum AC charging power | p. 1 |
| DC Charging | 150 kW | Maximum DC charging output | p. 1 |
Where to find it in the PDF
- Mechanical Specifications p. 1
- Features and Equipment p. 2
- Safety and Services p. 3
Table of contents
Quick guide from the manual
This document provides the technical specifications and feature list for the Toyota bZ4X and bZ4X AWD models. It serves as a reference for vehicle dimensions, battery performance, charging capabilities, and safety equipment.
Battery and Charging
- Battery Type: Lithium-ion battery with 71.4 kWh total power.
- AC Charging: Uses Type 2 input. 11 kW charging power. Approx. 9 hours 30 mins (Single-Phase) or 7 hours (3-Phase) for 10-100% charge.
- DC Charging: Uses CCS2 input. Max output 150 kW. Approx. 30 mins for 10-80% charge.
- Cables: Mode 2 and Mode 3 charging cables are included.
Performance
- Max Speed: 160 km/h for both models.
- Acceleration (0-100km/h): 7.5s (bZ4X) / 6.9s (bZ4X AWD).
- Drive Train: BEV automatic transmission.
Safety and Security
The vehicle is equipped with Toyota Safety Sense, which includes:
- All-speed Active Cruise Control with curve speed reduction.
- Lane Departure Alert with steering assist.
- Pre-Collision Safety system with pedestrian and cyclist detection.
- Emergency Steering Assist and Road Sign Assist.
- 7 SRS Airbags.
- Parking Support Brake (PKSB) with parking sensors.
Comfort and Convenience
- Climate Control: Dual-zone climate control auto air conditioning.
- Seating: Driver power front seat (8-way), heated front seats.
- Multimedia: 12.3" multimedia system with cloud navigation, Wireless Apple CarPlay, and Wireless Android Auto.
Manufacturer information
Toyota Motor Corporation
Practical help
Common problems
Slow DC charging
Frequent use of DC Fast Charging can impact battery performance. Toyota recommends minimizing DC Fast Charging usage.
Before use
- Verify the charging cable type (Type 2 for AC, CCS2 for DC).
- Check tire repair kit availability.
- Ensure the vehicle is parked on a level surface before charging.
- Confirm towing capacity limits before attaching a trailer.
Specs in practice
- Battery Capacity
- 71.4 kWh total power, 201 Ahr.
- AC Charging Power
- 11 kW maximum input.
- DC Charging Power
- 150 kW maximum output.
- Towing Capacity
- 750 kg (braked and unbraked).
Images and diagrams

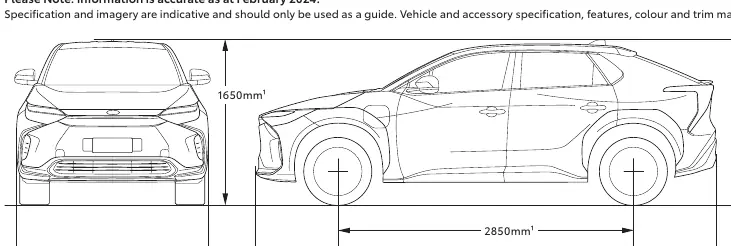

- The vehicle diagram on page 1 provides exterior dimensions including length (4690mm), wheelbase (2850mm), and height (1650mm).
Model compatibility
- AC Input: Type 2.
- DC Input: CCS2.
- Connected Services: Requires activated DCM and compatible device.
