Traxxas Nissan 240SX Drift Car Owner's Manual
Comprehensive owner's manual for the Traxxas Nissan 240SX Drift Car. Includes setup, radio system configuration, ESC programming, maintenance, and drifting performance tips.
Quick answers from the manual
Quick answer
- The Traxxas Nissan 240SX Drift Car is a Ready-To-Race model. Setup involves installing batteries, binding the TQi radio system, and configuring the XL-5 ESC for your battery type (LiPo or NiMH). p. 9, 13, 16, 18
Key actions
- Binding the radio p. 16
- Programming ESC p. 18
First start
- Install 4 AA batteries in the transmitter, charge the main battery pack, install it in the model, and turn on the transmitter first, then the model. p. 9, 13, 15
Show 4 more answers Show less
Problems and fixes
ESC LED blinking fast red
Thermal shutdown; let the ESC cool down.
p. 20Maintenance and reset
- Restoring Factory Defaults for TQi transmitter p. 31
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Input Voltage | 4-7 cells NiMH; 2S LiPo | Compatible battery types | p. 18 |
| Motor | Titan Drift 550 21T | Included motor | p. 12, 26 |
| Radio Frequency | 2414~2453 MHz | Operating frequency | p. 2 |
Where to find it in the PDF
- Model Overview p. 8
- Quick Start p. 9
- ESC Programming p. 18, 19, 20
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Traxxas Nissan 240SX Drift Car is a high-performance RC vehicle. To get started, ensure you have a compatible battery pack (NiMH or 2S LiPo) and 4 AA batteries for the transmitter. Always turn the transmitter on first and off last to prevent loss of control. Follow the Quick Start guide on page 9 for the essential steps to get your model running.
Safety Precautions
- Battery Safety: Never use NiMH chargers for LiPo batteries. Always use a Traxxas iD charger for Traxxas iD batteries.
- Thermal Protection: The ESC and motor can become hot. Allow the model to cool between runs.
- Radio Safety: Do not cut or kink the receiver antenna. Always maintain a safety margin around the model.
- Wet Conditions: While water-resistant, the model is not waterproof. Additional maintenance is required after running in wet conditions.
Radio System (TQi 2.4GHz)
The TQi radio system is pre-bound at the factory. If you need to re-bind, follow the instructions on page 16. The transmitter features a Multi-Function knob that can be customized to control steering sensitivity, throttle sensitivity, steering percentage, or braking percentage.
Electronic Speed Control (ESC)
The XL-5 ESC is equipped with Low-Voltage Detection for LiPo batteries. Ensure this is activated when using LiPo packs. The ESC offers three profiles: Sport (100% Forward/Brake/Reverse), Race (100% Forward/Brake, No Reverse), and Training (50% Forward/Reverse, 100% Brake).

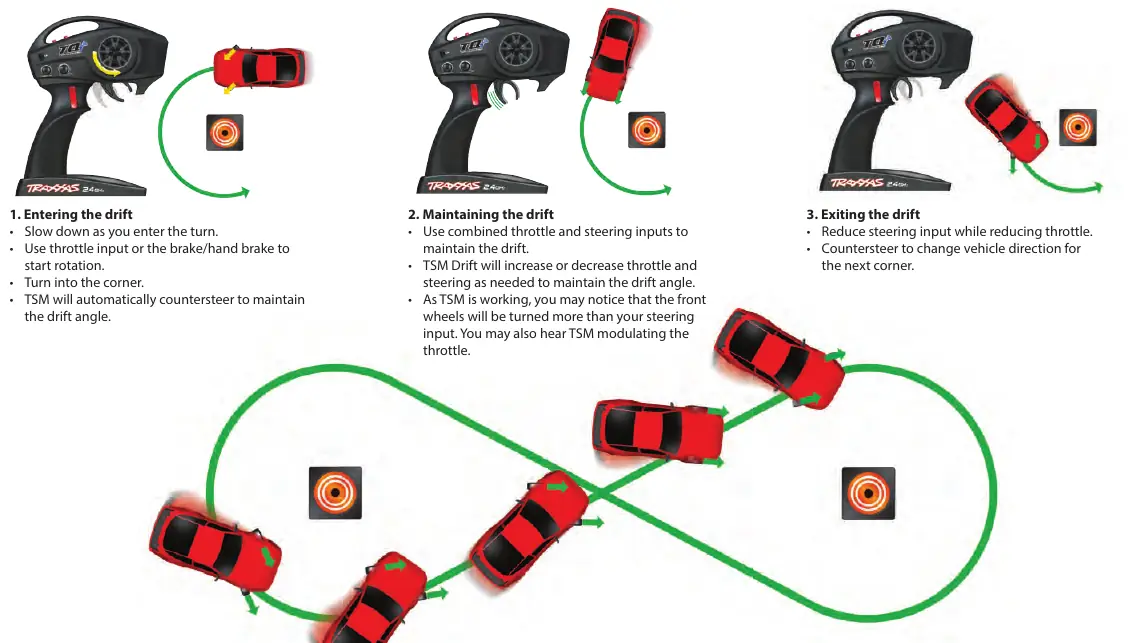

Drifting Performance
Drifting requires practice. Use small, smooth inputs. The TSM (Traxxas Stability Management) system helps maintain drift angles. Experiment with the Multi-Function knob to adjust steering angle and sensitivity to suit your driving style.
Maintenance
- Cleaning: Use compressed air or a soft brush to remove dirt.
- Gear Mesh: Inspect the spur gear and pinion gear regularly. Use the provided chart to ensure correct gear mesh.
- Shocks: Keep oil levels full using 100% pure silicone shock oil.
- Storage: Always disconnect and remove the battery when storing the model.
Practical help
Common problems
Model does not move
Check battery charge, ensure ESC is turned on, and verify the radio system is bound.
ESC LED blinking fast red
Thermal shutdown protection activated. Let the ESC cool down.
Poor radio range
Ensure the antenna is not cut or kinked and check transmitter batteries.
Before use
- Charge the main battery pack
- Install 4 AA batteries in the transmitter
- Check antenna installation
- Verify ESC mode (LiPo/NiMH) matches your battery
Show more Show less
Specs in practice
- Low-Voltage Detection
- Protects LiPo batteries from being discharged below a safe threshold.
- TSM (Traxxas Stability Management)
- Assists with steering and throttle to help maintain drift angles.
Images and diagrams

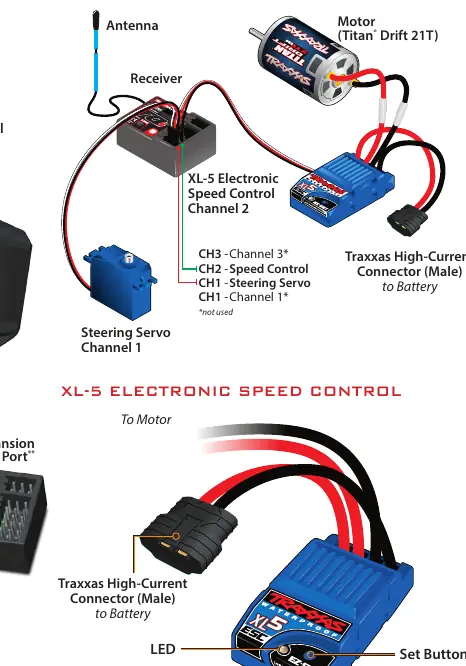

- Wiring diagram shows connections between battery, ESC, motor, and receiver.
- Menu tree explains how to navigate transmitter settings.
Model compatibility
- Compatible with 4-7 cell NiMH or 2S LiPo batteries.
- Titan Drift 550 21T motor is included.
- Requires Traxxas iD High-Current connector.
