User Manual for TRIO 2026701XX Wall-Mounted Reading Lamp
Quick guide for the TRIO 2026701XX wall-mounted reading lamp. Includes installation steps for plug-in and hardwired versions, technical specifications, and safety warnings.
Quick answers from the manual
Quick answer
- The TRIO 2026701XX is a wall-mounted reading lamp. It supports two installation methods: plug-in (A) and hardwired (B). It requires a GU10 bulb with a maximum of 10W. p. 2
Key actions
- Install the lamp using the provided bracket. p. 2
First start
- Insert a GU10 bulb (max 10W) into the socket. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V ~ 50Hz | Power supply | p. 2 |
| Bulb | 1x GU10 / max 10W | Light source | p. 2 |
Where to find it in the PDF
- Safety Instructions p. 1
- Installation and Specs p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The TRIO 2026701XX is a wall-mounted reading lamp designed for indoor use. This document provides instructions for two installation methods: plug-in (with cord) and hardwired (direct connection). Always read the safety instructions before beginning any installation work.
Installation
Before starting, ensure the power supply is disconnected. Choose the installation method that matches your setup:
Option A: Plug-in Installation
- Drill holes in the wall according to the bracket dimensions.
- Secure the mounting bracket to the wall using the provided screws and anchors.
- Attach the lamp base to the mounted bracket.
- Insert a GU10 bulb (max 10W) into the socket.
Option B: Hardwired Installation
- Drill holes in the wall and secure the mounting bracket.
- Connect the electrical wires from the wall to the lamp's terminal block.
- Attach the lamp base to the mounted bracket.
- Insert a GU10 bulb (max 10W) into the socket.
Technical Specifications
- Voltage: 230V ~ 50Hz
- Light Source: 1x GU10, max 10W
- Protection Class: Class II (Double insulated)
- IP Rating: IP20
- Minimum Distance: 0.2m from illuminated objects
Safety
This product is intended for indoor use only. Ensure the lamp is mounted securely. Do not exceed the maximum wattage of 10W for the bulb. Maintain a minimum distance of 0.2 meters from the illuminated surface to prevent overheating.
Practical help
Common problems
Lamp does not turn on
Check if the bulb is properly inserted and the power source is active.
Before use
- Ensure power is disconnected before installation
- Verify wall surface is suitable for mounting
- Check bulb type (GU10, max 10W)
- Verify minimum distance of 0.2m from objects
Images and diagrams

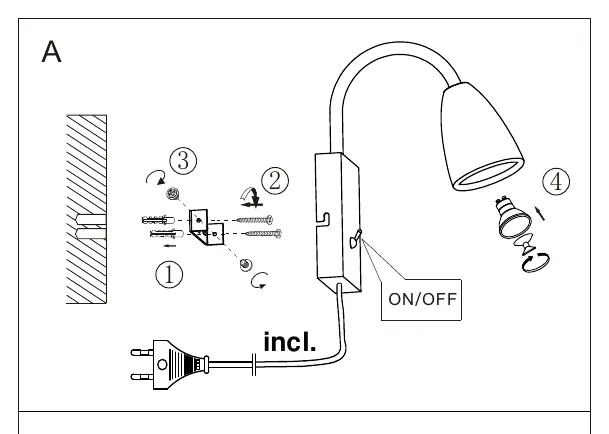

- Diagram A shows the plug-in installation method.

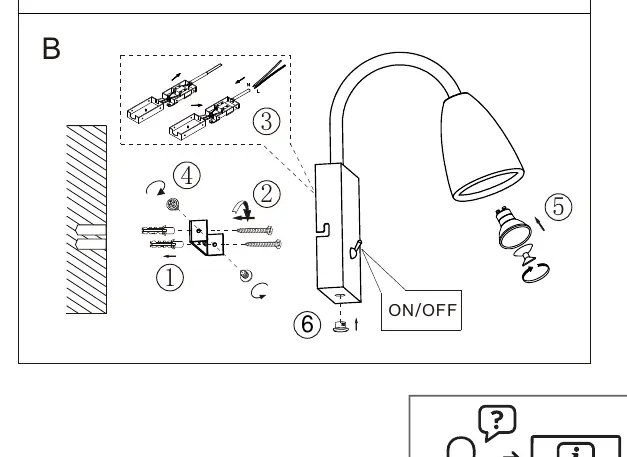

- Diagram B shows the hardwired installation method.
Model compatibility
- Requires GU10 bulb (max 10W).
