Instruction Manual for TRIO TS-130 Series HF Transceiver
Quick guide and technical reference for the TRIO TS-130 Series HF Transceiver (TS-130SE, TS-130S, TS-130V). Includes operating features, frequency ranges, technical specifications, and optional accessories.
Table of contents
Manual images
Click an image to enlargeQuick Guide to the TS-130 Series
The TRIO TS-130 Series (TS-130SE, TS-130S, and TS-130V) is a solid-state HF SSB/CW transceiver designed for both mobile and fixed station operation. It covers all amateur bands from 3.5 to 29.7 MHz. The series features a digital frequency display, IF shift for interference reduction, a built-in speech processor, and VOX operation.
Operating Features
Digital Display and Frequency Control: The transceiver features a six-digit digital display indicating operating frequency to 100 Hz. The TS-130 Series utilizes a single-conversion PLL system for stability.
IF Shift: This system allows the IF passband to be moved to avoid interfering signals and sideband splatter. Selectivity can be further improved by installing optional filters (YK-88SN 1.8 kHz, YK-88C 500 Hz, or YK-88CN 270 Hz).
Speech Processor: Combines an audio compression amplifier with ALC time constant changes to increase average SSB output power.
VOX and Noise Blanker: Includes built-in VOX with gain, delay, and anti-VOX controls. The noise blanker minimizes pulse-type interference such as ignition noise.
Protection Circuit: The final amplifier stage is protected by circuitry that monitors VSWR and temperature. Output power is automatically reduced if these parameters exceed normal operating conditions.
Technical Specifications
Frequency Range: 3.5 to 29.7 MHz (all amateur bands).
Power Output (TS-130SE/S): 200W PEP / 160W DC input on 80-15m; 160W PEP / 140W DC input on 12-10m.
Power Output (TS-130V): 25W PEP / 20W DC input on all bands.
Power Requirements: 13.8V DC.

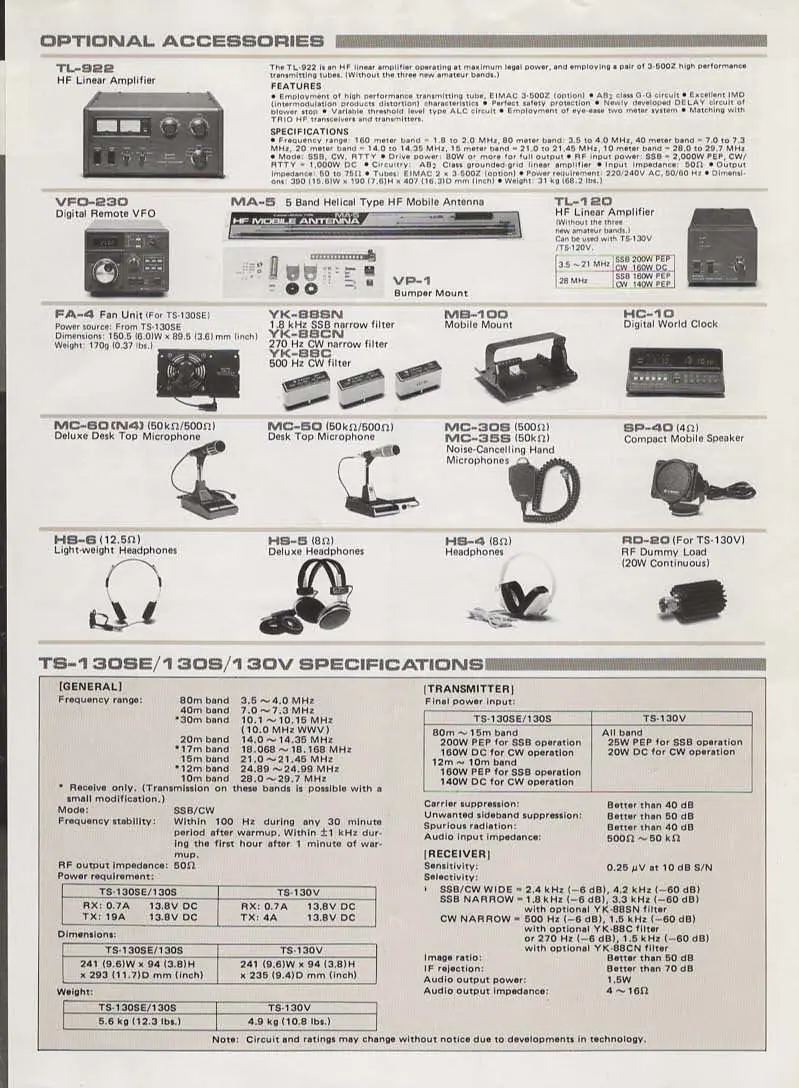

Optional Accessories
The TS-130 Series supports various optional accessories to enhance performance:
- DFC-230: Digital frequency controller with four memories and 20 Hz step digital VFO.
- VFO-120: Remote VFO for split-frequency operation.
- Power Supplies: PS-30 (for TS-130SE/S/TL-120) and PS-20 (for TS-130V).
- AT-130: Antenna tuner for base or mobile use.
- Speakers/Microphones: SP-120 external speaker, MC-60/MC-50/MC-30S/MC-35S microphones.
- Cooling: FA-4 fan unit (for TS-130SE).
Practical help
Common problems
Interference or sideband splatter
Use the IF shift system to move the IF passband away from the interfering signal.
High temperature during long transmissions
The cooling fan (FA-4) activates automatically at 90 degrees centigrade to protect the final transistor.
Transmitter protection
Output power is automatically reduced if VSWR or temperature exceeds normal operating conditions.
Before use
- Verify the power source is 13.8V DC.
- Ensure the antenna is properly connected and tuned for the desired band.
- Check that the band switch and VFO are set to the desired frequency.
- Confirm the microphone is connected to the front panel input.
- Verify the mode switch (CW, SSB, REV) is set correctly for the operation.
Specs in practice
- Frequency Range
- Covers 3.5 to 29.7 MHz, including the 10, 18, and 24.5 MHz bands.
Images and diagrams
- Block Diagram: Illustrates the signal flow from the AF unit through the IF, Final, and Filter units.
- Frequency Composition: Lists the VCO frequencies required for each amateur band.
Model compatibility
- Optional YK-88SN (1.8 kHz) or YK-88CN (270 Hz) filters can be installed for improved selectivity.
- The TS-130V is a low-power version (25W PEP) compared to the TS-130SE/S (200W PEP).
