Installation Manual for TRIO Tunga LED Outdoor Wall Light 2229691XX
Quick installation guide for the TRIO Tunga LED outdoor wall light (2229691XX). Includes wiring instructions, sensor adjustment settings, and technical specifications.
Quick answers from the manual
Quick answer
- The TRIO Tunga 2229691XX is an outdoor LED wall light. Installation requires turning off the main power, drilling holes with 82mm spacing, connecting the L/N/Earth wires, and mounting the unit. The sensor settings for time and lux can be adjusted via dials on the device. p. 2
Key actions
- Turn off main power before installation. p. 2
- Adjust sensor time and lux settings. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V~50Hz | Operating voltage | p. 2 |
| Power | 3.5W | LED power consumption | p. 2 |
| IP Rating | IP54 | Ingress protection | p. 2 |
Show 1 more answers Show less
Where to find it in the PDF
- Safety Warnings p. 1
- Installation and Specs p. 2
- Energy Efficiency p. 3
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential installation and configuration instructions for the TRIO Tunga LED outdoor wall light. Before beginning any installation work, ensure the main power supply is switched off to prevent electrical shock. The device is rated IP54, making it suitable for outdoor use.
Installation
- Power Off: Ensure the main circuit breaker is turned off before starting.
- Preparation: Prepare the mounting surface by drilling holes according to the dimensions provided in the diagram (82mm spacing).
- Wiring: Connect the power supply wires to the terminal block. Ensure the Live (L), Earth (Ground), and Neutral (N) wires are connected correctly.
- Mounting: Secure the light fixture to the wall using the provided screws and wall plugs.
- Final Check: Ensure all seals are properly seated to maintain the IP54 rating.
Sensor settings
The light features an integrated sensor that can be adjusted using the dials located on the unit:
- Time: Adjusts how long the light stays on after motion is detected (range: 10 seconds to 8 minutes).
- Lux: Adjusts the ambient light threshold at which the sensor activates (range: 2 to 2000 LUX).
Technical specifications
- Model: 2229691XX
- Voltage: 230V~50Hz
- Light Source: LED 3.5W
- Protection Class: IP54
Practical help
Common problems
Light does not turn on
Check if the main power is switched on and verify that the wiring connections are secure.
Sensor does not trigger
Adjust the LUX dial to a higher setting if it is too bright outside, or check the time setting.
Before use
- Ensure the main power supply is disconnected.
- Verify the mounting surface is suitable for the fixture.
- Check that all necessary tools (drill, screwdriver) are available.
- Confirm the IP54 seal is intact during installation.
Show more Show less
Images and diagrams

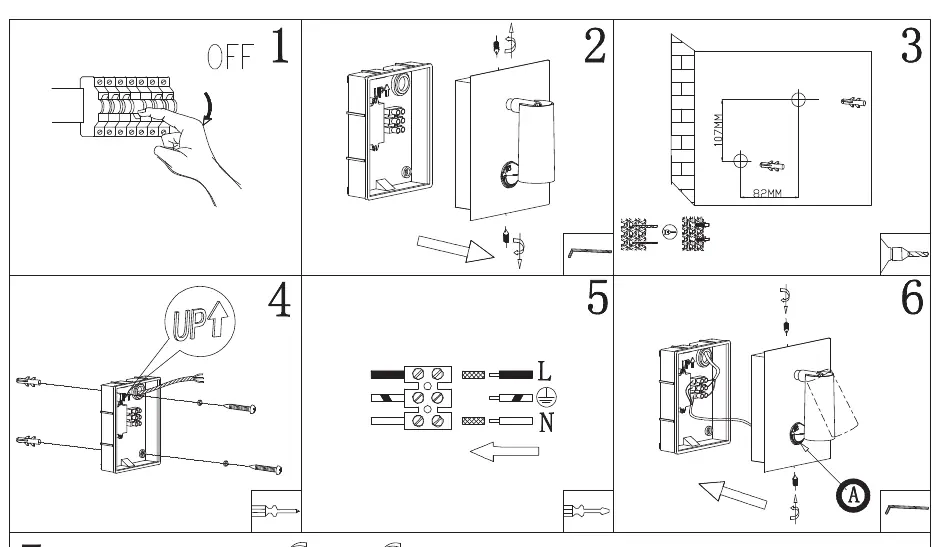

- The diagram shows a 7-step installation process.
- Step 7 illustrates the adjustment dials for time and lux sensitivity.
Model compatibility
- Designed for outdoor wall mounting.
