Maxax 2418-1W Outdoor Wall Lantern Installation Manual
Installation guide for the Maxax 2418-1W outdoor wall lantern. Includes wiring instructions, parts list, and safety warnings for dusk-to-dawn sensor operation.
Quick answers from the manual
Quick answer
- The Maxax 2418-1W is an outdoor wall lantern with a built-in dusk-to-dawn sensor. Installation requires turning off the main power, connecting wires according to the diagram, and securing the glass shade. p. 2
Key actions
- Turn off power at the main circuit breaker before starting installation. p. 2
First start
- Install the bulb (not included), attach the glass shade, and secure the iron support sheet with screws. p. 2
Show 1 more answers Show less
Where to find it in the PDF
- Installation Instructions p. 2
Table of contents
Quick guide from the manual
The Maxax 2418-1W is an outdoor wall lantern equipped with a built-in dusk-to-dawn sensor. Installation requires basic electrical knowledge; it is highly recommended to hire a qualified electrician. Always ensure the power is turned off at the main circuit breaker before beginning any work.
Safety Warnings
- Electrical Safety: Turn off electricity at the main circuit breaker before starting installation. Ensure all wiring meets safety standards.
- California Proposition 65: This product contains lead, a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. Do not place the product in your mouth and wash hands after handling.
- Fragile Components: The glass shade is fragile. Handle with care during installation.
- Control Devices: If using special control devices with this fixture, follow instructions carefully to ensure compliance with N.E.C. requirements.
Parts Included
- T185 light bulb (Not included) - Qty: 1
- Glass lampshade - Qty: 1
- Iron support sheet - Qty: 1
- Phillips flat head screws (various sizes) - Qty: 6 total
- Wire caps - Qty: 2
- Green ground screw - Qty: 1
Installation and Assembly
Follow the wiring connection diagram provided in the manual to connect the electrical circuit. Ensure wires are securely fastened using the provided wire caps. The assembly sequence involves attaching the bulb, placing the glass shade, and securing the iron support sheet using the provided screws.
Sensor Operation
The fixture features a built-in sensor photocell. This allows for automatic dusk-to-dawn operation, turning the light OFF at sunrise/daytime and ON at sunset/night.
Practical help
Common problems
Light does not turn on
Ensure the dusk-to-dawn sensor is not obstructed and the bulb is properly installed.
Risk of fire
Ensure all wires meet safety standards and connections are secure before turning on the power.
Before use
- Turn off electricity at the main circuit breaker
- Verify all parts are present according to the parts list
- Obtain a compatible T185 bulb (not included)
- Consult a qualified electrician for installation
- Ensure the installation area is suitable for outdoor use
Show more Show less
Specs in practice
- Dusk-to-dawn sensor
- Automatically turns the light OFF at sunrise/daytime and ON at sunset/night.
Images and diagrams
- The wiring diagram illustrates the connection of the fixture wires to the wall junction box using wire caps.

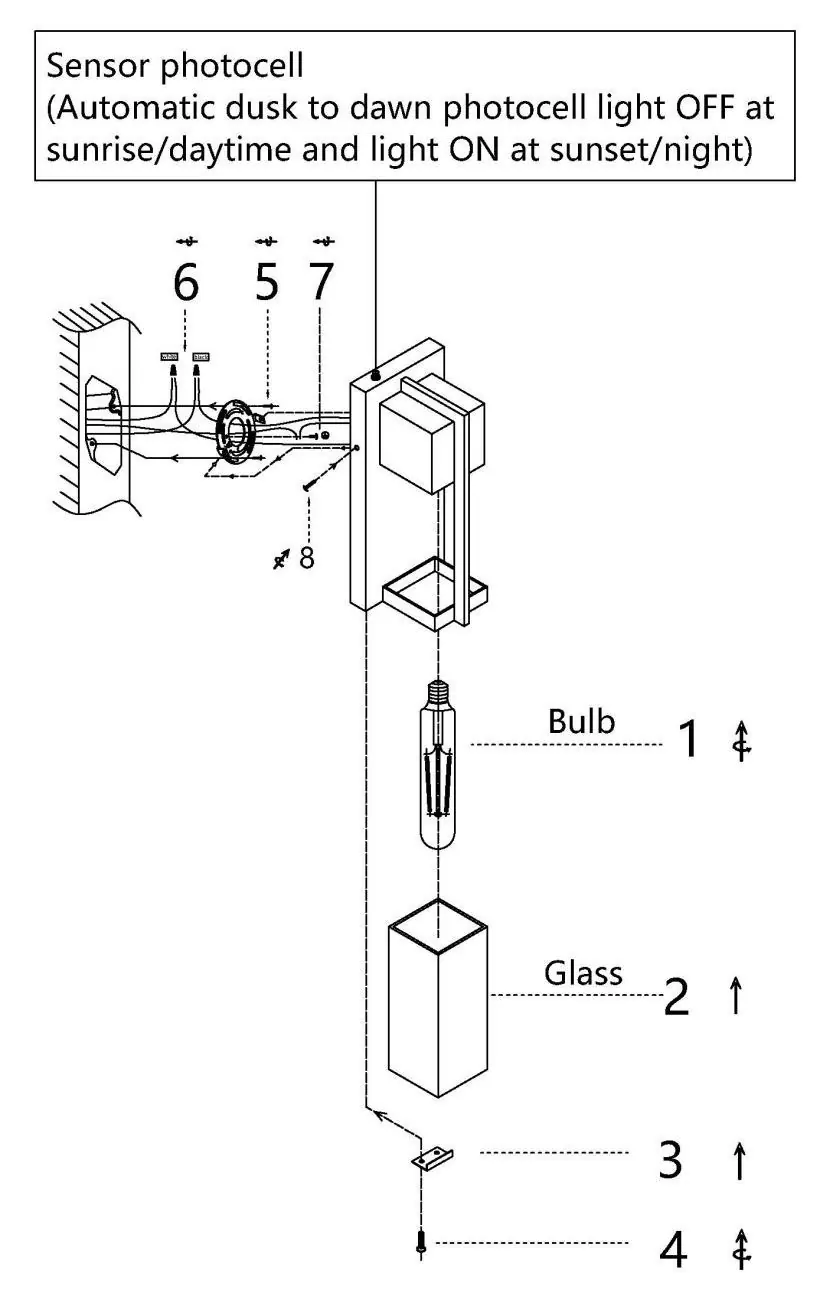

- The assembly diagram shows the sequence of installing the bulb, glass shade, and support sheet.
Model compatibility
- Requires a T185 light bulb (not included)
- Compatible with standard electrical circuits
