Assembly Instructions for Veikous 12x16ft Aluminum Gazebo
Comprehensive assembly guide for the Veikous 12x16ft Aluminum Gazebo. This manual includes a complete parts list, required tools, step-by-step installation procedures, and essential anchoring instructions for both cement and grassy...
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Veikous 12x16ft Aluminum Gazebo requires at least three people for safe assembly. It is critical to not fully tighten screws until the entire assembly is complete to ensure proper alignment. Before starting, verify all parts against the parts list and ensure you have the necessary tools.
Tools and assembly requirements
The following tools are required for assembly (not included in the box):
- Drill
- Allen key
- Stepladder (6.5ft or more)
- Phillips screwdriver
- Safety hat
- Safety goggles
- Gloves
Assembly steps
The assembly process consists of 29 steps, starting from the base and moving to the roof structure:

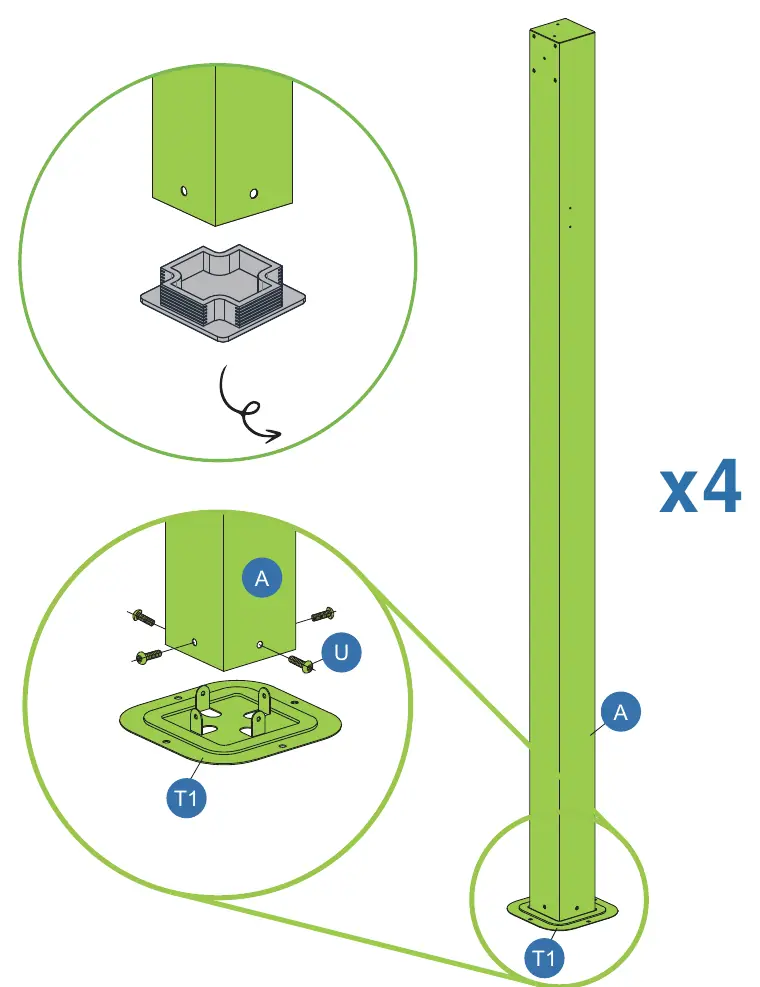

- Base and Posts: Attach the base plates (T1) to the bottom of the posts (A) using screws (U).

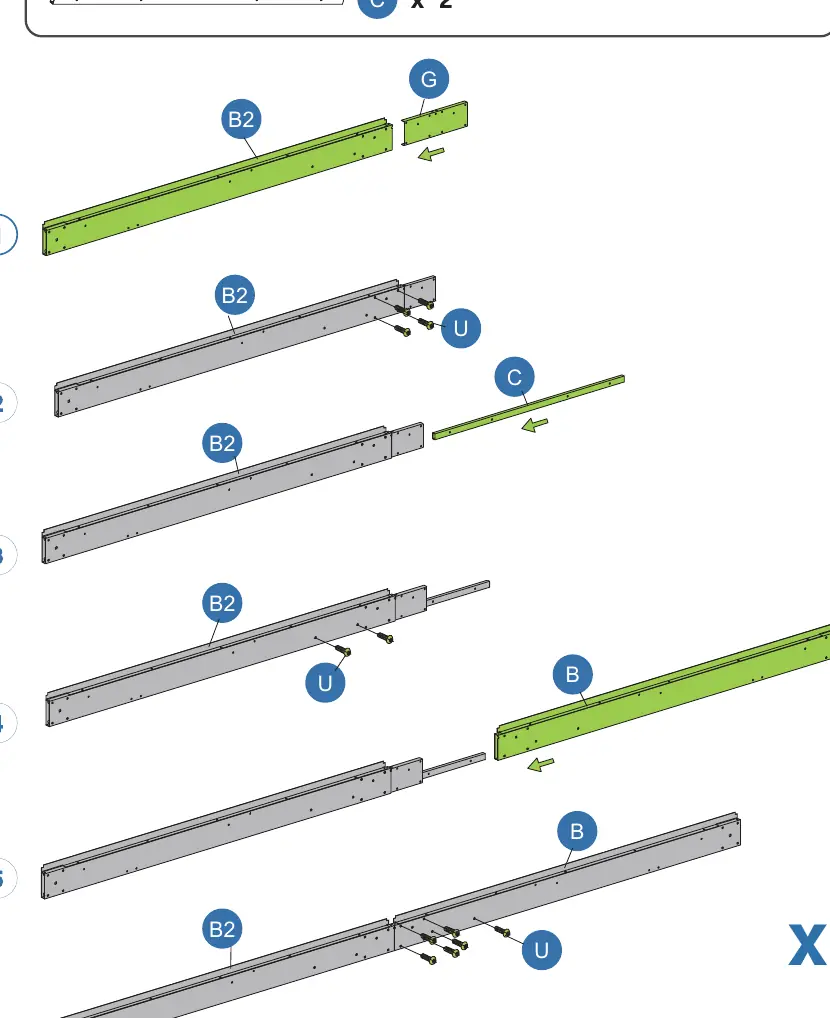

- Frame Assembly: Connect the frame beams (B, B1, B2) using connectors (G, C) and secure with screws (U).

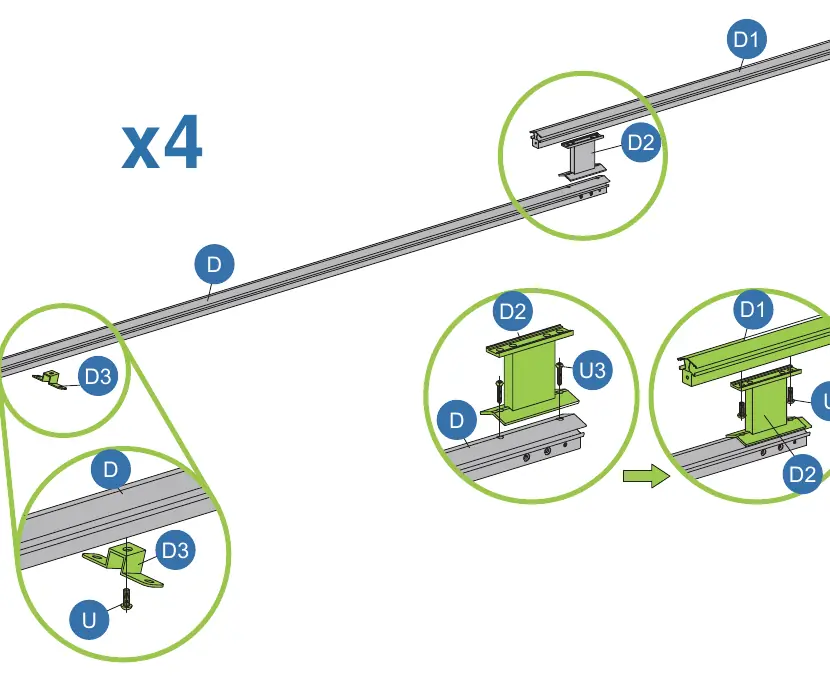

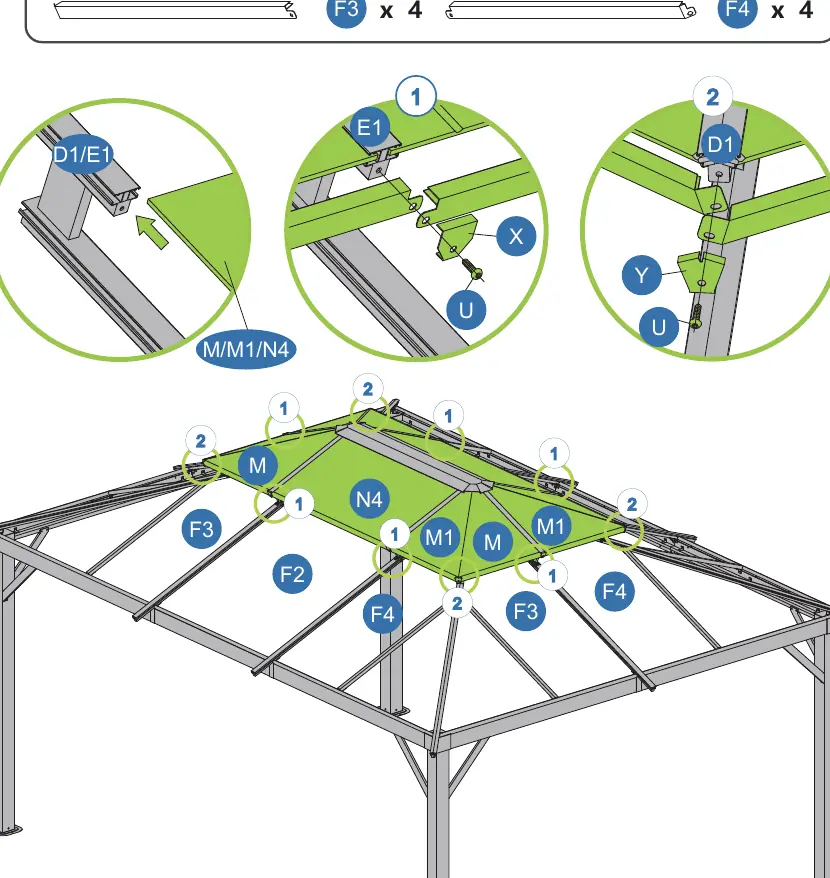

- Roof Structure: Assemble the roof support beams (D, D1, D2, D3) and install the roof panels (M, M1, N, N1, N2, N3, N4) according to the specific step diagrams.
- Curtains and Netting: Install the hooks (Z) into the outer track and hang the netting (Net).
Anchoring and stability

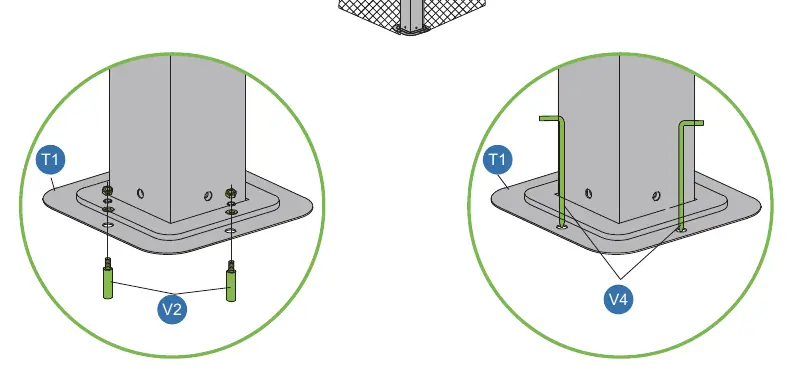

To improve wind resistance, you must secure the gazebo to the ground. The installation method depends on the surface:
- Cement surfaces: Use the provided expansion screws (V2) to secure the base plates (T1) to the concrete.
- Grassy surfaces: Use the provided ground nails (V4) to secure the base plates (T1) into the ground.
Failure to install these anchors may cause the gazebo to topple in strong winds.
Customer support

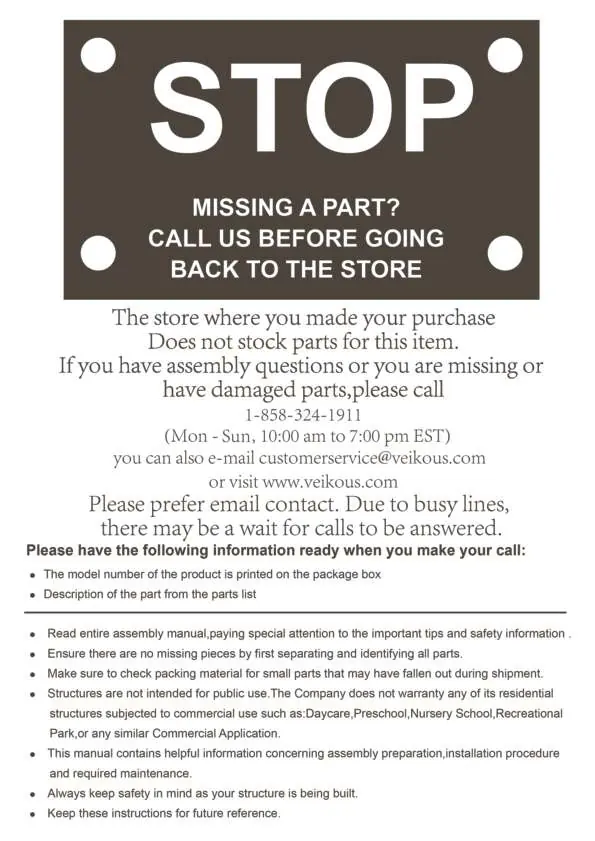

If you have missing or damaged parts, do not return the item to the store. Please contact Veikous customer service:
Phone: 1-858-324-1911 (Mon - Sun, 10:00 am to 7:00 pm EST)Email: [email protected]: www.veikous.com
Official resources from the manual
Practical help
Common problems
Missing or damaged parts
Do not return to the store. Call 1-858-324-1911 or email [email protected] with your order number and part description.
Gazebo instability in wind
Ensure expansion screws (for cement) or ground nails (for grass) are installed as per step 29.
Before use
- Verify all parts against the parts list provided in the manual
- Ensure at least 3 people are available for assembly
- Prepare required tools: Drill, Allen key, 6.5ft+ stepladder, Phillips screwdriver, safety gear
- Clear a large, flat area for assembly
- Remove plugs at the bottom of posts (A) before assembly
Images and diagrams
- Exploded views show the connection points for each part
- Step-by-step diagrams indicate screw locations and part orientation
- Green circles highlight specific connection points or adjustments
Model compatibility
- Not intended for commercial use (e.g., daycare, school, recreational park).
