User Manual for Velit 2000R Rooftop Air Conditioner

Quick Guide

The Velit 2000R is a rooftop DC air conditioner designed for camper vans. This manual covers essential safety, installation, and operation procedures. Key highlights include:

• Installation: Requires a 14x14 inch roof opening and must be performed by qualified personnel.
• Operation: Features Sleep, Eco, Cooling, and Turbo modes, adjustable via the control panel or remote.
• Troubleshooting: Includes an error code table to diagnose common issues like low voltage or sensor errors.
• Maintenance: Keep the inlet filter clean and monitor system pressure if cooling performance drops.

Safety Information

For your safety and the best performance, please adhere to the following:

• Installation and repairs must be performed by qualified personnel.
• Do not modify the unit.
• Keep out of reach of children.
• Do not use in or near flammable environments.
• Do not use if the ambient temperature is lower than 40°F (4°C) to prevent frost inside the unit.
• Do not power wash the unit or use detergents for cleaning.

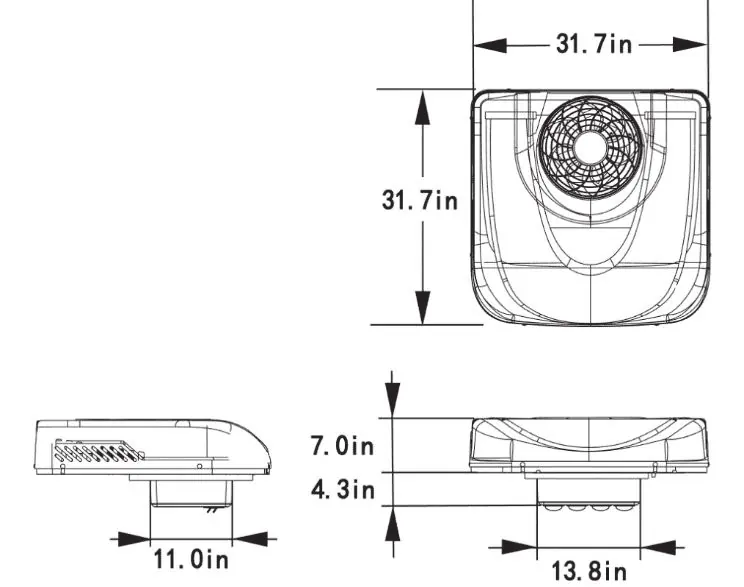

Specifications

The Velit 2000R operates on 12V or 24V DC power.

• Cooling Capacity: 8000BTU / 2200W
• Refrigerant: R134a (750g)
• Operating Temperature: 38-125°F (0-52°C)
• Noise Level: 55dB (Eco mode) to 65dB (Boost mode)
• Weight: 66lb

Installation

Follow these steps for proper installation:

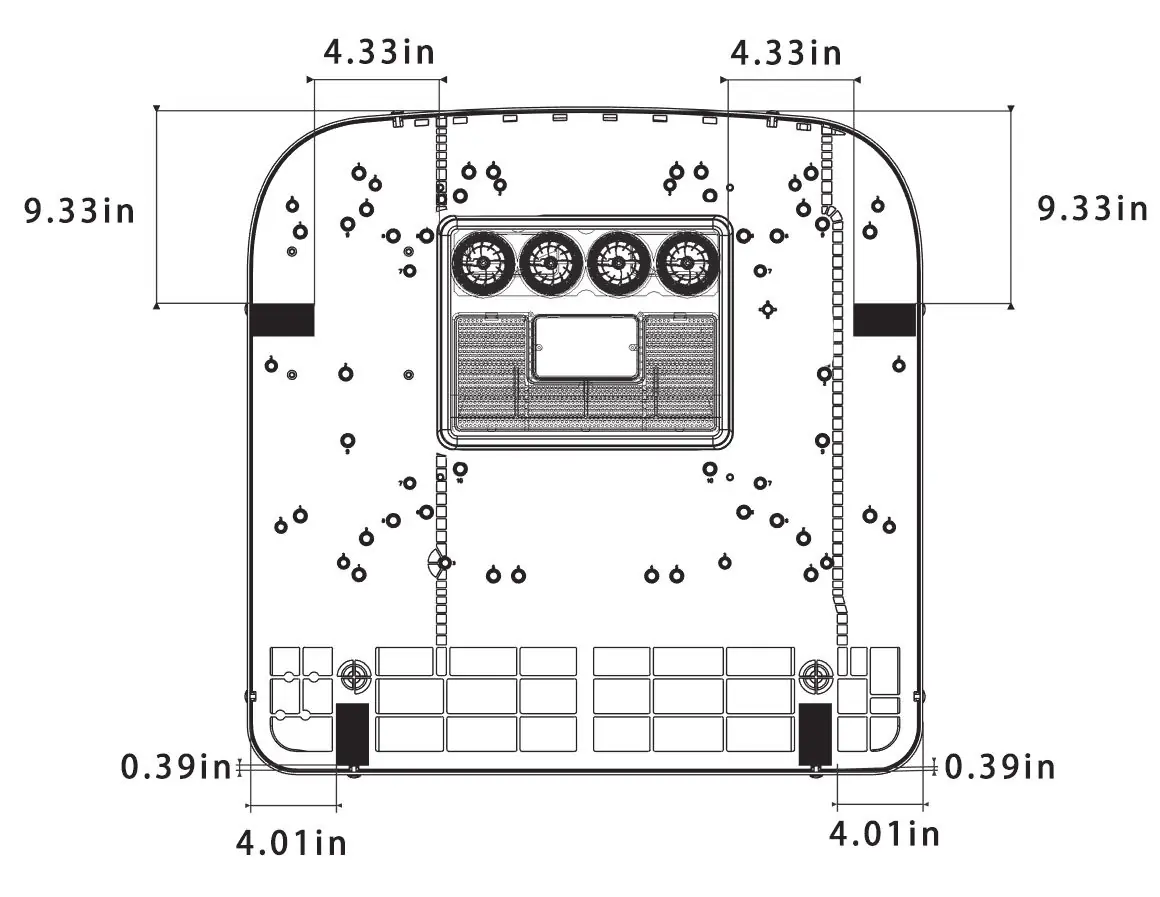

1. Location: Ensure the roof opening is 14x14 inches. Check for obstructions.
2. Sealing: Attach the sealing gasket to the roof opening. Apply sealant to the bottom of the gasket and the edge where the unit contacts the roof.

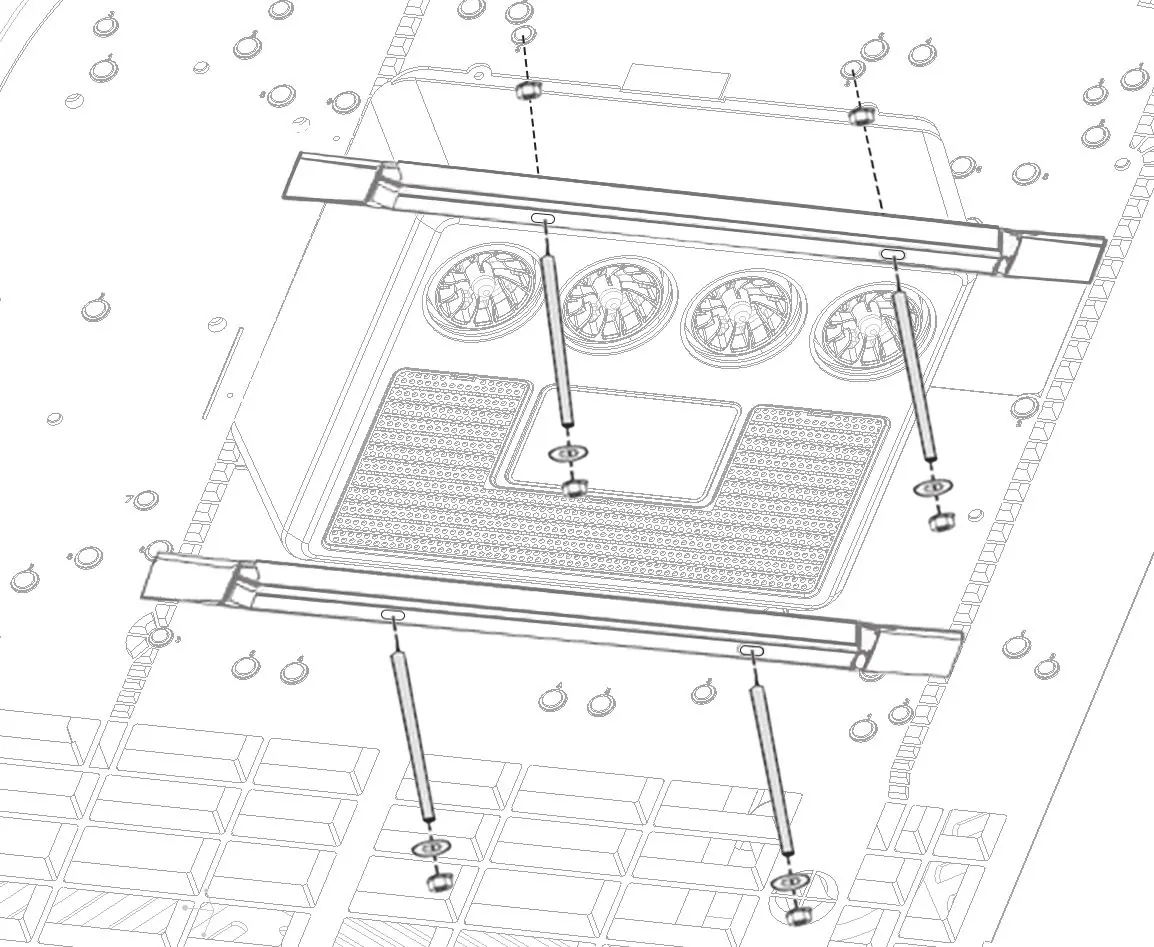

3. Mounting: Place the unit over the opening. Secure it using the provided M8 threaded rods and anti-slip nuts. Tighten to 4.5-5.6NM (3.3-4.2 lb. ft). Do not overtighten.
4. Wiring: Connect the power cable to the battery, ensuring fuse boxes are installed on both positive and ground lines.
5. Decor Panel: Secure the interior decor panel using the provided self-tapping screws and washers.

Operation

The unit can be controlled via the main control panel or the remote control.

• Modes: Switch between Sleep, Eco, Cooling, and Turbo.
• Fan Speed: Adjustable separately from the cooling mode.
• Temperature: Adjustable via the control panel buttons.
• Reset: Long press the power button for ten seconds to reset to factory defaults.

Troubleshooting

If the unit displays an error code, refer to the following:

• E0: Ambient temperature sensor issue. Check the white 2-pin connector.
• E4/EL: Low voltage. Check system and battery voltage (should be above 10.5V).
• E2: Over-current. Check for blocked air inlets or short circuits.
• Unit not cooling: Clean the inlet filter and check the system pressure.
