User Manual for VEVOR 100W Solar Panel
Quick guide for the VEVOR 100W solar panel. Includes installation, wiring diagrams for 12V systems, safety warnings, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This solar panel is designed for outdoor use, including mounting on roofs, eaves, or balconies. It is a monocrystalline panel with a rated power of 100W. Before installation, ensure the area is well-ventilated and that you have all necessary accessories, such as a charge controller and battery, which are not included.
Safety Warnings
- Electrical Safety: High voltage is present inside. Disconnect all power sources before servicing. Do not touch live terminals.
- Handling: Do not stand on, step on, bend, or pull the solar panel. Do not place metal objects between the panel and the device being charged.
- Environment: Do not use in areas with high humidity, near water, or in snow. The USB charging port is not waterproof.
- Operation: If the panel shows signs of damage or exposed wiring, stop using it immediately. Do not cover or shade the panel during operation to avoid overheating and fire risks.
- Children: Keep the product and its cords out of reach of children.
Installation and Setup
The panel should be fixed using reliable mounting methods; do not rely on adhesives. Installation must be performed by a qualified electrician in accordance with local regulations.
Operation and Wiring
To charge a 12V battery, you must use a 12V charge controller. Ensure the battery voltage is above 10.8V before connecting to the controller, and ensure the safe charging voltage is below 13.86V. Connect the solar panel to the charge controller, then connect the controller to the battery and your DC load.
Technical Specifications
- Rated Power: 100W
- Solar Cell Type: Monocrystalline
- Open-Circuit Voltage (Voc): 21.3V DC
- Short Circuit Current (Isc): 6.1A
- Operating Voltage: 18V DC (with controller, compatible with 12V)
- Working Current: 5.8A

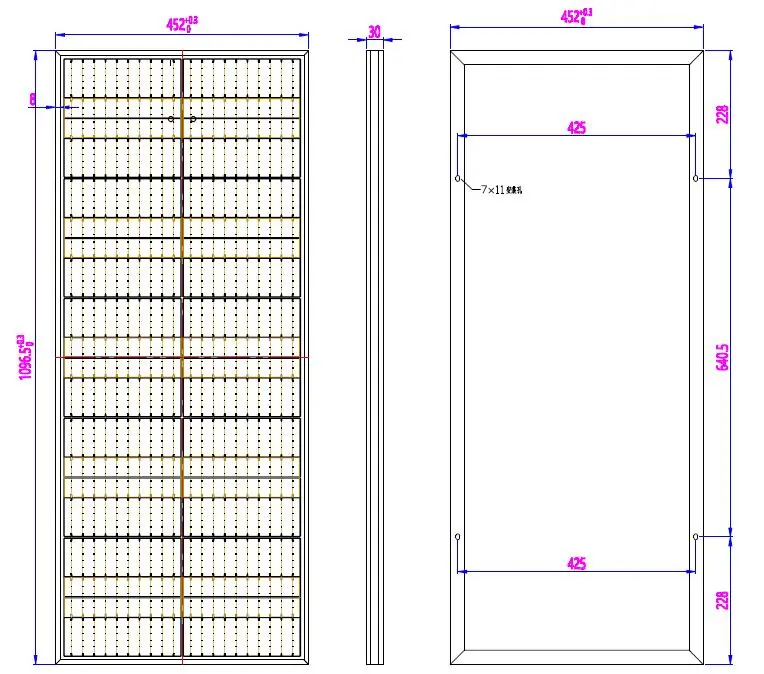

- Dimensions: 1095 x 450 x 29 mm

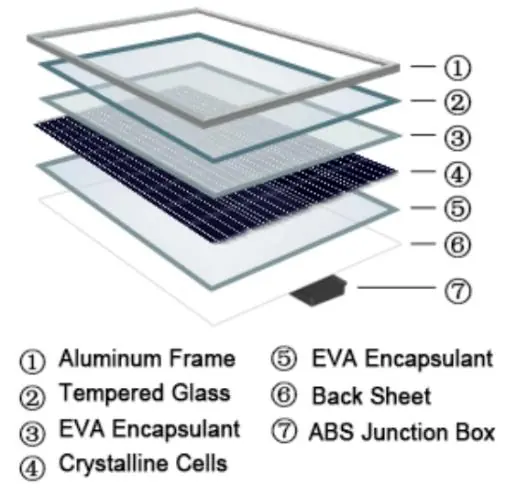

Construction
The panel consists of seven layers: Aluminum Frame, Tempered Glass, EVA Encapsulant, Crystalline Cells, EVA Encapsulant, Back Sheet, and an ABS Junction Box.
Disposal
This product is subject to European Directive 2012/19/EU. Do not dispose of it with normal domestic waste; take it to a designated collection point for recycling electrical and electronic equipment.
Manufacturer information
VEVOR
Practical help
Common problems
Low charging rate
Charging speed depends on sunlight intensity and angle. Ensure the panel is not covered or shaded.
Heat generation during charging
This is a normal characteristic of the product and not a malfunction.
Liquid or debris in USB port
Disconnect the solar panel immediately to prevent electric shock or fire.
Before use
- Ensure battery voltage is above 10.8V before connecting to the charge controller.
- Verify the battery safe charging voltage is below 13.86V.
- Check the panel for any physical damage or exposed wiring.
- Ensure the installation area is well-ventilated.
- Confirm you have a compatible 12V charge controller.
Specs in practice
- Open-Circuit Voltage (Voc)
- 21.3V DC, the maximum voltage the panel produces when not connected to a load.
- Operating Voltage
- 18V DC, the voltage output when connected to a 12V system via a controller.
Images and diagrams
- Wiring diagram: Shows the connection sequence from the solar panel to the charge controller, then to the battery and DC output load.

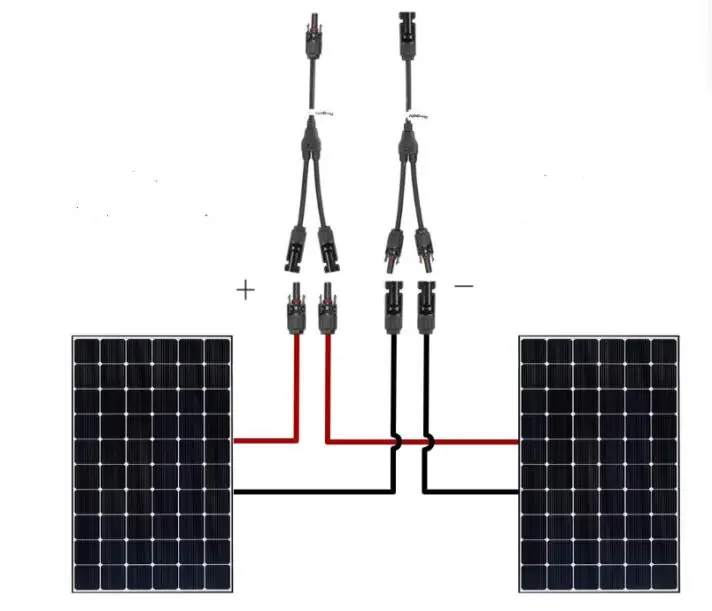

- Parallel connection: Shows how to connect two 100W panels using a Y-connector to achieve a 200W parallel configuration.
Model compatibility
- Compatible with 12V battery systems.
- Requires an external 12V charge controller for battery charging.
