User Manual for Vevor 100W/200W/400W Fixed Style Solar Panel

Quick Guide

This manual provides instructions for the Vevor Fixed Style Solar Panels, available in 100W, 200W, and 400W models. These panels are designed for outdoor use and require a charge controller and battery (not included) for operation. Ensure you read all safety warnings before installation.

Safety Warnings

• Do not continue to use the product if it has sustained heavy impact or damage, as this may cause electric shock.
• Do not disassemble or modify the product.
• Do not place metal objects between the solar panel and a smartphone, as this may cause a fire.
• Ensure the solar panel and the device being charged can be disconnected immediately in case of an emergency.
• Disconnect the adapter cable and the device being charged before cleaning the panel.
• Keep the product away from children.
• Installation operations are prohibited during thunderstorms.
• Ensure positive and negative poles are connected correctly to prevent short circuits.
• Confirm that the installation location is unobstructed and well-lit.

Operation and Wiring

The solar panel requires a charge controller and a battery to function. These accessories must be purchased separately by the consumer. For a 12V battery system, ensure the battery voltage is higher than 10.8V before connecting to the charge controller. The safe charging voltage for the battery should be below 13.86V.

Parallel Connection Configurations

Multiple solar panels can be connected in parallel to increase power output. The manual provides specific diagrams for:

• 100W x 2 parallel connection
• 100W x 4 parallel connection
• 200W x 2 parallel connection
• 400W x 2 parallel connection

Note: The parallel lines/cables required for these connection scenarios must be purchased separately by the consumer.

Product Structure

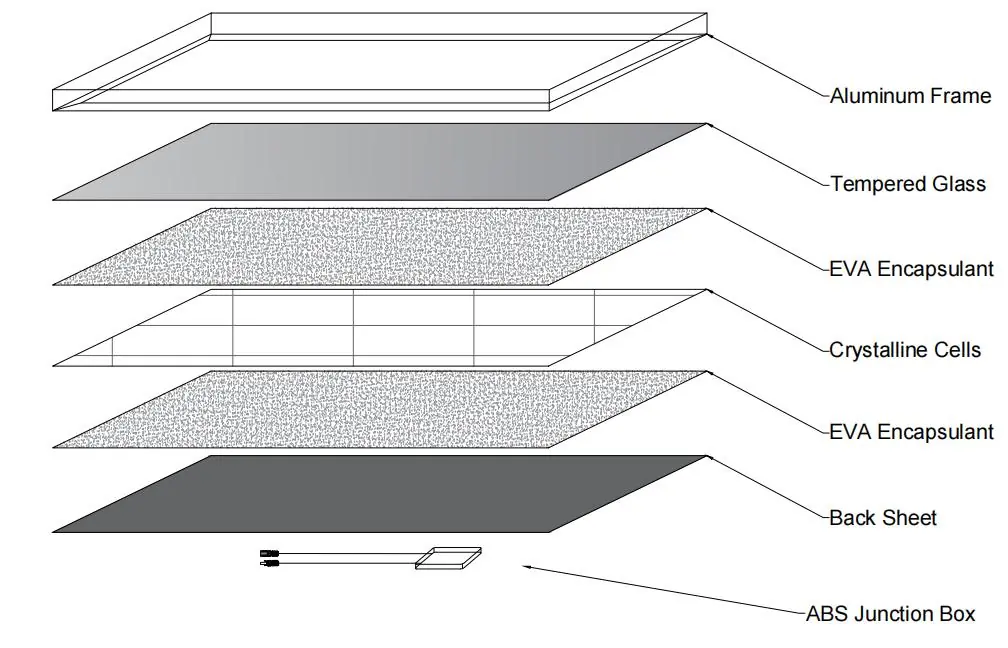

The solar panel consists of several layers, including an aluminum frame, tempered glass, EVA encapsulant, crystalline cells, a back sheet, and an ABS junction box.

Dimensions

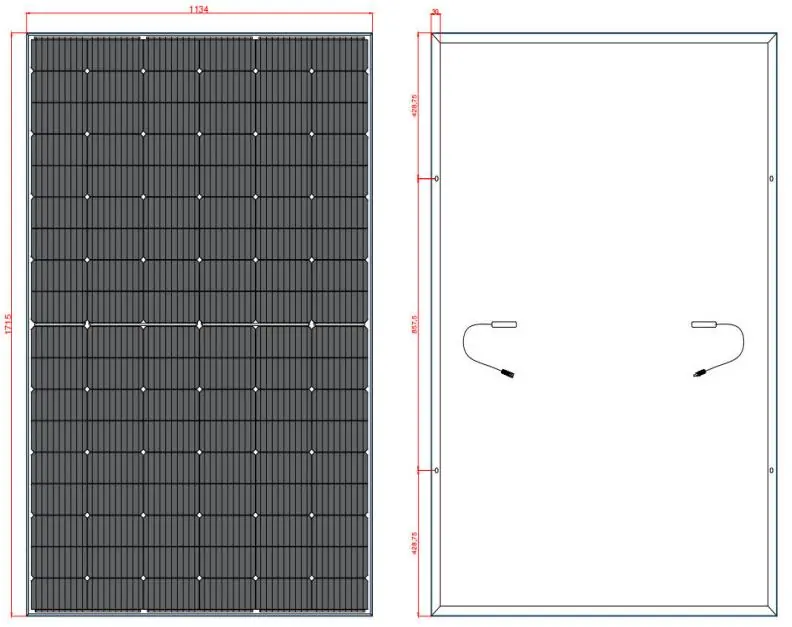

The manual includes detailed dimension figures for the 100W, 200W, and 400W models, showing the physical layout and mounting points.

Technical Specifications

The panels are tested under standard conditions. Key parameters include:

• Battery cell Type: Single crystal silicon
• Protection Grade: IP65
• Operating Temperature: -20 to 65 degrees Celsius
• Conversion Efficiency: Greater than or equal to 23%

Specific voltage and current ratings (Open-circuit Voltage, Short circuit Current, Operating Voltage, Operating Current) are provided for each model (100W, 200W, 400W) in the technical data tables.
