Tools / Pressure Washers
User Manual for VEVOR 180D Gas Pressure Washer
Quick guide for the VEVOR 180D gas pressure washer. Includes setup, operation, maintenance, safety warnings, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The VEVOR 180D is a gas-powered pressure washer. Before starting, ensure it is on a level surface, filled with 600ml of oil and 3L of gasoline, and connected to a continuous water supply. p. 10, 13, 17
Key actions
- Check oil level before starting p. 12
- Connect water supply before starting p. 17
First start
- Place on level surface, add 600ml oil, add 3L gas, connect hoses, turn on water, set switches to ON, pull starter handle. p. 13, 17
Problems and fixes
Machine does not start
Check fuel valve, engine switch, fuel level, spark plug, or flooded engine.
p. 37Maintenance and reset
- Change engine oil every 20 hours or 6 months. p. 24
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Engine Power | 7HP | Engine output | p. 10 |
| Max Pressure | 3600 PSI | Maximum operating pressure | p. 10 |
Where to find it in the PDF
- Safety Instructions p. 4, 5, 6, 7
- Parameter List p. 10
- Assembly and Operation p. 13, 14, 15, 16
- Maintenance p. 22, 23, 24, 25
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The VEVOR 180D is a gas-powered pressure washer designed for heavy-duty cleaning. Before operating, ensure the machine is on a level surface, the oil level is correct (600ml), and the fuel tank is filled with fresh unleaded gasoline. Always perform a pre-operation inspection to check for leaks, loose parts, or damage.
Safety Instructions
Important: Read all instructions carefully to avoid bodily injury and damage to the appliance. Never modify the machine. Always wear head, eye, and ear protection. Use non-skid gloves and work boots. High-pressure jets are dangerous; never aim at people, animals, or electrical equipment. Do not run the engine indoors due to carbon monoxide poisoning risks.
Assembly and Setup
Place the pressure washer on a firm, level surface. Check the oil level (600ml required) and fill the gas tank (3L capacity). Connect the high-pressure hose to the spray gun and the pressure outlet. Connect a water supply to the water inlet and turn it on to fill the hose and remove debris.
Operation
Nozzle Selection: The unit comes with five color-coded nozzles:
- Red (0°): Fine, powerful jet for metal or concrete. Do not use on wood.
- Yellow (15°): Powerful spray for intense cleaning of small areas.
- Green (25°): Spray pattern for intense cleaning of larger areas.
- White (40°): Less powerful stream for general cleaning.
- Black: Low-pressure nozzle for applying detergents.
Start-up: Ensure water is flowing. Turn the motor switch to ON, fuel valve to ON, and choke lever to OFF. Pull the starter handle until resistance is felt, then pull hard. Once started, return the choke lever to the ON position and regulate speed with the throttle.
Maintenance

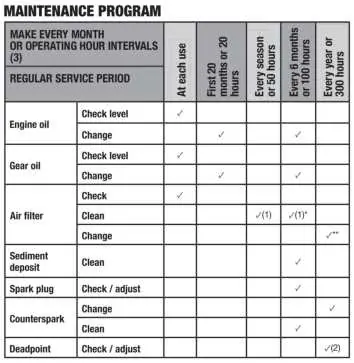

Regular maintenance is essential for safety and performance. Follow the maintenance program for checking engine oil, gear oil, air filter, spark plug, and sediment deposits. Always ensure the engine is off and cool before performing maintenance.
Troubleshooting
If the machine does not start, check the fuel valve, engine switch, fuel level, and spark plug. If the engine has low power, check the air filter and fuel quality. If performance is low, check for air in the hoses or clogged filters.
Manufacturer information
VEVOR
Practical help
Common problems
Machine does not start
Check if the fuel valve is OFF, engine switch is OFF, fuel tank is empty, or if the spark plug is defective/flooded.
Engine has little power
Check if filter elements are clogged or if fuel is old/damaged.
Low performance of pressure washer
Check for air in fuel hoses, incorrect ignition timing, clogged air filter, or worn piston/cylinder.
Before use
- Check for oil or gasoline leaks
- Ensure all nuts, bolts, screws, and hoses are tight
- Remove excess dirt or debris around the starter muffler and recoil
- Check discharge hoses for damage and proper installation
- Check engine oil level (600ml required)
- Check fuel level
Specs in practice
- Engine Power
- 7HP
- Max Pressure
- 3600 PSI
- Fuel Tank Capacity
- 3.0 L
Images and diagrams
- The parts diagram identifies the spray gun, nozzles, high-pressure hose, engine, fuel tank, and controls.
Model compatibility
- Use unleaded gasoline (86 octane or higher).
- Use 4-stroke automotive detergent oil (SAE-10W-30).
