Generac 2000PSI High Pressure Washer Owner's Manual

Quick guide from the manual

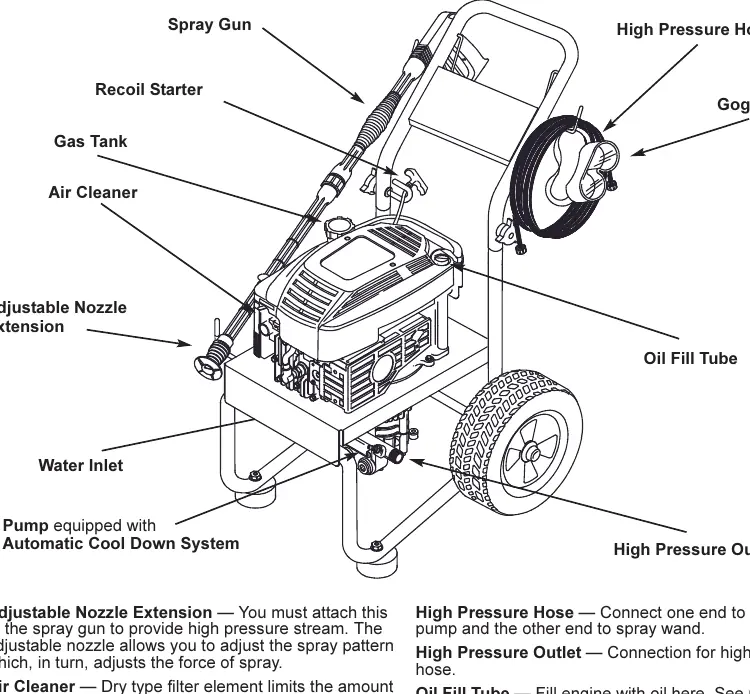

This manual provides essential instructions for the safe assembly, operation, and maintenance of the Generac 2000PSI High Pressure Washer (Model 1040-2). Before operating, ensure you have read all safety rules, checked the oil and fuel levels, and purged the air from the system. The unit is designed for outdoor use only and requires a water source capable of providing at least 2 gallons per minute.

Assembly

The pressure washer comes partially assembled. Follow these steps to prepare the unit:

• Handle Assembly: Align the holes on the top of the handle with the bottom section and secure using the provided carriage bolts and knobs.
• Hose Connection: Attach the high-pressure hose to the pump outlet and the spray gun. Tighten all connections by hand.
• Engine Preparation: Place the unit on a level surface. Add high-quality SAE 30 oil to the engine crankcase until it reaches the FULL mark on the dipstick. Add fresh, clean unleaded gasoline to the fuel tank.
• Water Supply: Connect a garden hose to the water inlet. Inspect the inlet screen for debris before connecting.

Operation

To start and operate the pressure washer:

• Starting: Move the throttle control to the FAST position and the choke lever to the CHOKE position. Pull the recoil starter handle until the engine starts. Once running, move the choke lever to the RUN position.

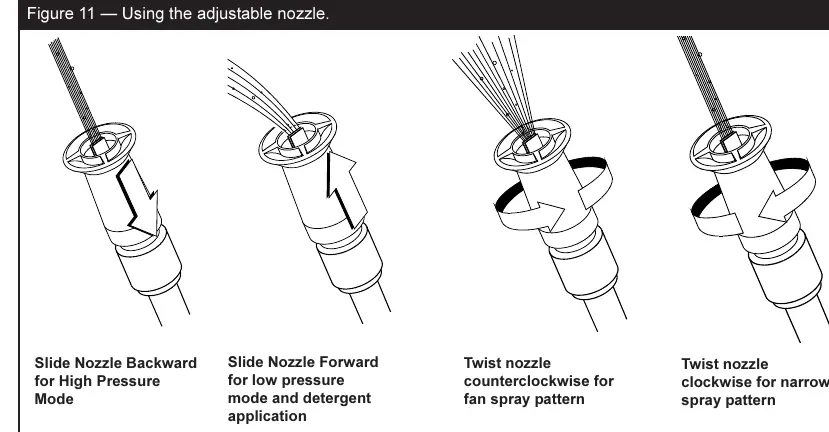

• Pressure Adjustment: The adjustable nozzle allows for different spray patterns. Slide the nozzle backward for high-pressure mode and forward for low-pressure mode (required for detergent application). Twist the nozzle to adjust the spray pattern width.
• Stopping: Move the throttle control to the SLOW position, then to the STOP position. Squeeze the trigger on the spray gun to relieve pressure in the hose before disconnecting.

Maintenance

Regular maintenance is required to ensure longevity:

• Before Each Use: Check engine oil level, inspect the water inlet screen, check for hose leaks, and ensure the detergent inlet hose is clear.
• Cleaning the Nozzle: If the nozzle becomes clogged, use the provided wire tool to clear debris.
• Storage: If storing for more than 30 days, flush the chemical injection system with clean water, empty the pump of liquids by pulling the recoil handle, and store in a clean, dry area.

Troubleshooting

If the unit fails to produce pressure, check the water inlet, ensure the nozzle is in the correct mode, and inspect hoses for kinks or leaks. If the engine bogs down under load, ensure the throttle is set to FAST. If the engine fails to start, verify the oil level, fuel level, and spark plug connection.
