Livestock Stand 47x23 inch User Manual

Quick guide from the manual

The Vevor Livestock Stand is a grooming and feeding station designed for goats. This manual provides instructions for assembly, headband width adjustment, and safe operation. Always ensure the stand is assembled on a flat, level, and stable surface before use.

Safety Instructions

WARNING: Read all instructions before using this product. Failure to do so can result in serious injury.

• Assemble only according to these instructions.
• Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
• Keep the assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble if tired or under the influence of alcohol, drugs, or medication.
• Assemble on a flat, level, hard, and smooth surface.
• DO NOT SIT OR STAND ON THIS ITEM.
• This product is not a toy. Do not allow children to play with or near this item.
• Do not exceed specified weight capacities.
• Inspect before every use; do not use if parts are loose or damaged.

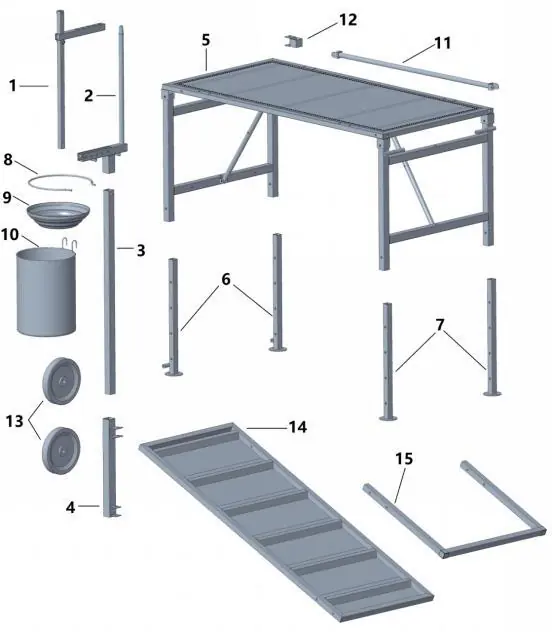

Parts List

The following parts are included:

• 1: Movable rack
• 2: Fixed rack
• 3: Long pole
• 4: Fixed rod
• 5: Tabletop
• 6: Adjustable leg A (x2)
• 7: Adjustable leg B (x2)
• 8: Circular hoop
• 9: Basin
• 10: Tool bag
• 11: Connecting rod
• 12: Square tube
• 13: Wheel (x2)
• 14: Ramp
• 15: U-shaped pole
• Hardware: Quick-release pins (A, E), Plastic knobs (B), Screws (C, F, G), Nuts (D)

Assembly Steps

Follow these steps to assemble your livestock stand:

1. Step 1: Open the support legs on both sides of the platform. Secure the support round bars and support legs with pins (11). Secure the connecting rod (5) and support bars with pins (11).

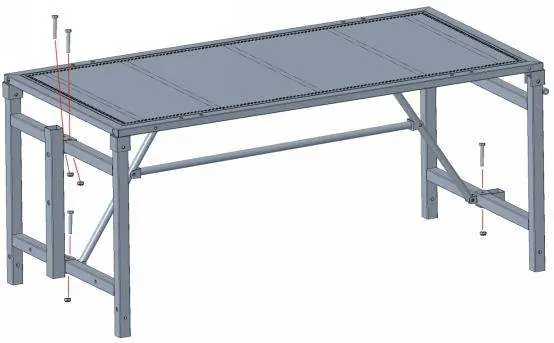

2. Step 2: Secure the fixing rod (4) and the square tube (12) to the support leg of the platform using screws (C) and nuts (D).

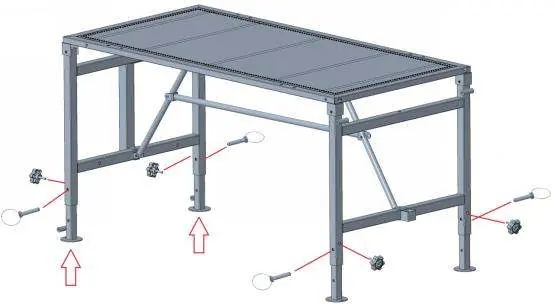

3. Step 3: Insert adjustable legs A (6) and B (7) into the support legs and fix them with pins (A) and plastic knobs (B). Note: Support feet have different specifications; install according to the diagram.
4. Step 4: Insert the long pole (3) into the fixed tube (4) and secure it with the plastic knob (B).
5. Step 5: Secure the goat head mounting bracket (2) to the long pole (3) using screw (C) and knob (B). Insert the movable rack (1) into the bracket and secure it with a pin (A).
6. Step 6: Secure the casters (13) to the support legs using screws (G) and nuts (D).
7. Step 7: Insert the circular hoop (8) through the mounting bracket and tighten with screws (D). Place the basin (9) on the hoop. Hang the tool bag (10) on the platform.
8. Step 8: Secure the U-shaped pole (15) to the ramp (14) with screws (F) and nuts (D).
9. Step 9: Secure the ramp (14) to the tabletop (5) with pins (E).

Headband Width Adjustment

The fixed and movable racks are equipped with 5 adjustment positions. The smaller the number, the narrower the spacing. Ensure upper and lower positions are aligned to maintain a vertical state. If unsure, start with the middle position.

Usage

Open the bracket and guide the goat to the fixed rack. Adjust the height of the fixed rack so the goat's lower neck is level with the lower crossbar of the bracket. This allows the goat to lower its head to drink or feed without touching the upper crossbar when raising its head.

Technical Specifications

• Safe Loading Weight: 600 lbs / 272 kg
• Desktop Size: 47 x 23 inches (1195 x 584 mm)
• Colour: Blue
