Vevor 23CS035540 Steel Wire Shelving Unit User Manual
Quick guide for the Vevor 23CS035540 steel wire shelving unit. Includes assembly instructions, load capacity limits, and safety precautions for proper setup.
Quick answers from the manual
Quick answer
- The Vevor 23CS035540 is a steel wire shelving unit. Assembly requires snapping plastic clips onto poles and sliding shelves over them. Always distribute weight evenly and do not exceed the specified load limits. p. 1
Key actions
- Assemble the unit by snapping plastic clips onto the poles at the desired height and sliding the shelves over them. p. 1
Problems and fixes
Shelf is unstable
Ensure all clips are snapped securely into the grooves and the unit is on a level surface.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Total load limit (casters) | 550 lbs | Max weight with wheels | p. 1 |
| Total load limit (feet) | 700 lbs | Max weight with leveling feet | p. 1 |
Where to find it in the PDF
- Assembly and Specifications p. 1
Table of contents
Quick guide from the manual
The Vevor 23CS035540 is a steel wire shelving unit designed for storage. This guide provides essential information for assembly and safe operation. Always ensure the unit is placed on a flat, hard surface and that weight is distributed evenly across the shelves to prevent instability.
Safety instructions
- Weight limits: Do not exceed the maximum load capacity. Distribute weight evenly on each layer.
- Usage: This product is not a toy; do not allow children to play on or around the shelf.
- Maintenance: Check periodically to ensure all parts are secure and not damaged.
- Safety gear: It is recommended to wear safety goggles and work gloves during assembly.
Assembly instructions
- Prepare poles: Screw the caster or leveling feet into the bottom of each lower pole.
- Attach clips: Snap the plastic clips onto the poles at the desired height. Ensure the clips are securely seated in the grooves.
- Install shelves: Slide the shelf down over the poles, ensuring it rests firmly on the plastic clips.
- Complete assembly: Repeat the process for additional shelves. Screw the upper poles into the lower poles using the provided connectors.
Technical specifications
The load capacity varies depending on whether the unit is used with casters (wheels) or leveling feet:
- Total static load limit (with casters): 550 lbs
- Static load limit per layer (with casters): 137.5 lbs
- Total static load limit (with feet): 700 lbs
- Static load limit per layer (with feet): 175 lbs
Manufacturer information
VEVOR
Practical help
Common problems
Shelf is unstable or wobbling
Ensure the unit is on a level surface and that all plastic clips are snapped securely into the correct grooves on the poles.
Shelf does not slide over clips
Verify that the plastic clips are properly seated in the pole grooves and that the shelf is aligned straight before sliding it down.
Before use
- Verify all parts are present according to the parts list
- Ensure the floor surface is flat and hard
- Check that all plastic clips are snapped into the grooves
- Tighten all connections between poles
- Distribute weight evenly across shelves
Show more Show less
Specs in practice
- Static load limit (casters)
- Maximum weight capacity when using wheels: 550 lbs total, 137.5 lbs per layer.
- Static load limit (feet)
- Maximum weight capacity when using leveling feet: 700 lbs total, 175 lbs per layer.
Images and diagrams

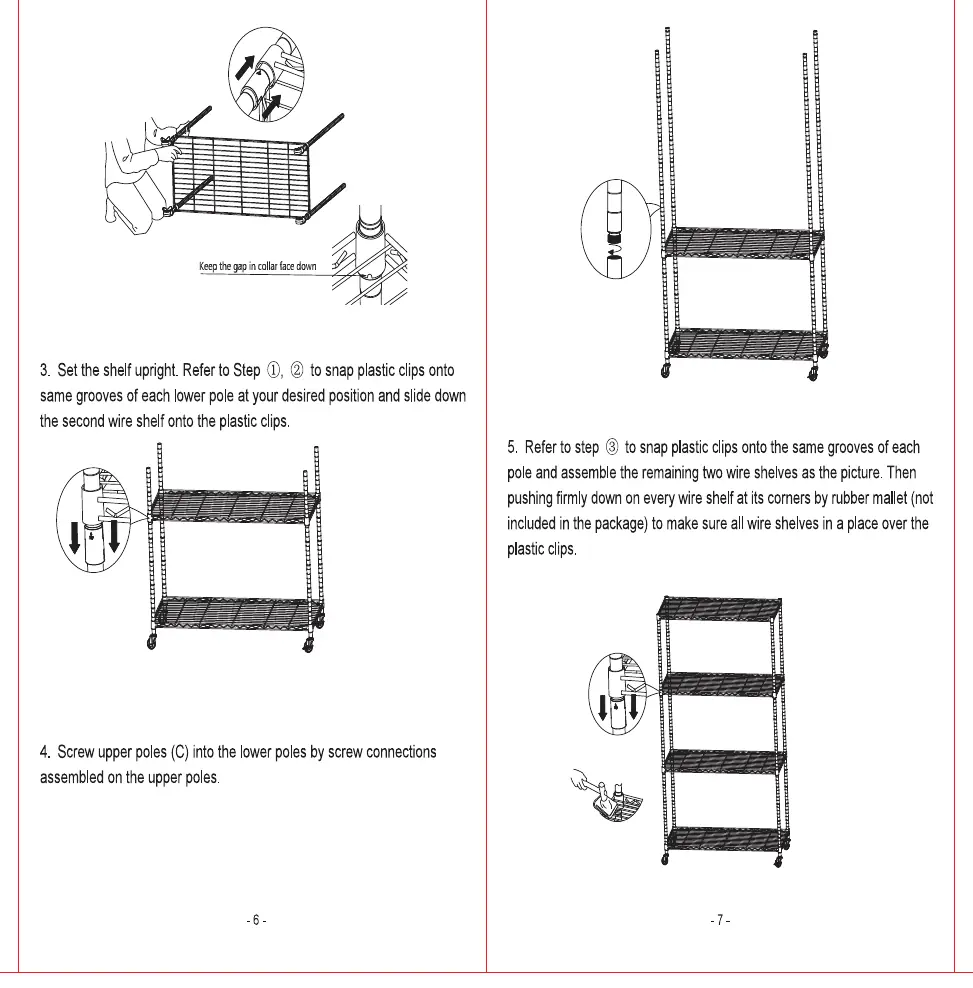

- The assembly process involves snapping plastic clips onto the poles at the desired height and sliding the shelf down over them.
Model compatibility
- Designed for indoor use on flat, hard surfaces.
