User Manual for Vevor Portable Utility Pump
Get started with your Vevor Portable Utility Pump. This guide covers setup, hose connections, electrical requirements, priming, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick Start Guide
This portable utility pump is designed exclusively for 110-120V, 60Hz power sources. Before operating, ensure you have a standard garden hose and PTFE (plumber's) tape. The pump requires lubrication before its first use and must be properly grounded to prevent electrical shock. Always ensure the pump is placed in a safe, dry area and is not submerged during operation.
Package Contents

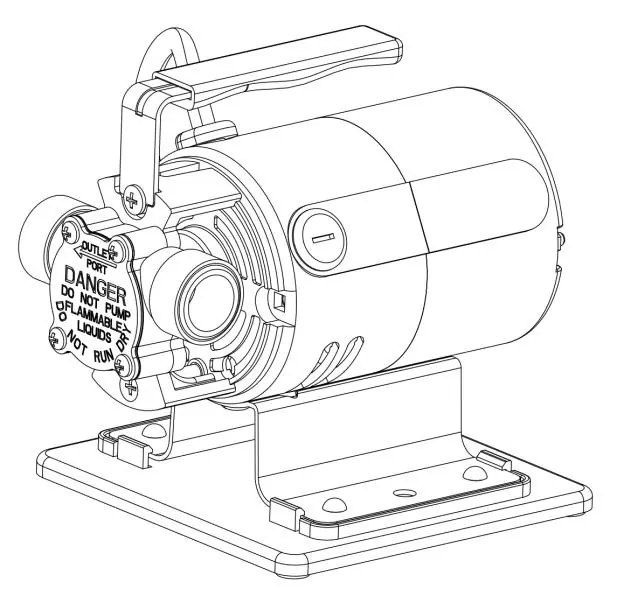

- Portable Utility Pump
- Impeller
- Carbon Brush
- Suction Attachment
- 6 ft Inlet Pipe
- Instruction Manual
Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or injury, follow these precautions:
- Read all instructions before use.
- Close supervision is recommended during operation.
- Do not insert fingers or hands into the inlet or outlet while the pump is running.
- Always unplug the power before moving the pump.
- Ensure the pump is properly grounded according to electrical connection instructions.
- Do not allow the pump, cord, or outlet to come into contact with water.
Installation and Connections
Hose Connections
Connect a standard garden hose to both the inlet and outlet ports. If using a hose other than the provided inlet hose, ensure it is less than 25 feet long and positioned less than 10 feet above the water source. Keep hoses as straight as possible to maximize efficiency.
Electrical Connections
The pump must be connected to a 120V, 60Hz AC outlet. Use a three-prong grounded plug. Ensure the outlet is properly installed and grounded in accordance with local codes.
Operating Instructions
Pump Preparation
Before operating, the pump must be lubricated. Pour 1/2 tablespoon of food-grade vegetable oil into the inlet to lubricate the impeller.
Operation
- Ensure inlet and outlet hoses are firmly attached.
- Verify the pump is in a safe, dry area.
- Submerge the inlet hose in the water source.
- Ensure the outlet hose is positioned correctly.
- Plug the pump into a grounded 120V, 60Hz outlet.
- The pump is self-priming; water should begin to flow within 30 seconds.
- Unplug the pump immediately after use.
Maintenance and Troubleshooting
If the pump fails to start, check the power connection. If the pump is running but no water is flowing, ensure the pump is oiled, the inlet hose is not too long, and there are no kinks in the hoses. If the pump stops, check for water supply issues or thermal overload; unplug and allow it to cool. If the pump leaks, check for missing O-rings on the hoses.
Specifications
- Voltage/Frequency: 120V-60Hz
- Current: 2.3A
- Power: 1/10 HP
- Maximum Flow: 360 GPH
- Maximum Head Lift: 46 ft
- Inlet/Outlet Diameter: GHT 3/4"
- Power Cord: 18AWG, 6 ft
Parts List

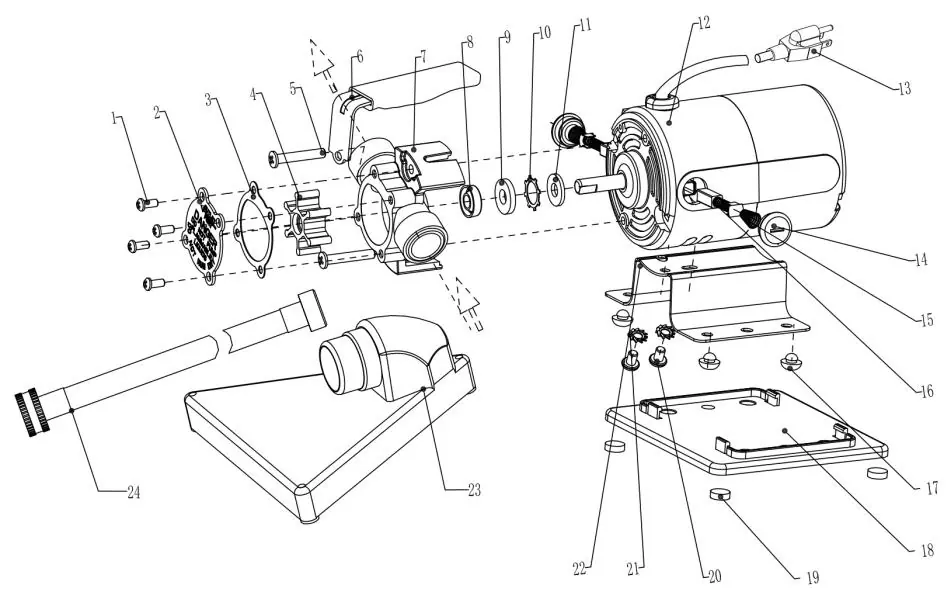

The pump consists of various components including the pump head, impeller, electric machinery, and carbon brushes. Refer to the exploded view diagram for specific part numbers and assembly order.
Manufacturer information
VEVOR
Practical help
Common problems
Pump will not start
Check outlet power or ensure the plug is fully inserted.
Pump is on, but no water is flowing
Oil the pump through the inlet, shorten the inlet hose, or straighten out any kinks.
Pump stops with a warning
Check the inlet water supply, unplug the unit to let it cool down, and straighten any kinked hoses.
Pump leaks
Remove inlet and outlet hoses and reinstall them, ensuring O-rings are present.
Before use
- Ensure power source is 110-120V, 60Hz.
- Have a standard garden hose and PTFE tape ready.
- Ensure the work area is clear and well-lit.
- Pour 1/2 tablespoon of food-grade vegetable oil into the inlet.
- Verify the inlet hose is submerged in the water source.
- Confirm the pump is in a dry location.
Specs in practice
- Maximum Flow: 360 GPH
- The pump can move up to 360 gallons of water per hour.
- Maximum Head Lift: 46 ft
- The maximum vertical height the pump can push water.
- Power: 1/10 HP
- The motor power rating.
- Inlet/Outlet Diameter: GHT 3/4"
- Standard garden hose thread size for connections.
Images and diagrams
- Exploded view shows the assembly of the pump head, impeller, and motor components.
- Hose connection diagram illustrates the correct attachment of hoses to the pump ports.
- Electrical diagram shows the required 3-prong plug configuration.
Model compatibility
- Designed for fresh water only.
- Requires 120V, 60Hz AC power exclusively.
- Inlet hose should be under 25 feet long and less than 10 feet above the water source.
