Technical Guide for Viessmann Vitodens 050-W and 100-W Gas Condensing Boilers
Comprehensive technical guide for Viessmann Vitodens 050-W and 100-W gas condensing boilers. Includes installation requirements, system specifications, accessory details, and control unit configuration.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This technical guide provides essential information for the installation, operation, and maintenance of the Viessmann Vitodens 050-W and 100-W gas condensing boilers. It covers system specifications, siting conditions, accessory installation, and control unit settings. Always ensure installation is performed by a registered contractor in accordance with local regulations.
Product Overview
The Vitodens 050-W and 100-W are wall-mounted gas condensing boilers featuring the Inox-Radial stainless steel heat exchanger and MatriX-Plus burner with Lambda Pro combustion controller. They are designed for high efficiency, quiet operation, and long service life. Both models are web-enabled for service and operation via Viessmann apps.
Installation Requirements
Siting and Installation
- Location: Must be frost-free and adequately ventilated.
- Clearances: 700 mm in front of the boiler is required for maintenance. No side clearance is required.
- Flue Gas: The flue system must be designed as short and straight as possible. For room-sealed operation, ensure the flue pipe is correctly installed.
- Gas Connection: Must be carried out by a registered gas fitter. A gas filter is recommended.
- Electrical: Requires a permanent 230V, 50Hz connection.
Condensate Connection
Route the condensate pipe with a constant fall to the public waste water system. A stench trap must be installed. If the boiler is installed below the waste water anti-flooding level, a condensate lifting pump is required.
Control Unit
The control unit is integrated into the boiler and features an HMI programming unit with a 7-segment display. It supports weather-compensated operation (requires outside temperature sensor) or constant temperature operation. It also includes frost protection functions and diagnostic capabilities.
DHW Cylinders
The Vitodens 050-W can be used with Vitocell 100-W DHW cylinders. The guide provides specifications for 120L, 150L, and 300L capacities, including performance data and connection requirements.
Technical Data
The manual contains detailed specification tables for both models, including:
- Rated heating output ranges (kW).
- Gas supply pressures (mbar/kPa).
- Dimensions and weights.
- Flue gas parameters.
- Circulation pump settings.
For further technical support, contact Viessmann Limited at +44 1952 675000 or via email at [email protected].
Manufacturer information
Viessmann Climate Solutions
Practical help
Common problems
Reverse flow of flue gas when using extractors
Fit an interlock circuit or ensure an adequate supply of combustion air.
Condensate drain issues
Ensure the pipe has a constant fall and includes a stench trap.
Gas supply pressure too high
Install a separate gas pressure governor upstream of the system.
Before use
- Verify the boiler model is compatible with your gas type (Natural gas or LPG).
- Ensure the installation room is frost-free and properly ventilated.
- Check that the flue system is correctly installed and tested.
- Confirm the electrical supply meets the 230V, 50Hz requirement.
- Ensure all required accessories (e.g., pre-plumbing jig) are available.
Specs in practice
- Rated heating output
- The range of heat (in kW) the boiler can provide based on flow/return temperatures.
- Gas supply pressure
- The required pressure (mbar/kPa) for the boiler to operate correctly.
Images and diagrams

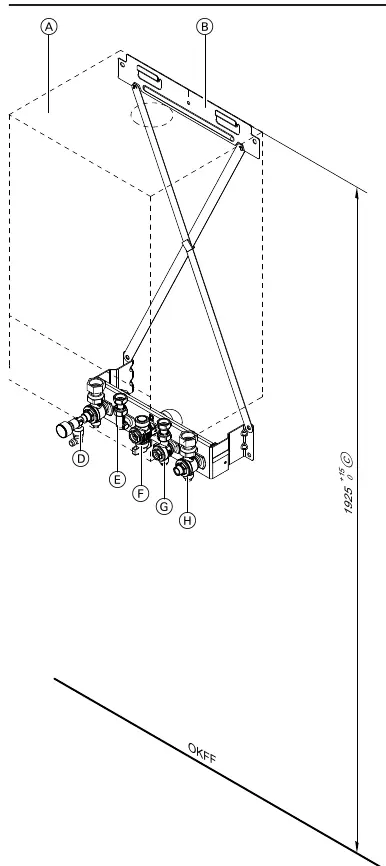

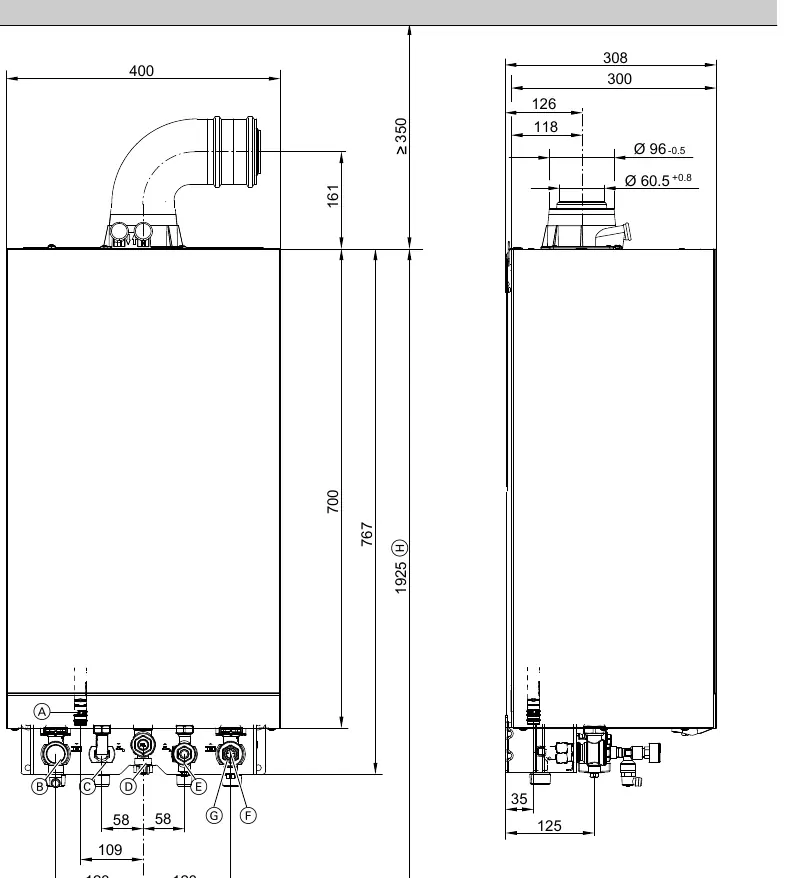

- Installation dimensions diagrams show the exact placement of heating flow, return, gas, and DHW connections.
