User Manual for VonShef 2013375 2.5L Deep Fryer
Quick guide for the VonShef 2013375 2.5L Deep Fryer. Includes setup, operation, safety warnings, maintenance, and technical specifications.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- The VonShef 2013375 is a 2.5L deep fryer. It features a thermal cut-out switch, adjustable temperature, and a frying basket. It is for domestic use only and requires manual cleaning. p. 1, 3, 12
Key actions
- Pre-heat the fryer for 5-10 minutes before use. p. 14
- Change the oil every 20 uses. p. 14
First start
- Wipe the appliance with a damp cloth before first use. p. 10
Show 4 more answers Show less
Problems and fixes
Appliance shuts down
Thermal cut-out activated. Unplug and let cool for 30 minutes.
p. 2Maintenance and reset
- Hand wash components in warm soapy water. Do not use dishwasher. p. 3, 14
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated Voltage | 220-240V | Operating voltage | p. 3 |
| Rated Power | 1800W | Power consumption | p. 3 |
Where to find it in the PDF
- Components p. 8, 9
- Operation p. 12, 13
Table of contents
Manual images
Click an image to enlargeQuick Guide
The VonShef 2013375 is a 2.5L deep fryer designed for domestic use. It features a thermal cut-out switch for safety, adjustable temperature control, and a removable frying basket. Always ensure the appliance is used on a flat, heat-resistant surface and is well-ventilated.
Components
- Viewing Window
- Detachable Lid
- Filter System
- Oil Pot
- Lid Release Button
- Housing
- Temperature Dial
- Ready Light Indicator
- Power Indicator
- Frying Basket
- Adjustable Basket Handle
Before First Use
Before using the appliance for the first time, wipe the unit with a damp cloth. Do not immerse the electrical components or the housing in water.
Assembly
Ensure the lid is completely secure before use. The lid attaches to the main housing.
Operation
- Filling: Fill the oil pot with oil (up to the 2.5L mark).
- Heating: Plug in the appliance and set the temperature. Allow 5-10 minutes to pre-heat.
- Frying: Once the ready light indicates the unit is hot, carefully lower the food into the oil using the basket. Always use with the lid closed.
- Draining: When cooking is complete, lift the basket and hook it onto the side of the oil pot to drain excess oil.
- Finishing: Turn the dial to '0' and disconnect the power cord.
Tips and Maintenance
- Oil Change: The oil should be changed every 20 uses. When changing, wipe the oil pot with absorbent paper, then a damp cloth with a little detergent.
- Cleaning: Hand washing is recommended. Soak in warm soapy water and wipe with a soft sponge. Do not use abrasive cleaners or metal scouring pads. Never wash electrical components in a dishwasher.
- Safety: If the unit shuts down, the thermal cut-out has activated. Unplug and let cool for 30 minutes. Do not add wet food to hot oil as it can cause serious injury.
Technical Specifications
- Rated Voltage: 220-240V
- Rated Power: 1800W
- Rated Frequency: 50/60Hz
Manufacturer information
VonShef
Practical help
Common problems
Appliance shuts down during use
The thermal cut-out switch has activated due to overheating. Unplug the appliance and allow it to cool for 30 minutes before re-use.
New smell or vapour during first use
This is normal and will dissipate after a few uses.
Indicator light cycles on and off
This is completely normal operation and not a fault.
Before use
- Check that your electricity supply matches the rating plate.
- Ensure the appliance is on a flat, stable, heat-resistant surface.
- Ensure the area is fully ventilated.
- Wipe the appliance with a damp cloth.
- Ensure the lid is securely attached.
Show more Show less
Specs in practice
- Rated Voltage
- 220-240V
- Rated Frequency
- 50/60Hz
Images and diagrams

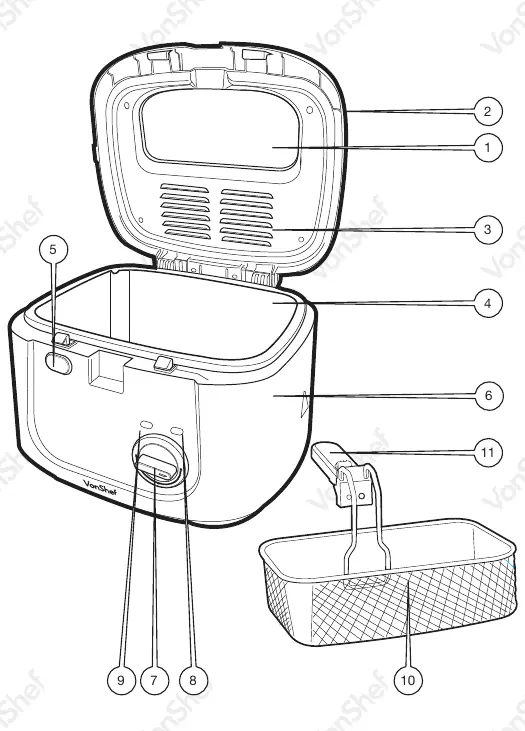

- The components diagram identifies the viewing window, lid, filter, oil pot, lid release, housing, temperature dial, indicators, basket, and handle.

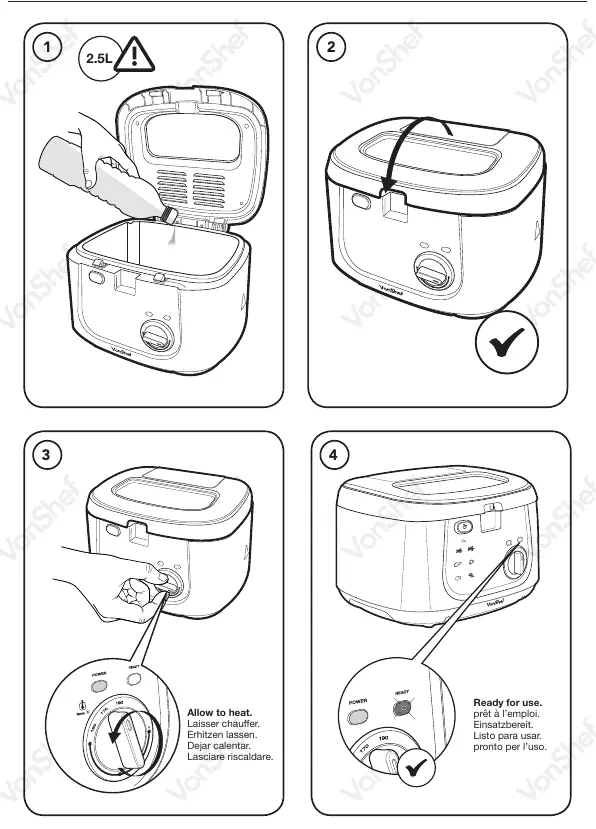

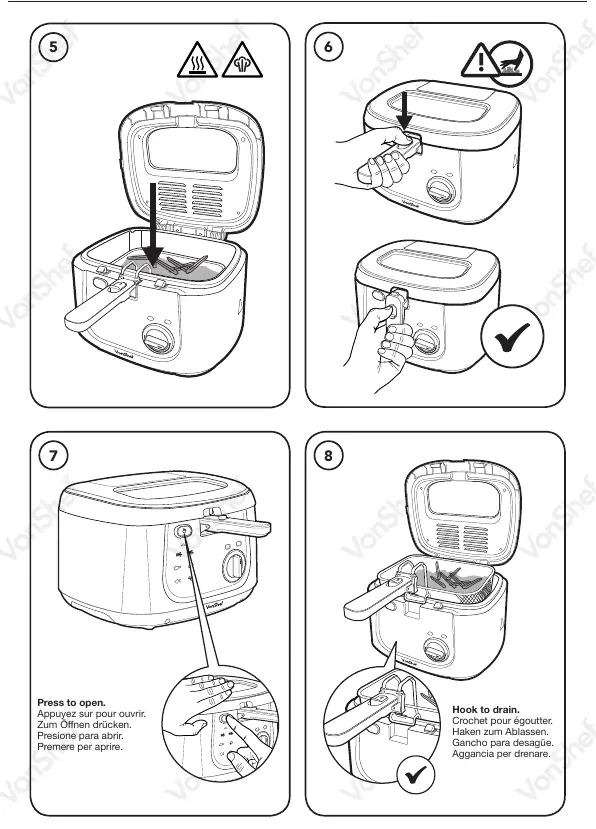

- Operation diagrams illustrate filling the oil, heating, lowering the basket, and hooking the basket to drain.
Model compatibility
- For domestic use only.
- Do not use outdoors or on wet surfaces.
- Do not use with an external timer or remote control system.
