User Manual for Wayfair Noah 6-Drawer Dresser 1064-B

Quick guide from the manual

This dresser is designed for residential use only. The maximum weight capacity is 150 lbs. Assembly requires two people. Always anchor the furniture to the wall to prevent tipping.

Maintenance and safety

• Keep furniture away from heat sources and direct sunlight to prevent fading.
• Do not use harsh cleaners, detergents, solvents, or abrasives.
• Clean spills using a mixture of non-color mild soap and warm water (1:10 ratio).
• Do not write on the furniture surface without a padded barrier.
• Children should not climb or jump on the furniture.

Assembly preparation

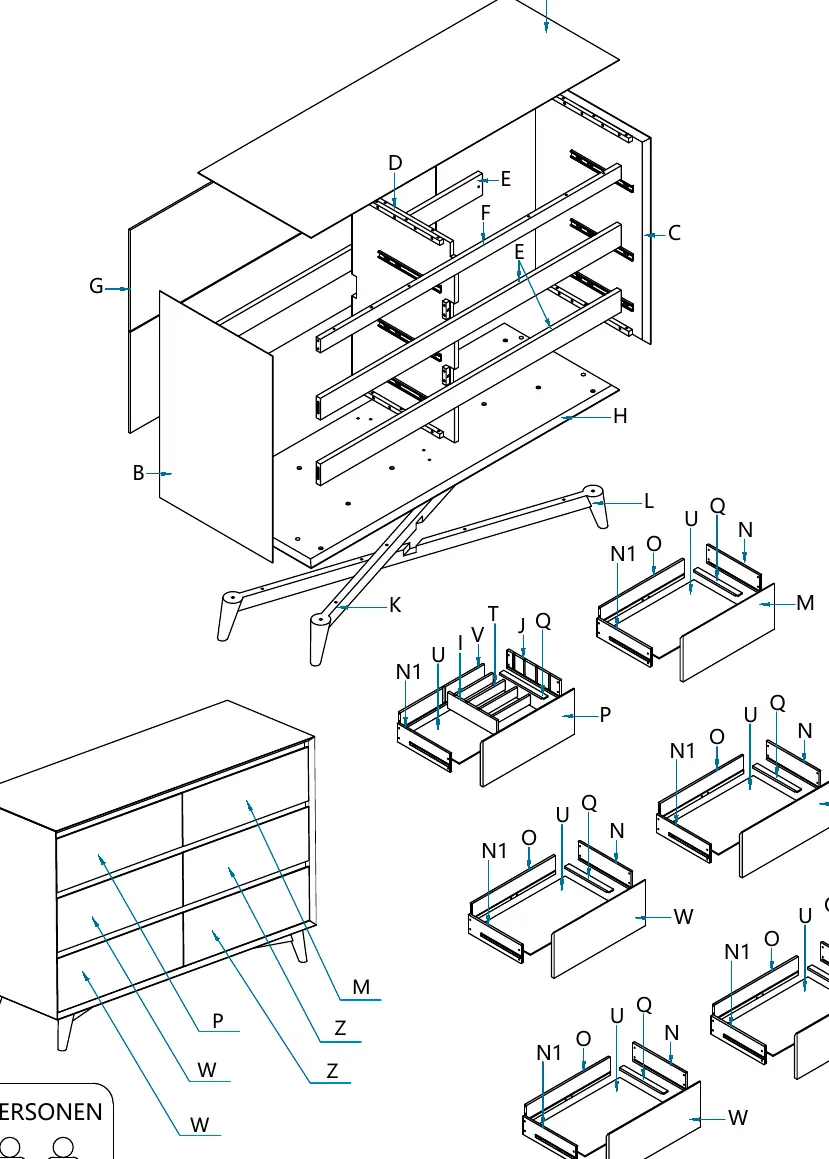

Before starting, verify all parts (A-Z, I, J, M, N, N1, O, P, Q, T, U, V, W, Z) and hardware (#1-#10) are present. You will need a screwdriver (not provided). Assembly is best performed by two people.

Assembly instructions

Follow these steps to assemble your dresser:

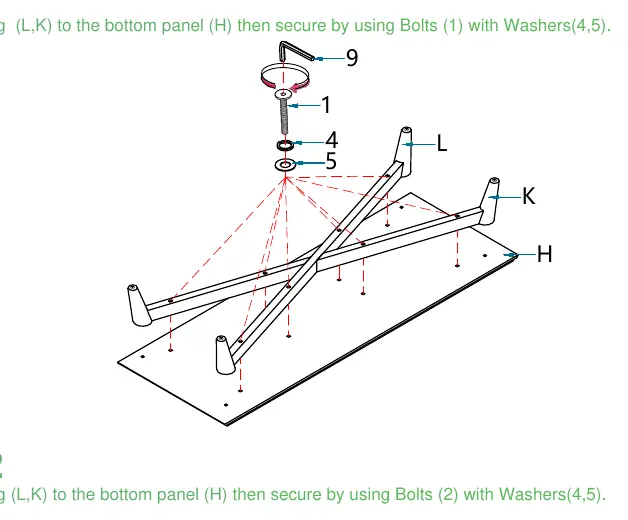

1. Legs: Attach legs (L, K) to the bottom panel (H) using bolts (1, 2) and washers (4, 5).
2. Frame: Connect the divider panel (D), side panels (B, C), and crossbars (E) to the bottom panel (H) using wood dowels (7) and bolts (2).
3. Top and Back: Attach the top panel (A) and back panel (G) to the frame using screws (6) and bolts (1).

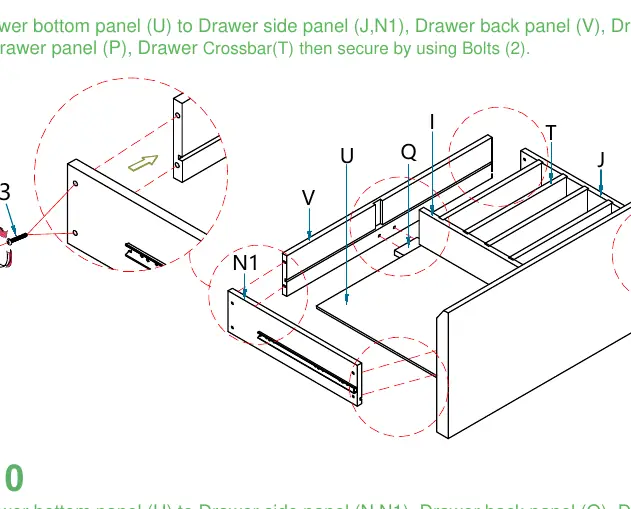

4. Drawers: Assemble drawers by connecting side panels (N, N1, J), back panels (V, O), crossbars (Q, T), and drawer fronts (P, M, Z, W) to the drawer bottom (U) using bolts (3).
5. Installation: Slide the assembled drawers into the cabinet base.

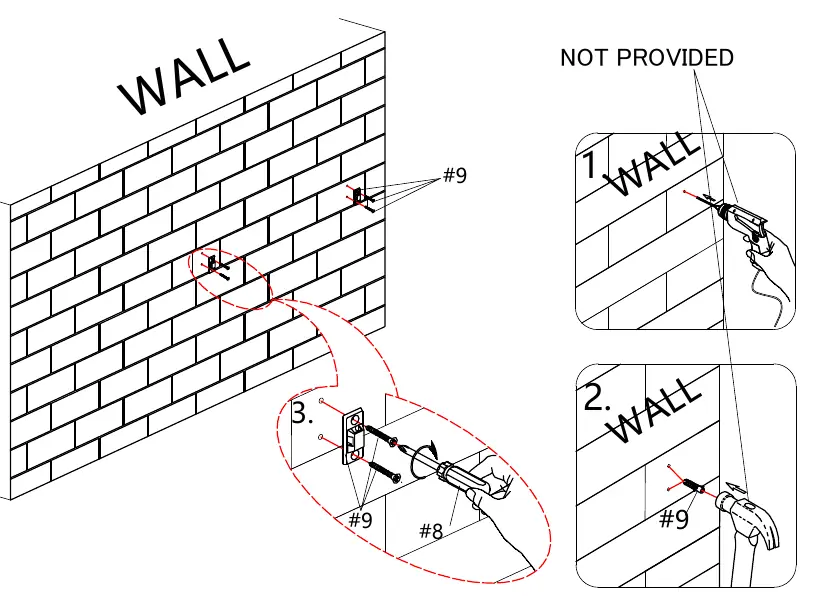

6. Wall Anchoring: Secure the dresser to the wall using the provided hardware (#9) to ensure stability.

Warranty

The product includes a 30-day warranty from the date of receipt. Proof of order (order number or receipt) is required for claims.
