User Manual for Whirlpool 1065B Induction Hob with Extractor
Comprehensive user guide for the Whirlpool 1065B induction hob with integrated extractor. Includes installation instructions, safety guidelines, operating procedures, maintenance tips, and troubleshooting.
Quick answers from the manual
Quick answer
- This manual provides comprehensive installation, operation, and maintenance instructions for the Whirlpool induction hob with integrated extractor. p. 41, 43, 45, 52
Key actions
- Powering on the hob p. 48
- Setting the power level p. 48
- Activating the Power Booster p. 48
First start
- Ensure installation is performed by qualified personnel. p. 43
- Check for damage before installation. p. 43
Show 5 more answers Show less
Problems and fixes
Command zone switches off due to high temperature
Wait for the hob to cool before reusing it
p. 54
Container unsuitable
Remove the pot
p. 54
Communication problems between user interface and induction module
Disconnect the hob from the electrical network and check the connection
p. 54Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E2 | Command zone switches off due to an excessively high temperature | Wait for the hob to cool before reusing it | p. 54 |
| E3 | Container unsuitable | Remove the pot | p. 54 |
| E5 | Communication problems between the user interface and induction module | Disconnect the hob from the electrical network and check the connection | p. 54 |
Maintenance and reset
- Reset filter saturation by pressing and holding FILTER (13). p. 51
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Height | 25 cm | Product height | p. 54 |
| Width | 65 cm | Product width | p. 54 |
| Depth | 51.5 cm | Product depth | p. 54 |
Where to find it in the PDF
- Safety Instructions (English) p. 41, 42, 43
- Operation (English) p. 45, 46, 47, 48
- Maintenance (English) p. 52, 53
- Error Codes & Technical Specs (English) p. 54
Table of contents
Manual images
Click an image to enlargeQuick Start Guide
This induction hob with integrated extractor is designed for domestic use. Before starting, ensure the device is correctly installed and connected to the power supply. The hob features 9 power levels, a Booster function for rapid heating, and a Bridge function for larger cookware. The integrated extractor can be used in either duct-out or recirculating mode.
Installation

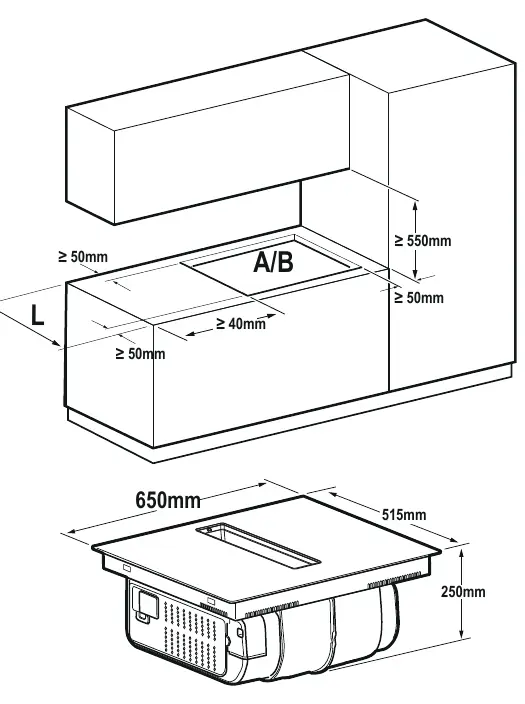

Installation must be performed by qualified personnel. The hob is designed for TOP or FLUSH installation in a worktop 2-6 cm thick. Ensure minimum distances from walls (5 cm front, 4 cm sides) and overhead units (50 cm). The product must be permanently connected to the mains via an omnipolar switch. A Power Limitation function allows you to set the maximum power consumption of the hob during initial setup.
Using the Hob
To operate the hob, touch the ON/OFF button. Select the desired cooking zone and use the selection bar to adjust the power level. The hob features a Pot Detector, which ensures zones only activate when suitable cookware is present. Other features include:
- Power Booster: Provides extra power for 5 minutes.
- Bridge Zones: Combines two cooking zones into one.
- Automatic Heat UP: Rapidly reaches the set power level.
- Pause: Suspends all active functions.
- Timer: Independent countdown timer.
- Temperature Manager: Maintains a constant temperature for warming food.
Using the Extractor
The extractor can be used in duct-out or recirculating mode. It features 3 speed levels and a Power Booster. An automatic mode adjusts the extraction speed based on the cooking zone power levels. The extractor will continue to run at a reduced speed after the cooking zones are turned off to clear residual vapors.
Maintenance
Regular maintenance is essential for performance and safety. Clean the hob after each use with a soft cloth and non-abrasive detergents. The grease filter should be cleaned monthly. If using the recirculating version, the odor filters must be regenerated every 2-3 months in an oven at 200°C for 45 minutes.
Troubleshooting
If the hob displays an error code, consult the troubleshooting section. Common issues include the command zone switching off due to high temperature (wait for it to cool), unsuitable containers (remove the pot), or communication problems (check electrical connection).
Technical Specifications
The unit dimensions are 25 cm (height), 65 cm (width), and 51.5 cm (depth).
Manufacturer information
Whirlpool Corporation
Practical help
Common problems
Command zone switches off due to high temperature
Wait for the hob to cool down before reusing it.
Container unsuitable
Remove the pot; check if it is magnetic.
Communication problems between user interface and induction module
Disconnect the hob from the electrical network and check the connection.
Before use
- Ensure the hob is disconnected from the mains before installation.
- Check that the voltage on the rating plate matches your home supply.
- Verify that the hob is not installed above cooling appliances, ovens, or dishwashers.
- Use only pots and pans with a flat bottom and the induction symbol.
- Ensure the hob is clean and free of debris.
Show more Show less
Specs in practice
- Power Limitation
- Limits the maximum power consumption of the hob to match your electrical system.
- Bridge Zones
- Combines two cooking zones into one larger zone for big pots.
Images and diagrams
- The control panel layout shows the four cooking zones (FL, FR, RL, RR) and the touch-sensitive controls for power, timer, and extractor.
Model compatibility
- Use only induction-compatible cookware (magnetic base).
- Not suitable for professional use.
- Do not use steam cleaners.
