Zoeller AquaNot Spin 508 12-Volt Backup Sump Pump System Technical Data Sheet
Technical data sheet and installation guide for the Zoeller AquaNot Spin 508 12-Volt Backup Sump Pump System. Includes wiring diagrams, performance curves, battery requirements, and system alert indicators.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Zoeller AquaNot Spin 508 is a self-testing battery backup sump pump system. Key operational requirements include using a deep-cycle battery (size 27, 29, or 31) and ensuring the installation pit is at least 16 inches in diameter and 22 inches deep. All electrical work must be performed by a qualified licensed electrician in accordance with NEC and OSHA codes.
System Overview
The system consists of a 12-volt DC pump, a controller that monitors battery health and pump status, and a battery case. The controller features multi-stage charging and self-testing diagnostics to ensure the system is ready during power outages.
Controller Alerts
The controller provides status updates via LED indicators:
- System Ready: Green light indicates no faults.
- Battery: Green (Charged), Yellow (Charging), Red (Low Battery/Bad Battery).
- DC Pump: Yellow (Pump Running/Ran), Red (Pump Fault).
- Float Status: Red (High Water/Float Fault).
Installation Requirements
- Pit Size: Minimum 16" (40 cm) diameter by 22" (56 cm) deep.
- Battery: Deep-cycle, size 27, 29, or 31.
- Wiring: All controls and wiring must be installed by a qualified licensed electrician.
- Float Switch: The off-level of the float assembly must be higher than the DC backup pump.
Performance Data
The system is rated for a shut-off head of 22 ft (6.7 m). Performance is based on a fully charged 12-volt deep-cycle battery. Estimated battery life during continuous operation is approximately 5.5 hours (based on 175-minute reserve capacity).
Maintenance and Safety
The pump includes an integrated check valve and a quick-disconnect discharge. Regularly test the system using the 'Test' button on the controller. If an alarm sounds, press the 'Alarm Silence/Reset' button to silence it, or press and hold for three seconds to reset.
Practical help
Common problems
Pump Fault (Red LED)
Indicates a pump fault; check for obstructions or electrical connection issues.
Low Battery (Red LED)
Battery voltage is low; check battery charge level or replace the battery if it fails to hold a charge.
High Water (Red LED)
Water level is high; check the float switch or the optional reed sensor for proper operation.
Before use
- Verify the battery is a deep-cycle type, size 27, 29, or 31.
- Ensure the installation pit is at least 16 inches in diameter and 22 inches deep.
- Confirm the off-level of the float assembly is positioned higher than the DC backup pump.
- Ensure all electrical connections are performed by a qualified licensed electrician.
- Test the system using the 'Test' button on the controller.
Specs in practice
- Shut-off Head
- The maximum vertical height (22 ft) the pump can push water before flow stops.
- Reserve Capacity
- The estimated time (175-200 minutes) the battery can power the pump during continuous operation.
- Total Dynamic Head
- The sum of the vertical lift and friction loss in the discharge pipe.
Images and diagrams

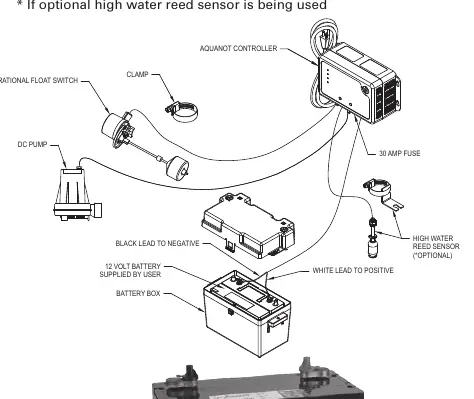

- Wiring Diagram: Illustrates the connections between the DC pump, controller, battery, and optional reed sensor.

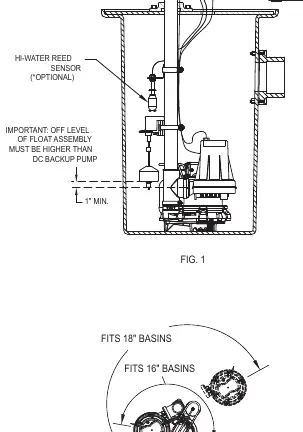

- Installation Diagram: Shows the correct placement of the pump and float switch within the basin.
Model compatibility
- Compatible with group size 27, 29, and 31 deep-cycle batteries.
- Optional high water reed sensor (P/N 10-4830) is available for redundant pump run.
- Not recommended for installation with over 20' (6 m) Total Dynamic Head.
