User Manual for Little Giant 15EC-CIA-SFS Sump Pump
Quick guide for the Little Giant 15EC-CIA-SFS Sump Pump. Includes technical specifications, performance data, construction details, and operational limits for wastewater removal and dewatering.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Little Giant 15EC-CIA-SFS is a submersible sump pump designed for wastewater removal, dewatering, and water transfer. This manual provides the necessary technical specifications and performance data for proper installation and operation.

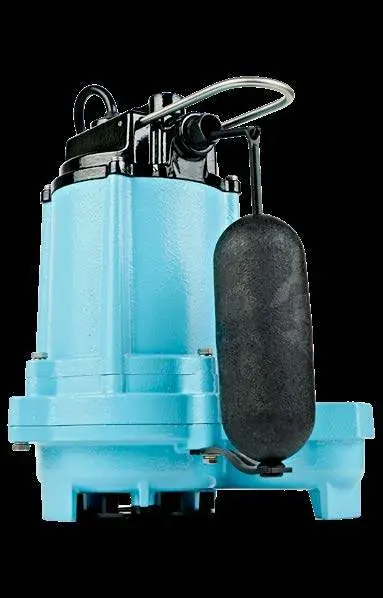

Product Overview
The pump features a 3/4 HP Permanent Split Capacitor (PSC) motor and is fully automatic, equipped with an integral vertical float switch. It is built with a cast iron motor housing, base, and cover, and is capable of passing 1/2 inch semi-solids.
Technical Specifications
- Motor: 3/4 HP PSC, thermally protected
- Voltage: 115V, 60Hz
- Amperage: 8.1A
- Power: 800W
- Discharge: 1-1/2 inch FNPT
- Operation: Automatic vertical float switch
- On Level: 7 to 10 inches
- Off Level: 3 to 5 inches
- Power Cord: 10 feet
Construction Details
The pump is constructed for durability in demanding environments:
- Housing and Volute: Cast Iron
- Impeller: Polymer, clog-resistant
- Shaft: Stainless steel
- Fasteners: Stainless steel
- Shaft Seal: Mechanical
- Bearings: Ball bearing (upper/lower)
Performance Data
The pump performance varies based on the Total Dynamic Head (TDH). At 5 feet (1.5 m), the pump delivers 80 GPM (302.8 LPM). At 25 feet (7.6 m), it delivers 30 GPM (113.6 LPM). The shut-off head is 28 feet (8.5 m).
Contact Information
For support, contact the hotline at 1.800.701.7894 or visit the website at www.littlegiant.com.
Official resources from the manual
Practical help
Common problems
Pump fails to start
Ensure the water level has reached the 'On' level (7-10 inches). Check that the float switch is not obstructed or stuck.
Pump fails to turn off
Ensure the water level has dropped below the 'Off' level (3-5 inches). Check for debris preventing the float switch from dropping.
Before use
- Verify the power supply is 115V, 60Hz.
- Ensure the discharge pipe is 1-1/2 inch FNPT.
- Confirm the sump basin is clear of large debris.
- Check that the float switch has sufficient clearance to operate without hitting the basin walls.
- Verify the pump is placed on a stable, level surface.
Specs in practice
- 1-1/2 inch FNPT
- Female National Pipe Taper thread size for the discharge connection.
- Shut-Off Head
- The maximum height (28 feet) to which the pump can lift water before flow stops.
Images and diagrams
- The performance curve illustrates the relationship between Total Dynamic Head (feet) and Flow (GPM/LPM).

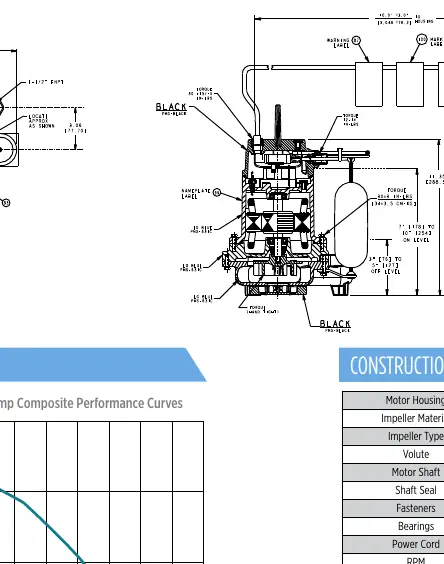

- The construction diagram details the internal assembly, including the motor, shaft, and float switch positioning.
Model compatibility
- Designed for wastewater removal, dewatering, and water transfer.
- Capable of passing 1/2 inch semi-solids.
