Installation and User Guide for allen + roth 48-in Vanity with Top 1227VA-48-201-903

Quick Guide from the Manual

This vanity requires assembly by two adults. The estimated installation time is 20-30 minutes, plus 24 hours for the silicone caulk to dry. Important: The vanity must be secured to the wall for safety. Do not attempt to pry the top off the vanity, as this may cause damage.

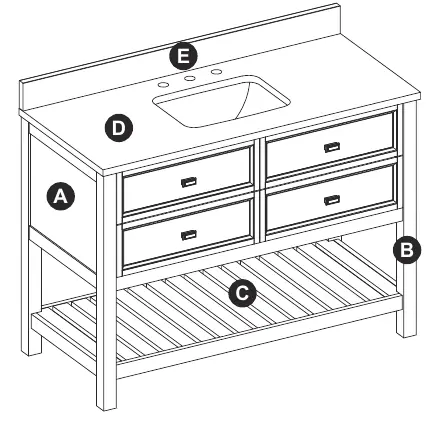

Package Contents

Ensure all parts are present before starting:

• Vanity (A)
• Legs (B) - 4
• Shelf (C)
• Top (D) - preassembled to vanity
• Backsplash (E)
• Hardware: Bolts (AA), Washers (BB), Touch Up Pen (CC), Allen Wrench (DD), Spring Washers (EE)

Preparation and Tools

Before beginning, clear the area and ensure you have the following tools (not included):

• Phillips screwdriver
• Utility knife or scissors
• Silicone caulk
• Power drill with drill bit
• Measuring tape and level (helpful)

Installation Instructions

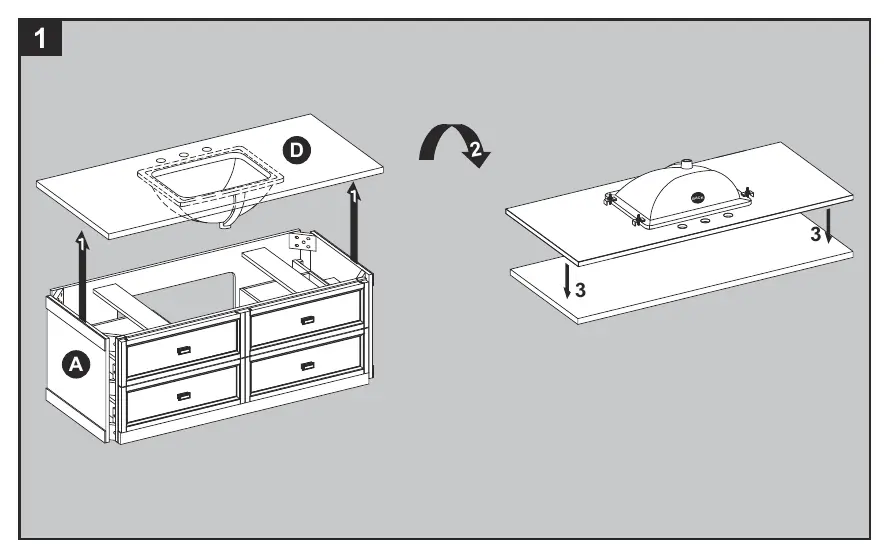

1. Remove Top: Remove the top (D) from the vanity (A) and place it face down on a scratch-free surface.

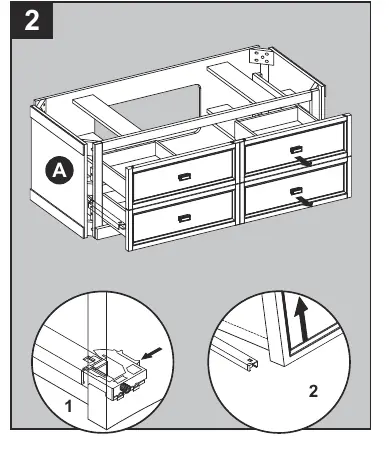

2. Remove Drawers: Fully extend the drawers, locate the plastic levers on the metal glide tracks, push them to disengage, and lift the drawer out.

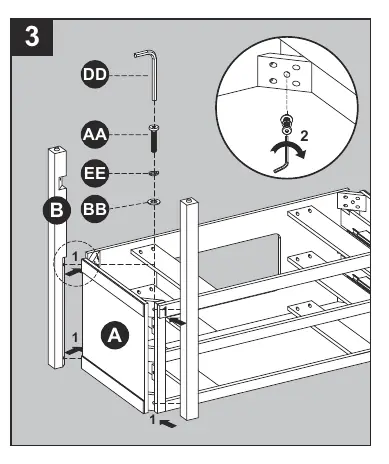

3. Attach Legs: Place the vanity (A) upside down. Attach two legs (B) using bolts (AA), spring washers (EE), and washers (BB). Tighten with the Allen wrench (DD). Do not install the final two legs yet.

4. Attach Shelf: Place the shelf (C) into the notches of the installed legs. Push the final two legs (B) into place and secure them using the provided hardware.

5. Secure Legs: Insert bolts, washers, and spring washers into the predrilled holes on the inside of the legs and tighten.

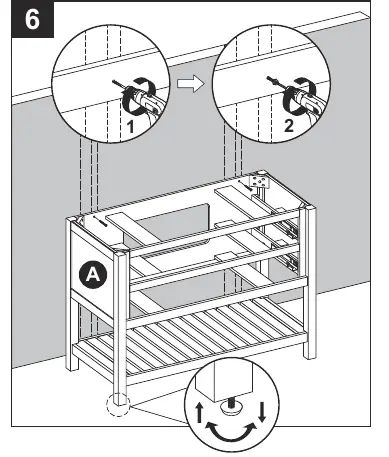

6. Wall Mounting: Place the vanity against the wall. Drill through the vanity mounting area into wall studs. Secure the vanity to the wall studs using appropriate mounting hardware (not included).

7. Attach Top: Apply silicone caulk to the top edge of the vanity (A). With the help of another adult, lower the top (D) onto the vanity. Wipe away excess caulk and allow 24 hours to dry.

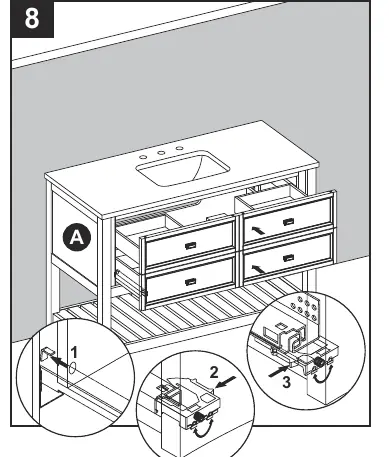

8. Reinstall Drawers: Slide the drawer boxes back onto the glide tracks until they lock into place. Use the adjustment wheel on the glides to adjust the height if necessary.

9. Attach Backsplash: Apply silicone caulk to the unpolished side and bottom of the backsplash (E) and position it on the top (D) against the wall.

Care and Maintenance

Dust the vanity regularly with a soft, non-lint cloth. Clean the vanity with a gentle, non-abrasive household cleaner. For the stone top, use standard marble cleaning agents. Warning: Do not use products containing acetone, lemon, vinegar, or other acids, as these will damage the stone surface. Periodically reseal the stone top using an appropriate stone sealer.

Warranty

The manufacturer warrants this item against defects in materials and workmanship for a period of one (1) year from the date of original retail purchase. This warranty applies only to the original purchaser and does not cover damage from misuse, accidents, or improper installation.
