Installation Manual for Acroma 2333CL Lighting Fixture
A comprehensive installation guide for the Acroma 2333CL lighting fixture. Includes safety warnings, a list of required tools, hardware identification, step-by-step assembly instructions, and wiring diagrams.
Quick answers from the manual
Quick answer
- This manual provides instructions for the safe installation and assembly of the Acroma 2333CL lighting fixture, including wiring diagrams and hardware lists. p. 1, 2, 3
Key actions
- Turn off power at the circuit breaker before starting. p. 1
- Connect wires: White to White, Black to Black, Ground to Ground. p. 3
Problems and fixes
Electrical questions
Consult a qualified electrician.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | 3 x Max 60W Medium Base | Maximum wattage per bulb | p. 1 |
Where to find it in the PDF
- Safety and Pre-installation p. 1
- Assembly Guide and Hardware p. 2
- Installation Steps and Wiring p. 3
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This manual provides essential instructions for the safe installation of the Acroma 2333CL lighting fixture. Before beginning, ensure you have the necessary tools and have turned off the power at the circuit breaker. The fixture is designed for a 3 x Max 60W Medium Base bulb configuration.
Safety Information
- Turn off power: Always disconnect power at the circuit breaker or fuse box before starting installation.
- Voltage testing: Use a voltage tester to ensure wires are not live before touching them.
- Handling: Keep hands and feet dry. Use tools with insulated handles.
- Professional help: Consult a qualified electrician if you have any electrical questions or if new wiring is required.
Tools Required
- Phillips screwdriver
- Wire stripper
- Pliers
- Safety goggles
- Electrical tape

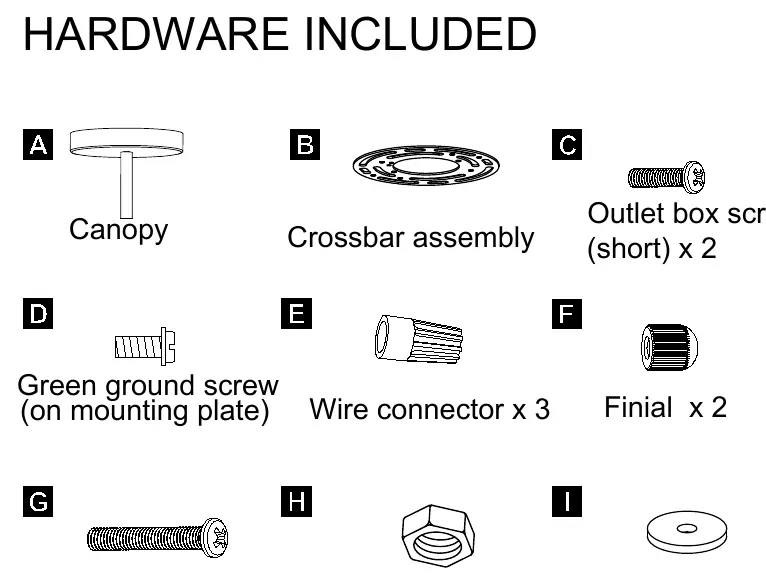

Hardware Included
Ensure all parts are present before starting:
- Canopy
- Crossbar assembly
- Outlet box screws (short) x 2
- Green ground screw
- Wire connectors x 3
- Finials x 2
- Support screws (long) x 2
- Hex nuts x 4
- Flat washers x 2
- Glass shades x 3
- Socket sleeves x 3
Installation Steps

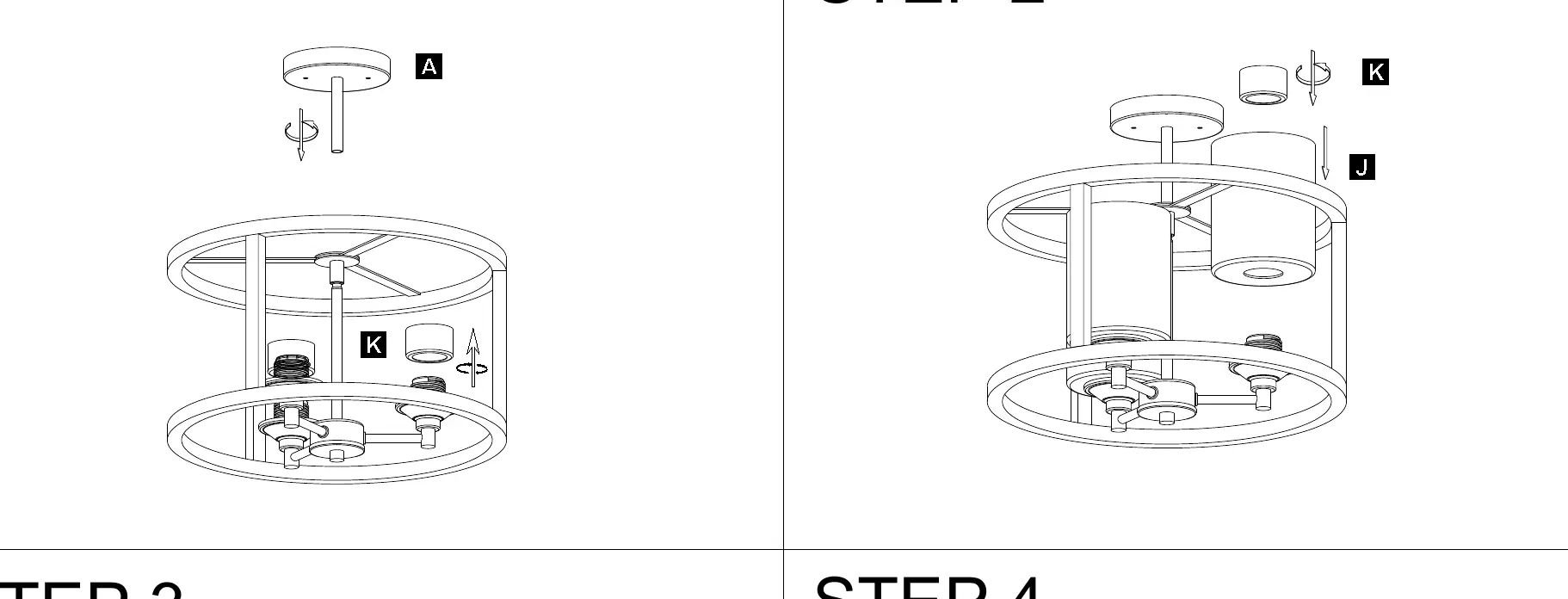

- Assembly: Determine the required length of the stem or chain. Assemble the fixture components as shown in the diagrams.
- Socket Preparation: Install the socket sleeves (K) and glass shades (J) onto the fixture.
- Wiring: Connect the fixture wires to the supply wires using wire connectors:
- Connect White supply wire to White or identified fixture wire.
- Connect Black supply wire to Plain or Black fixture wire.
- Connect Bare or Green ground wire from supply to the fixture ground wire or green ground screw.
- Mounting: Attach the mounting plate to the junction box, hang the fixture, and secure it using the provided hardware.
Warranty
The manufacturer provides a one (1) year warranty from the date of purchase, covering defects in materials and workmanship under normal use. This warranty does not cover damage resulting from misuse, abuse, accidents, or faulty installation.
Practical help
Common problems
Fixture does not light up
Verify that the circuit breaker is on and that all wire connections are secure and correctly matched.
Unsure about wiring connections
Consult a qualified electrician to ensure compliance with local electrical codes.
Before use
- Turn off power at the circuit breaker or fuse box.
- Verify all hardware components are present.
- Ensure you have the required tools (screwdriver, wire stripper, pliers).
- Read all safety instructions thoroughly.
- Ensure hands are dry before handling electrical components.
Show more Show less
Specs in practice
- 3 x Max 60W Medium Base
- The fixture accommodates up to 3 light bulbs, each with a maximum wattage of 60W, using a standard medium base.
Images and diagrams
- The wiring diagram illustrates the correct connection of supply wires to fixture wires using wire nuts.
- Assembly steps demonstrate the sequence of attaching the canopy and securing the glass shades.
Model compatibility
- Designed for standard junction boxes.
- Requires standard medium base bulbs.
