Installation Guide for Acroma 2305ASCR 5-Light Chandelier
A complete installation and assembly guide for the Acroma 2305ASCR 5-Light Chandelier. Includes wiring instructions, hardware list, and safety precautions.
Quick answers from the manual
Quick answer
- This manual provides instructions for assembling and installing the Acroma 2305ASCR 5-Light Chandelier, including wiring diagrams and safety precautions. p. 1, 3, 4
Key actions
- Turn off power at the circuit breaker before starting installation. p. 1
First start
- Assemble the fixture by attaching the down rods, glass, and socket sleeves, then mount the canopy to the junction box and connect the wires. p. 3, 4, 5
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Wattage | 60W | Maximum power per bulb | p. 1 |
Where to find it in the PDF
- Safety and Tools p. 1
- Assembly Guide and Hardware p. 3
- Installation Steps p. 4, 5
Table of contents
Important Safety Information
Before beginning installation, read and understand all instructions. Failure to do so may result in electrical shock, fire, or other injuries. Always turn off the power at the circuit breaker or fuse box before starting. If you have any electrical questions, consult a qualified electrician.
Tools Required
- Phillips screwdriver
- Wire stripper
- Pliers
- Safety goggles
- Electrical tape
Hardware Included
Ensure all parts are present before starting assembly:
- Canopy
- Mounting assembly
- Outlet box screws (short) x 2
- Hex nuts x 2
- Wire connectors x 3
- Flat washers x 2
- Finals x 2
- Chain end loops x 6
- Chains x 2
- Connector rings x 2
- Down rods x 2
- Glass shades x 5
- Socket sleeves x 5
Assembly and Installation
Step 1-3: Fixture Assembly
- Attach the down rods to the fixture body.
- Install the socket sleeves and glass shades onto the fixture.
- Connect the chain end loops and connector rings to the fixture.
Step 4: Wiring
- Connect the white supply wire to the white or identified fixture wire using wire nuts.
- Connect the black supply wire to the plain or black fixture wire using wire nuts.
- Connect the ground wire from the supply to the fixture ground wire or the green ground screw.
Step 5-6: Mounting
- Attach the mounting assembly to the junction box.
- Hang the fixture from the ceiling using the chains.
- Secure the canopy to the mounting assembly using the provided nuts and washers.
Warranty
The manufacturer provides a one (1) year warranty from the date of purchase, covering defects in materials and workmanship under normal use. This warranty does not cover damage due to misuse, abuse, accidents, or faulty installation.
Practical help
Common problems
Fixture does not light up
Check all wire connections, ensure bulbs are screwed in properly, and verify the circuit breaker is turned on.
Fixture is loose or unstable
Ensure the mounting assembly is securely attached to the junction box and the canopy nuts are fully tightened.
Before use
- Turn off power at the circuit breaker or fuse box
- Verify all hardware is present according to the included list
- Gather required tools: Phillips screwdriver, wire stripper, pliers, safety goggles, electrical tape
- Consult a qualified electrician if you are unsure about wiring
Show more Show less
Specs in practice
- Number of Lights
- 5
Images and diagrams

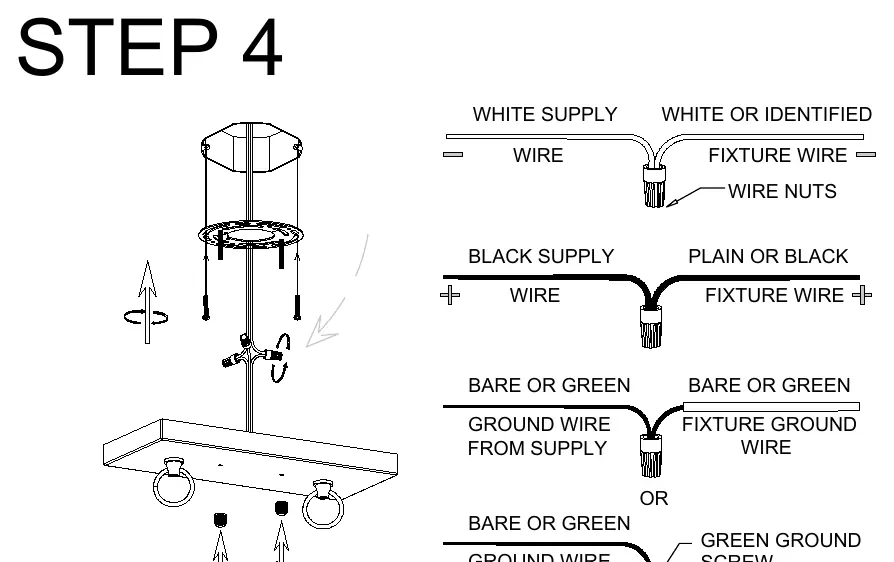

- Step 4 illustrates the correct wiring connections: White to White, Black to Black, and Ground to Ground/Green screw.
Model compatibility
- Requires a standard electrical junction box
- Not for use with non-standard electrical systems without professional consultation
