Installation Instructions for ACROMA 2407AZBG 7-Light Chandelier
A comprehensive installation guide for the ACROMA 2407AZBG 7-Light Chandelier. This manual includes safety warnings, a list of required tools, hardware inventory, step-by-step assembly instructions, and a detailed wiring diagram.
Quick answers from the manual
Quick answer
- This document provides installation instructions for the ACROMA 2407AZBG 7-Light Chandelier, including safety warnings, hardware lists, and step-by-step assembly and wiring procedures. p. 1, 2, 3
Key actions
- Turn off power p. 1
- Assemble fixture p. 3
- Connect wires p. 3
Problems and fixes
Electrical questions
Consult a qualified electrician.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base | Base type for bulbs | p. 1 |
| Max Wattage | 60W | Maximum power per bulb | p. 1 |
| Bulb Count | 7 | Number of bulbs required | p. 1 |
Where to find it in the PDF
- Safety and Pre-installation p. 1
- Hardware and Assembly Guide p. 2
- Installation Steps p. 3
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
Before beginning the installation, read and understand all instructions. Failure to follow these guidelines can lead to electrical shock, fire, or other injuries. Always turn off the main power at the circuit breaker or fuse box before starting any work. If you have any electrical questions, consult a qualified electrician.
Tools Required
The following tools are required for installation (not included):
- Phillips screwdriver
- Wire stripper
- Pliers
- Safety goggles
- Electrical tape
Hardware Included
Ensure all parts are present before starting:
- Mounting plate
- Wire connectors (3)
- Outlet box screws (short, 2)
- Flat washers (2)
- Green ground screw
- Finial
- Chain (2)
- Chain end loops (4)
- Canopy
- Tubes (2)
Assembly and Installation
Follow these steps to install your chandelier:
- Step 1: Assemble the chain and canopy components as shown in the diagram. Attach the chain end loops to the chain and the fixture.
- Step 2: Connect the lanyard to the mounting bracket. This helps hold the fixture in place while you make the necessary electrical connections.
- Step 3: Attach the mounting plate to the junction box using the provided screws.
- Step 4: Make the electrical connections. Connect the white supply wire to the white or identified fixture wire, the black supply wire to the plain or black fixture wire, and the ground wire to the green ground screw or the fixture ground wire. Secure all connections with wire nuts.
Warranty
The manufacturer provides a one (1) year warranty from the date of purchase, covering defects in materials and workmanship under normal use. The warranty does not cover damage caused by misuse, abuse, accidents, modifications, or faulty installation.
Practical help
Common problems
Fixture does not light up after installation
Verify that the circuit breaker is on, check all wire connections for security, and ensure bulbs are properly seated in the sockets.
Unsure about wiring configuration
Consult a qualified electrician or local authorities for code requirements if you are unsure about the wiring process.
Before use
- Turn off the main power supply at the circuit breaker or fuse box.
- Ensure hands and feet are dry before touching any wires.
- Verify all hardware components are included in the package.
- Gather all required tools: Phillips screwdriver, wire stripper, pliers, safety goggles, and electrical tape.
- Place the fixture on a soft, non-abrasive surface during assembly to avoid damage.
Show more Show less
Specs in practice
- 7 x Max 60W Candelabra Base
- The fixture is designed to hold 7 bulbs with a Candelabra base, with a maximum power rating of 60 Watts per bulb.
Images and diagrams
- Step 1: Shows the assembly sequence of the chain, loops, and canopy.
- Step 2: Illustrates using the lanyard to support the fixture during wiring.

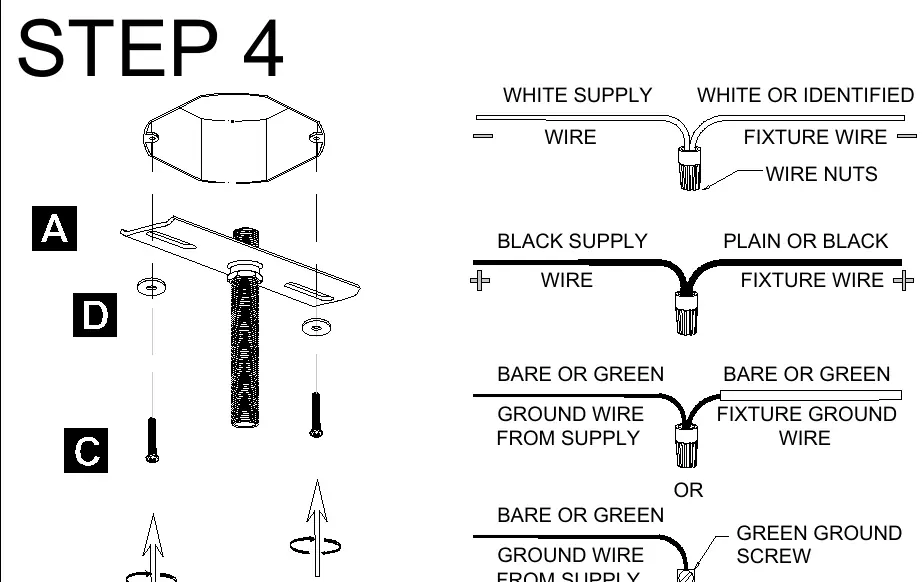

- Step 4: Provides the wiring diagram for connecting supply wires to fixture wires.
Model compatibility
- This fixture is rated for dry locations.
- Requires a standard junction box for mounting.
