User Manual for Acurite 00891A2 Thermometer

Quick guide from the manual

This thermometer features a clock, indoor temperature, indoor humidity, and a wired temperature sensor for outdoor readings. Before using the device, ensure you remove the clear protective film from the LCD screen. The device requires one AA alkaline battery (not included) to operate.

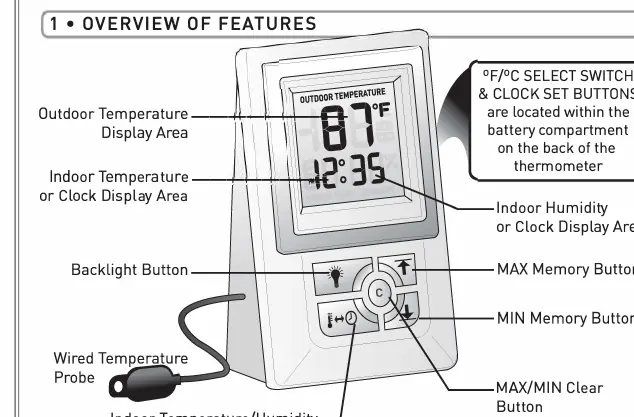

Overview of features

The thermometer includes the following controls and display areas:

• Outdoor Temperature Display Area
• Indoor Temperature or Clock Display Area
• Indoor Humidity or Clock Display Area
• Backlight Button
• MAX/MIN Memory Buttons
• Indoor Temperature/Humidity or Time Display Mode Button
• °F/°C Select Switch and Clock Set Buttons: Located inside the battery compartment on the back of the unit.

Setup

To set up the thermometer:

1. Slide the battery compartment cover open.
2. Install one fresh AA alkaline battery. Ensure the positive (+) and negative (-) polarity markings match the markings inside the compartment.
3. Use the switch inside the battery compartment to select between Celsius (°C) or Fahrenheit (°F).
4. Replace the battery cover.

Placement

Indoor Monitor: Place the unit in an area free of water, dust, and direct heat, as these can affect the accuracy of the readings.

Outdoor Wired Sensor: The wired probe must be placed outside. You can route the wire through a window, ensuring the window frame does not pinch or cut the wire. The sensor can be mounted using the provided adhesive pad or the integrated screw/nail hole.

Operation

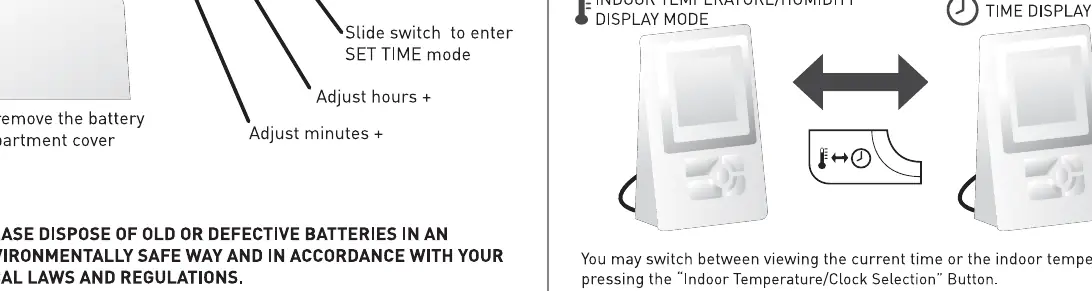

Display Modes: Press the Indoor Temperature/Clock Selection button to toggle between viewing the current time and the indoor temperature.

MAX/MIN Memory: Press the MAX/MIN button for temperature or humidity to view the recorded maximum and minimum values. The MAX and MIN indicators will appear on the display. To clear the currently selected MAX/MIN values, press the C button.

Specifications

• Wired Probe Temperature Range: -58°F to 140°F (-50°C to 70°C)
• Humidity Range: 20%-90% RH
• Battery: 1 x AA alkaline battery

Note: The thermometer will display LO or HI if temperature or humidity readings exceed the specified ranges.

Safety and Disposal

Follow the polarity diagram in the battery compartment. Do not mix old and new batteries or different types of batteries. Do not use rechargeable batteries. Dispose of old or defective batteries in an environmentally safe way and in accordance with local laws and regulations.
