ADEO SHEYLA 02P2 TV Stand Assembly Instructions
A comprehensive assembly guide for the ADEO SHEYLA 02P2 TV stand. Includes a complete hardware list, step-by-step installation instructions, and weight capacity specifications.
Table of contents
Manual images
Click an image to enlargeQuick Assembly Guide
The ADEO SHEYLA 02P2 TV stand requires approximately 1.5 hours for assembly. Ensure you have a clear workspace and a screwdriver before beginning. The assembly process involves 13 distinct steps, starting with the preparation of the top and bottom panels, followed by the installation of internal dividers and the final door adjustments.

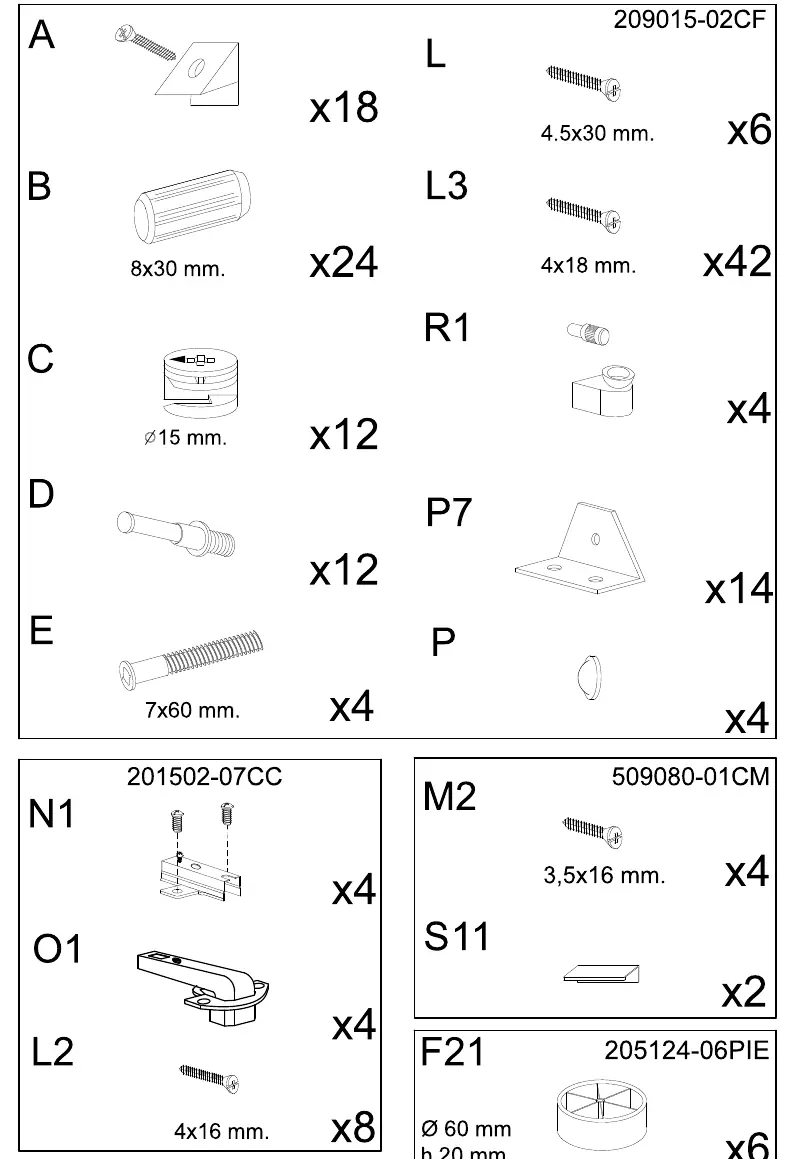

Hardware List
Before starting, verify that you have all the necessary components. The hardware kit includes various screws, dowels, and fittings labeled with letters (A, B, C, D, E, L, L3, R1, P7, P, N1, O1, L2, M2, S11, F21). Refer to the hardware page in the manual to match the quantities and types of screws required for each step.
Assembly Steps

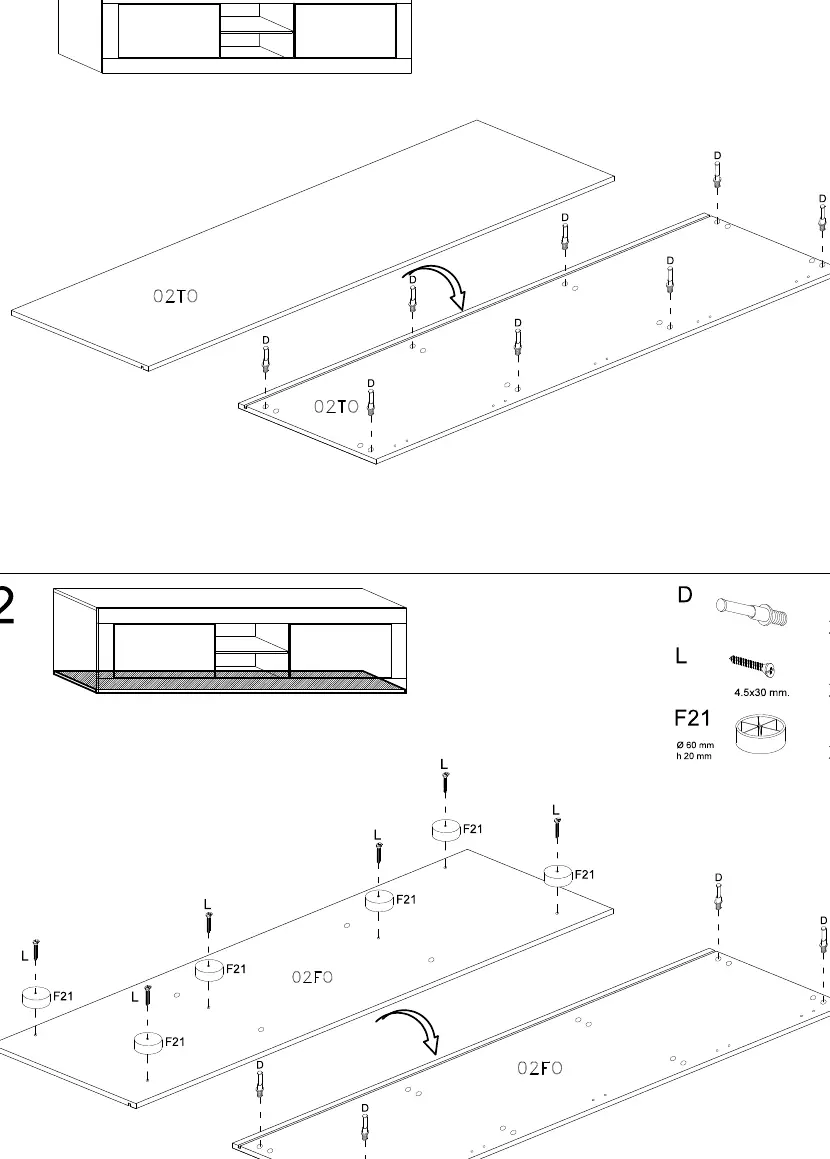

- Preparation: Insert the required fittings (D) into the top panel (02TO).
- Base Assembly: Attach the feet (F21) and fittings (D, L) to the bottom panel (02FO).
- Structure: Connect the side panels (01FI) and internal dividers (01TR) using dowels (B) and cam locks (C).
- Main Frame: Secure the vertical panels to the bottom panel using screws (E).
- Top Panel: Attach the top panel (02TO) to the assembled structure.
- Back Panel: Secure the back panel using the provided corner brackets (A).
- Internal Fittings: Install the shelf supports (P7) and brackets (N1) onto the internal panels (01FAL).
- Shelf Installation: Mount the internal shelves (02FASI) onto the supports.
- Final Assembly: Attach the top frame and complete the structure.
- Door Installation: Attach the hinges (O1) to the side panels (01SP) using screws (L2).
- Adjustment: Mount the doors and use the adjustment screws on the hinges to align them correctly.
Weight Capacity and Adjustments
The TV stand has specific weight limits to ensure safety and stability:
- Top Surface: Maximum load capacity is 30 kg.
- Internal Shelf: Maximum load capacity is 5 kg.
If the doors are not aligned properly after installation, use the adjustment screws on the hinges (shown in step 13) to fine-tune the door position horizontally and vertically.
Manufacturer information
ADEO
Practical help
Common problems
Doors are misaligned or rubbing against the frame
Use the adjustment screws on the hinges (detailed in step 13) to adjust the door position horizontally and vertically until they hang straight.
Structure feels unstable
Ensure all cam locks (C) are fully tightened and that all screws (E, L, L2) are securely fastened according to the assembly steps.
Before use
- Clear a workspace of at least 1.5 hours of assembly time
- Verify all hardware components match the quantities listed on page 4
- Ensure you have a screwdriver available
- Check that the floor surface is level before placing the unit
- Verify the weight of your TV does not exceed 30 kg
Specs in practice
- Max Load (Top)
- 30 kg
- Max Load (Shelf)
- 5 kg
- Assembly Time
- 1.5 hours
Images and diagrams
- Hardware list (Page 4) uses letter codes (A-F21) to identify specific screws and fittings

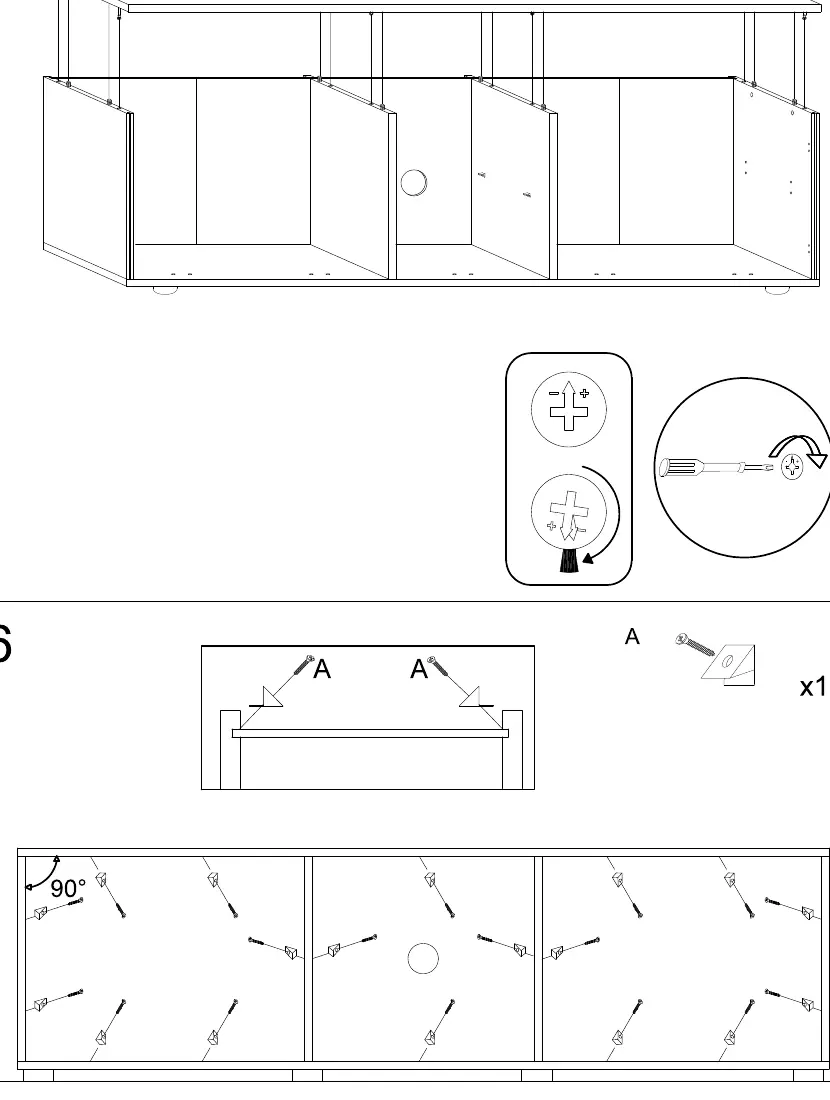

- Steps 1-13 provide visual guidance on where to place each screw and panel
- Step 13 illustrates hinge adjustment mechanisms
