Owner's Manual for Alorair Sentinel SLGR 1400X Dehumidifier
Quick guide for the Alorair Sentinel SLGR 1400X dehumidifier, covering technical specifications, SLGR technology, filtration system, and operational benefits for moisture control.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

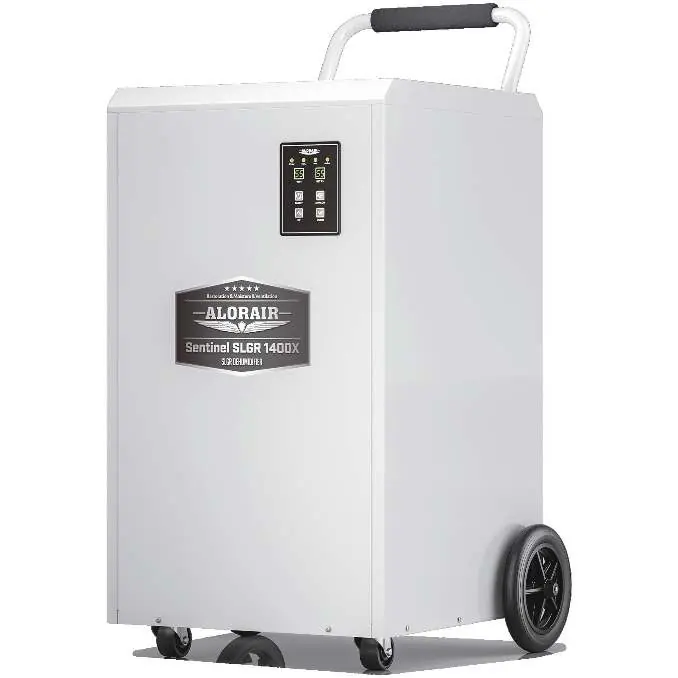

The Alorair Sentinel SLGR 1400X is a high-capacity, low-temperature commercial dehumidifier designed for professional water damage restoration and carpet cleaning. It utilizes advanced SLGR (Super Low Grain Refrigerant) microchannel technology to effectively remove moisture in damp, cool environments, such as basements, living rooms, and garages. The unit is equipped with a built-in condensate pump and drain tube for automatic water removal.
How SLGR technology works
The unit uses a specialized air-to-air heat exchanger that cools incoming air closer to its dew point before it passes over super-cooled evaporator coils. This is paired with a microchannel aluminum condenser, which increases heat dispersion by 50% and improves overall energy efficiency. This process allows the unit to extract more moisture even in low-humidity conditions where conventional dehumidifiers struggle.
Filtration system
The Sentinel SLGR 1400X features a two-stage filtration system:
- Pre-filter: Captures larger particles.
- MERV-8 and MERV-10 filters: Trap finer contaminants, including mold spores, dust, debris, pet dander, and allergens.
The unit also utilizes a Cold Catalyst to decompose and absorb formaldehyde and other toxic gases, helping to clear odors and purify indoor air.
Technical specifications
- Operating Voltage: 115 V / 60 Hz / 5.4 A
- Capacity (AHAM, 80°F, 60% RH): 140 Pints
- Max. Capacity (90°F, 90% RH): 275 Pints
- Airflow: 440 CFM, 680 CMH
- Coverage Area: Up to 3,800 Sq. Ft.
- Temperature Range: 33 - 102 °F
- Sound Pressure Level: 60.3 dBA
- Weight: 124.3 lbs
Contact information
For support, contact AlorAir Solutions, Inc. at 14752 Yorba Ct, Chino, CA 91710, US. Email: [email protected]. Website: www.alorair.com. Phone: (888)-990-7469.
Official resources from the manual
Manufacturer information
AlorAir Solutions Inc.
Practical help
Common problems
High humidity levels leading to pests and mold
Operate the Sentinel SLGR 1400X to maintain indoor humidity levels below 50%.
Need for manual water tank emptying
The unit is equipped with a built-in condensate pump and drain tube for automatic drainage.
Before use
- Ensure the unit is placed in a suitable environment (living rooms, basements, garages).
- Check that the drain tube is correctly connected for automatic drainage.
- Verify that the MERV-8 and MERV-10 filters are properly installed.
- Ensure the power supply matches the 115V/60Hz requirement.
Specs in practice
- SLGR Technology
- Super Low Grain Refrigerant technology for efficient moisture removal in low-humidity conditions.
- AHAM Capacity
- Moisture removal rate measured at 80°F and 60% relative humidity (140 Pints).
- Cold Catalyst
- A feature that decomposes and absorbs toxic gases like formaldehyde to improve air quality.
Images and diagrams
- The unit features a 360-degree rotating wheel system (two 8-inch and two 2-inch wheels) for easy mobility.
- The control panel provides digital control for humidity management.

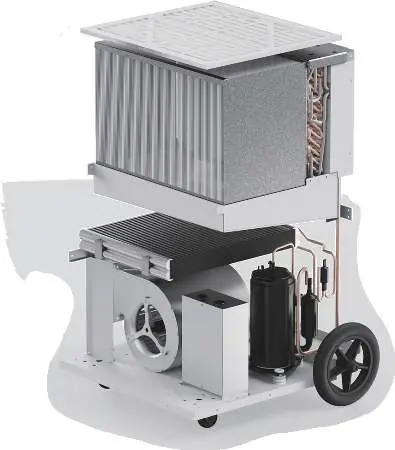

- The internal diagram shows the air-to-air heat exchanger and microchannel aluminum condenser layout.
Model compatibility
- Designed for professional water damage restoration and carpet cleaning.
- Suitable for large spaces up to 3,800 square feet.
- Effective in low-temperature and low-humidity environments.
