User Manual for Amazon Basics 288 LED Strip Light
Comprehensive user guide for the Amazon Basics 288 LED Strip Light. Includes installation instructions, safety precautions, series connection guidelines, maintenance, fuse replacement, and technical specifications.
Quick answers from the manual
Quick answer
- The Amazon Basics 288 LED Strip Light is an 18-foot decorative light string for indoor and outdoor use. It operates at 120V and supports connecting up to 3 strips in series. p. 1, 4, 6
Key actions
- Mounting the strip p. 5
- Connecting in series p. 6
First start
- Check for damage and verify voltage p. 4
Problems and fixes
Fuse replacement
Slide open the fuse access cover on the plug, remove the old fuse, and replace with a max 3 Amp, 125 Volt fuse.
p. 7Maintenance and reset
- Cleaning p. 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated voltage | 120 V~, 60 Hz | Power input requirements | p. 9 |
| Rated wattage | 43.2 W | Power consumption | p. 9 |
Where to find it in the PDF
- Safety Instructions p. 3, 4
- Installation p. 5
- Fuse Replacement p. 7
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Amazon Basics 288 LED Strip Light is designed for indoor and outdoor decorative use. Before installation, ensure the product is free from transport damage and that your power supply voltage matches the product rating. Always connect to a Ground Fault Circuit Interrupting (GFCI) outlet when used outdoors. Do not exceed the maximum connection limit of 3 strip lights in series.

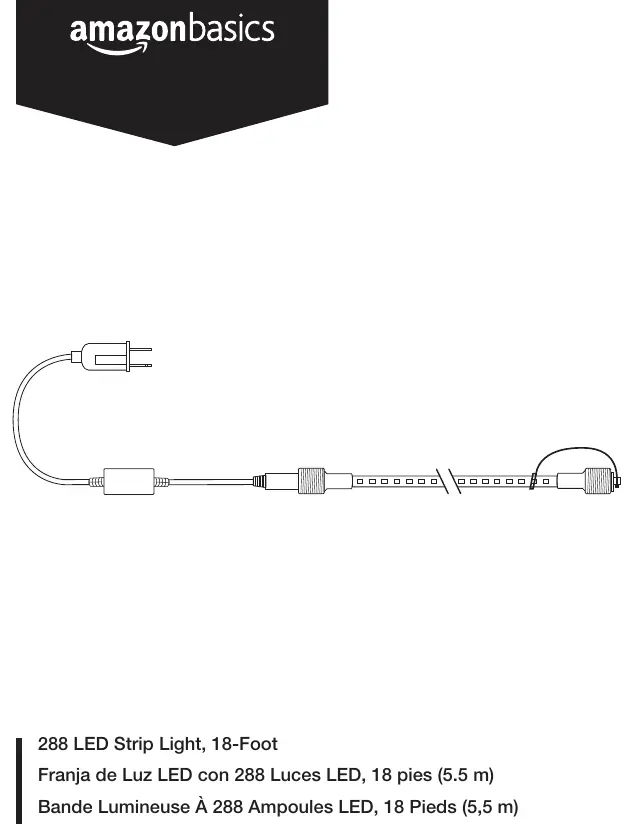

Product Description
The package includes the LED strip light and mounting hardware. Key components include:
- Female cord connector: Used for connecting additional strips.
- LED lamp: Non-replaceable light source.
- Attachment plug with fuse: Contains the replaceable fuse.
- Mounting clip and screw set: Used to secure the strip to a surface.
Installation
Follow these steps to install the light strip:
- Determine the installation location and lay the product in place before assembly.
- Fix the product directly to the structural support using the provided mounting clips and screws.
- Connect the plug to a suitable electrical outlet.
Connecting in Series
You can connect additional rope lights to extend the length:
- Unscrew the end cap on the female cord connector.
- Remove the end plug.
- Connect the male cord connector from the additional set.
- Tightly screw the end cap back on to secure the connection.
- Warning: Do not combine more than 3 strip lights in total.
Cleaning and Maintenance
To ensure safety and longevity, follow these guidelines:
- Cleaning: Unplug the device before cleaning. Wipe with a soft, slightly moist cloth. Do not immerse in water or use corrosive detergents, wire brushes, or abrasive scourers.
- Inspection: Before use, inspect the product for cut, damaged, or frayed wire insulation, cracks in lampholders, or loose connections. Discard if damaged.
- Storage: Store in a cool, dry location protected from sunlight. Avoid undue strain on conductors and wires.
User Servicing: Fuse Replacement
If the fuse blows, it indicates an overload or short-circuit. To replace the fuse:
- Unplug the product from the outlet.
- Grasp the plug and slide open the fuse access cover on top of the plug towards the blades.
- Use a pointed object to carefully push the fuse out of the socket.
- Replace with a new fuse (max. 3 Amp, 125 Volt).
- Slide the fuse access cover closed.
Warning: Do not replace the plug itself, as it contains a safety device. If the plug is damaged, discard the product.
Technical Specifications
- Rated voltage: 120 V~, 60 Hz
- Rated wattage: 43.2 W
- Lamp type: LED (x288), non-replaceable
- Fuse type: Max. 3 Amp, 125 Volt
Practical help
Common problems
Fuse blown
Unplug the product, remove the fuse access cover on the plug, and replace the fuse with a max 3 Amp, 125 Volt fuse.
Damaged wire or insulation
Do not use the product. Inspect carefully before use and discard if insulation is frayed, cut, or if there are loose connections.
Outdoor usage safety
Must be connected to a Ground Fault Circuit Interrupting (GFCI) outlet.
Before use
- Check the product for transport damages.
- Verify that the power supply voltage and current rating match the product label.
- Ensure the installation location is suitable for the strip length.
- Keep packaging materials away from children due to suffocation risk.
Specs in practice
- Rated voltage
- 120 V~, 60 Hz (Standard US household power).
- Rated wattage
- 43.2 W (Total power consumption of the strip).
Images and diagrams
- The installation diagram shows the use of mounting clips and screws to secure the strip to a surface.
- The series connection diagram illustrates unscrewing the end cap to attach another light strip.
- The fuse replacement diagram shows the location of the fuse compartment on the plug.
Model compatibility
- Do not combine more than 3 strip lights in series.
- Not intended for permanent installation.
- For household use only; not for commercial use.
