User Manual for Amica 2015C(GX)2.334eETsDHbS Electric Range
Comprehensive user guide for the Amica 2015C(GX)2.334eETsDHbS electric range. This manual provides detailed instructions on installation, safe operation of the ceramic cooktop and oven, cleaning procedures, maintenance, and troubleshooting.
PDF source: CS · summary: English
Quick answers from the manual
Quick answer
- The Amica 2015C(GX)2.334eETsDHbS is an electric range with a ceramic cooktop and electric oven. It requires a professional electrical installation and should be cleaned after every use to maintain performance. p. 1, 17, 32
Key actions
- Set the current time on the electronic programmer after power connection. p. 19, 22
- Perform a burn-in cycle by heating the empty oven to 250°C for 30 minutes before first use. p. 19
First start
- Remove packaging, clean the interior, and run the oven at 250°C for 30 minutes. p. 19
Show 4 more answers Show less
Problems and fixes
Appliance does not work
Check household fuse.
p. 36Maintenance and reset
- To clean the oven using Steam Clean, pour 0.25L of water into a dish on the bottom level, set to 50°C and bottom heat for 30 minutes. p. 32
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230/400V~50 Hz | Power supply requirements | p. 37 |
| Max Power | 10.2 kW | Maximum power consumption | p. 37 |
Where to find it in the PDF
- Safety Instructions p. 4, 5, 6
- Installation p. 12, 13, 14, 15
- Operation p. 19, 20, 21, 22
- Cleaning and Maintenance p. 32, 33, 34, 35
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential instructions for the safe and efficient use of the Amica 2015C(GX)2.334eETsDHbS electric range. Before using the appliance, ensure it is properly installed by a qualified professional and that you have read all safety warnings.
Safety Instructions
- Children: Keep children under 8 years old away from the appliance unless supervised.
- Hot Surfaces: The appliance and its accessible parts become hot during use. Avoid touching heating elements.
- Fire Safety: Never leave the cooktop unattended when cooking with fat or oil. If a fire occurs, turn off the appliance and cover the flames with a lid or fire blanket. Never use water to extinguish grease fires.
- Cleaning: Do not use steam cleaners or abrasive cleaning agents on the glass surfaces.
Installation
The appliance must be installed by a qualified technician. Ensure the kitchen is well-ventilated. The cutout dimensions for the cooktop are 560mm x 490mm. The electrical connection must be performed according to the provided wiring diagrams (1N~, 2N~, or 3N~) and must include a safety switch with a minimum 3mm contact gap.
Cooktop Operation

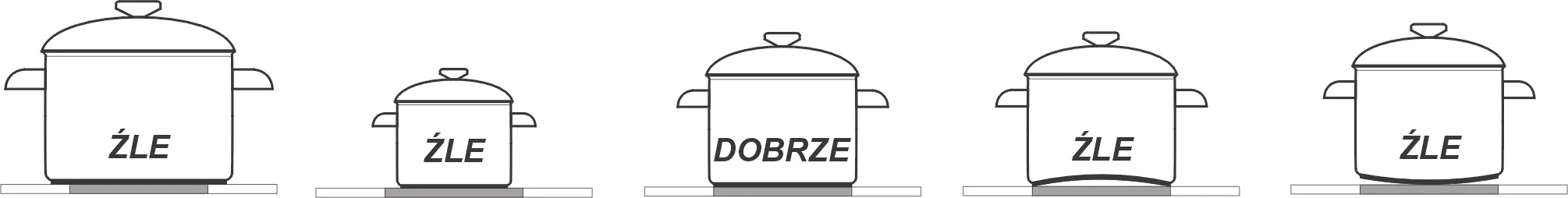

- Pot Selection: Use pots with flat, thick bottoms that match the size of the cooking zone.
- Residual Heat: The cooktop features a residual heat indicator. If the temperature exceeds 50°C, the indicator light will remain on.
- Dual Zone: Some zones may have a dual-circuit feature activated by turning the knob to the specific symbol.
Oven Operation
The oven features various heating modes, including conventional heating, grill, and fan-assisted modes. To start the oven, set the function knob and the temperature knob. The oven light and heating indicators (R and L) will signal operation. The "Steam Clean" function can be used for easier cleaning by placing 0.25L of water in a dish on the bottom level and heating at 50°C for 30 minutes.
Cleaning and Maintenance
- Daily Cleaning: Clean the cooktop and oven after every use.
- Glass Door: The inner glass pane can be removed for cleaning by unscrewing the side brackets.
- Light Bulb: If the oven light fails, replace the G9 230V 25W halogen bulb. Ensure the appliance is disconnected from power before replacement.
Manufacturer information
Amica S.A.
Practical help
Common problems
Appliance does not work
Check the household fuse and replace if blown.
Programmer display shows 0.00
The device was disconnected from power or experienced a power outage. Set the current time.
Oven light not working
The bulb is loose or damaged. Tighten or replace the G9 25W bulb.
Before use
- Remove all packaging materials.
- Clean the oven interior and cooktop.
- Remove accessories and wash them in warm water with dish soap.
- Heat the empty oven to 250°C for approximately 30 minutes to burn off factory preservatives.
- Set the current time on the electronic programmer.
Show more Show less
Images and diagrams
- The manual includes wiring diagrams for 1-phase, 2-phase, and 3-phase electrical connections.
- Diagrams illustrate the correct placement of pots on the cooktop zones.
- Step-by-step illustrations are provided for removing the oven door and inner glass pane.
Model compatibility
- Use only cookware suitable for glass-ceramic cooktops.
- Pots should have a diameter similar to the cooking zone.
