User Manual for Amica 2022C(GX) Series Cooker
Comprehensive user manual for the Amica 2022C(GX) series cooker. Includes installation instructions, electrical connection diagrams, operating procedures for the oven and ceramic hob, cleaning tips, and troubleshooting.
Quick answers from the manual
Quick answer
- This manual provides installation, operation, and maintenance instructions for the Amica 2022C(GX) series cooker. It covers electrical connection, oven functions, timer settings, and cleaning procedures. p. 1, 13, 18, 20
Key actions
- Set the current time on the electronic programmer p. 23
- Clean the oven using the Steam Cleaning function p. 36
First start
- Heat the oven to 250°C for 30 minutes and heat hob zones for 4 minutes without a pan. p. 20
Show 4 more answers Show less
Problems and fixes
The appliance does not work
Check the household fuse box; if there is a blown fuse, replace it.
p. 40Maintenance and reset
- To reset the programmer after a power cut, set the current time. p. 40
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage rating | 230/400V~50 Hz | Operating voltage | p. 41 |
Where to find it in the PDF
- Installation p. 13, 14, 15, 16
- Operation p. 20, 21, 22, 23
- Cleaning and Maintenance p. 35, 36, 37, 38
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe installation, operation, and maintenance of your Amica 2022C(GX) series cooker. Before first use, ensure the appliance is properly installed by a qualified electrician, remove all packaging, and perform the initial heating procedure: heat the oven to 250°C for 30 minutes and heat the hob zones for 4 minutes without a pan.
Description of the appliance
The cooker features a ceramic hob with multiple heating zones, an oven with various heating functions, and an electronic programmer for timing. Control knobs are located on the front panel for both the hob and the oven.
Installation
The appliance must be installed in a worktop with a thickness of 28-40 mm. Ensure the kitchen area is well-ventilated. The installation requires a gasket to be applied to the hob before fitting it into the worktop cutout. Electrical connection must be performed by a qualified professional according to the provided wiring diagrams (1-phase, 2-phase, or 3-phase).
Operation
The electronic programmer must be set to the current time before the oven can be used. You can set a kitchen timer, timed operation (automatic switch-off), or delayed timed operation. The oven offers various functions, including rapid preheating, grill, and ECO heating. The ceramic hob zones are controlled by turning the knobs to the desired heat level.
Cleaning and maintenance
Regular cleaning is essential for the longevity of the cooker. Use a special scraper for the ceramic hob to remove stubborn spills. The oven can be cleaned using the Steam Cleaning function: pour 250ml of water into a bowl on the first level, set the oven to 50°C for 30 minutes, then wipe clean. The oven door and inner glass panels can be removed for thorough cleaning.
Troubleshooting
If the appliance does not work, check the household fuse box. If the programmer display shows 0:00, reset the current time. If the oven light fails, tighten or replace the bulb.
Manufacturer information
Amica S.A.
Practical help
Common problems
The appliance does not work
Check the household fuse box; if there is a blown fuse, replace it.
The programmer display shows 0:00
The appliance was disconnected from the mains; set the current time.
The oven lighting does not work
The bulb is loose or damaged; tighten or replace the bulb.
Before use
- Remove all packaging materials
- Clean the interior of the oven and the hob
- Ensure the room is well-ventilated
- Heat the oven to 250°C for approximately 30 minutes
- Heat the hob zones for approximately 4 minutes without a pan
Show more Show less
Specs in practice
- Voltage rating
- 230/400V~50 Hz
- Power rating
- max. 10.2 kW
Images and diagrams
- Wiring diagrams for 1-phase, 2-phase, and 3-phase electrical connections
- Worktop cutout dimensions

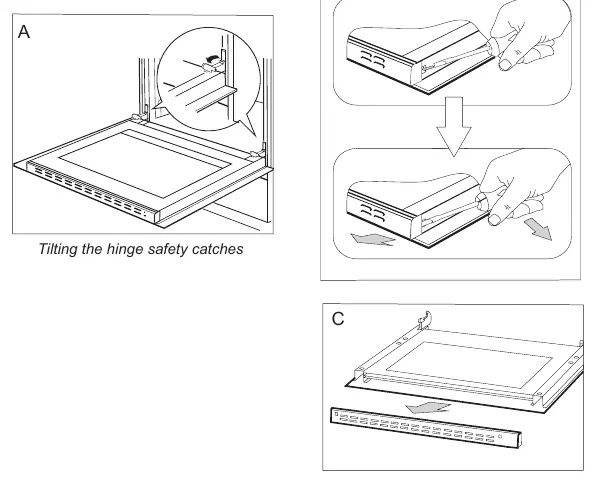

- Door removal and glass panel disassembly steps
- Hob zone layout and dimensions
Model compatibility
- Use pans with thick, flat bases
- Do not use pans with concave or convex bases
- Ensure pan diameter is at least as large as the heating zone
