Amica MM 3011 / MM 4011 Meat Grinder User Manual
Quick guide for Amica MM 3011 and MM 4011 meat grinders. Includes assembly, operation, cleaning, maintenance, and troubleshooting steps.
PDF source: polski · summary: English
Quick answers from the manual
Quick answer
- The Amica MM 3011/MM 4011 is a meat grinder with a 1000W nominal motor (2000W max). It is designed for household use and includes attachments for mincing, sausage making, and kebbe preparation. p. 1, 8, 14
Key actions
- Assemble the feeding tube with the worm shaft, knife, and screen, then attach to the motor unit. p. 3, 14
- Use the pusher to feed meat into the hopper; never use fingers. p. 9, 14
First start
- Thoroughly clean all parts that come into contact with food before the first use. p. 14, 15
Show 4 more answers Show less
Problems and fixes
Motor does not start
Check power connection and motor overload protection.
p. 15, 30Maintenance and reset
- If the motor overheats, unplug the appliance, let it cool to room temperature, then plug it back in. p. 15, 30
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Nominal power | 1000 W | Standard power consumption | p. 8, 16 |
| Maximum power | 2000 W | Peak power capacity | p. 8, 16 |
Where to find it in the PDF
- Assembly p. 3
- Disassembly p. 4
- Operation p. 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the Amica MM 3011 and MM 4011 meat grinders. The appliance is designed for household use only. Before first use, ensure all parts that come into contact with food are thoroughly cleaned. Do not exceed the maximum operating time of 10 minutes.
Product Description

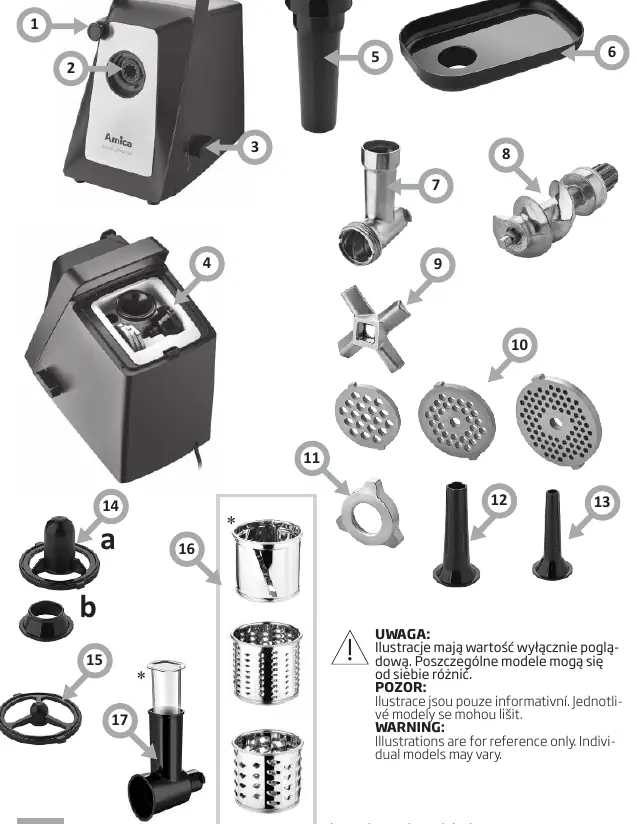

The meat grinder consists of the following main components: release button, motor unit, ON/OFF button, accessory tray, pusher, food tray, feeding tube, worm shaft, cutting knife, screens (coarse, medium, fine), screw head, sausage horns (big/small), kebbe spacers, and sausage spacer. Models MM 4011 also include shredders and a shredding tube.
Assembly and Operation
Assembly: Ensure the appliance is unplugged. Insert the worm shaft, cutting knife, and chosen screen into the feeding tube. Secure with the screw head. Attach the assembled feeding tube to the motor unit until it locks into place.
Mincing Meat: Assemble the unit as described. Defrost meat before grinding and remove bones, gristle, and sinews. Do not overload the feeding tube. Use the pusher to feed meat; never use fingers or other objects.
Sausages and Kebbe: Use the appropriate sausage horns or kebbe spacers. Ensure the sausage skin is wet to prevent sticking. Do not block air outlet grooves on the sausage horn.
Disassembly: Switch off and unplug the appliance. Press the release button to remove the feeding tube assembly. Follow the reverse order of assembly to disassemble parts.
Cleaning and Maintenance
Switch off and unplug the appliance before cleaning. Do not immerse the motor unit in water. Do not wash metal parts in a dishwasher. Wash removable parts with a soft brush in soapy water, rinse with clear water, and dry immediately. If the appliance will not be used for a long time, lightly coat the screen and knife with cooking oil to prevent rusting.
Troubleshooting
If the motor does not start, check the power plug and ensure the overload protection has not triggered. If the feeding tube is difficult to remove, ensure the release button is pressed. If grinding performance is poor, check that the knife, screen, and screw head are assembled correctly and the screw head is tightened.
Safety
The appliance is equipped with a thermal motor protector. If it overheats, it will switch off automatically. Unplug and let it cool to room temperature before restarting. Do not grind bones, nuts, or frozen meat. Keep the appliance and cord out of reach of children.
Technical Specifications
Rated voltage: 220-240V. Nominal power: 1000 W. Maximum power: 2000 W.
Manufacturer information
Amica S.A.
Practical help
Common problems
Motor does not start or knife does not rotate
Check if the power plug is inserted correctly. The motor overload protection may have triggered; allow the unit to cool down.
Feeding tube cannot be removed
Ensure the release button is fully pressed.
Poor grinding performance
Check that the cutting knife, screen, and screw head are assembled correctly and that the screw head is tightened.
Before use
- Wash all parts that come into contact with food
- Ensure the appliance is correctly assembled and locked
- Defrost meat completely before grinding
- Remove bones, gristle, and sinews from meat
- Ensure the power supply matches the nameplate voltage
Show more Show less
Specs in practice
- Nominal power
- 1000 W (standard operating power)
- Maximum power
- 2000 W (peak power capacity)
Images and diagrams

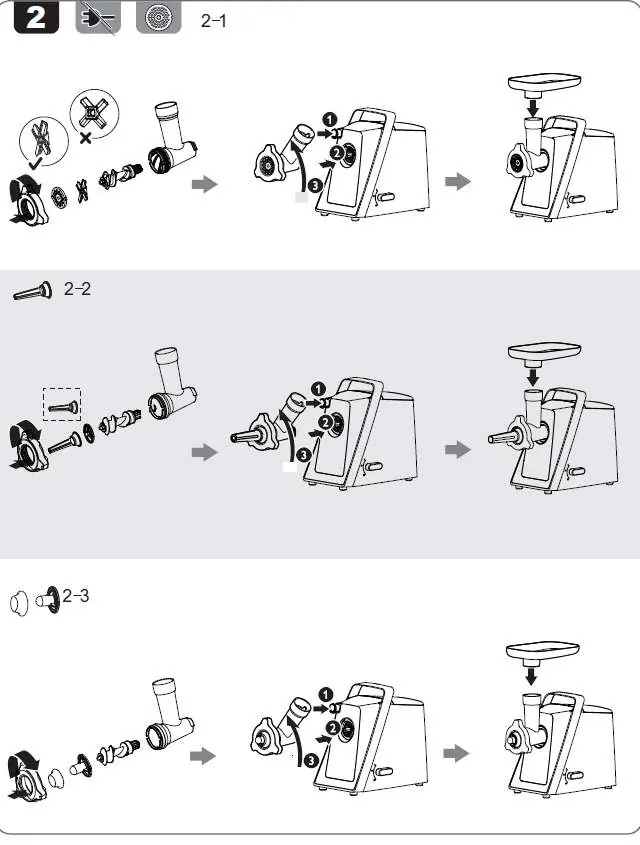

- Assembly diagrams show the correct sequence for installing the worm shaft, knife, and screens.

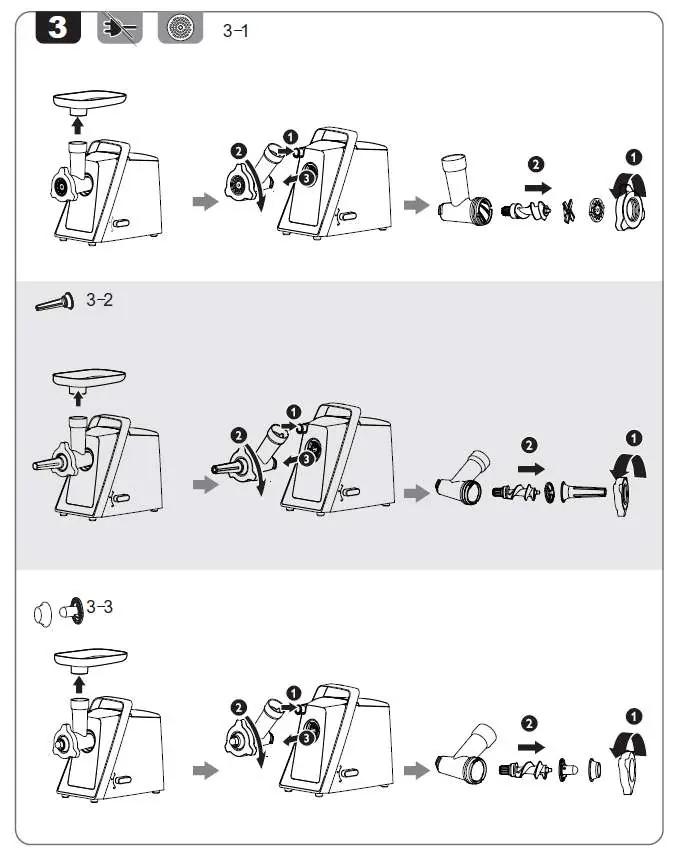

- Disassembly diagrams illustrate how to remove the feeding tube and attachments.

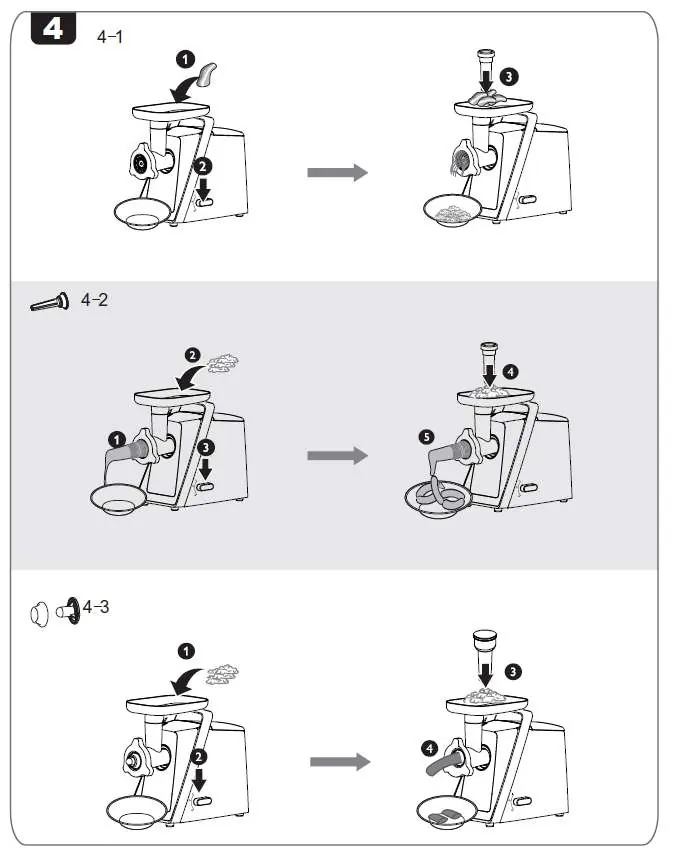

- Operation diagrams show the correct use of the pusher and feeding process.
Model compatibility

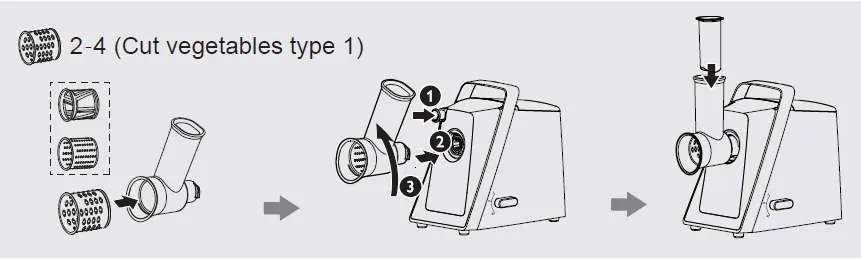

- MM 4011 model includes additional shredders and a shredding tube.
