User Manual for Aputure Amaran 200d LED Light
Quick guide for the Aputure Amaran 200d LED photography light. Includes setup instructions, manual and wireless operation, Bluetooth reset, and technical specifications.
Quick answers from the manual
Quick answer
- The Amaran 200d is a high-performance LED photography light. This manual covers setup, operation, wireless control via the Sidus Link app, and technical specifications. p. 1
Key actions
- Adjust brightness p. 1
- Reset Bluetooth p. 1
First start
- Remove the protective cover, mount the light on a tripod, connect the power cable, and press the power button. p. 1
Show 4 more answers Show less
Problems and fixes
Bluetooth reset fails
The LCD will display 'Failure' for 2 seconds.
p. 1Maintenance and reset
- Long press the Bluetooth Reset button to reset Bluetooth. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power Consumption | 250W | Maximum power draw | p. 1 |
| Color Temperature | 5500K | Daylight balanced | p. 1 |
Where to find it in the PDF
- Product Details and Installation p. 1
- Operations and Specifications p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Amaran 200d is a high-performance LED photography light. Before using the device, ensure you remove the protective cover from the COB LED. The light is designed for professional photography and is compatible with Bowens Mount accessories. Always operate the light in a well-ventilated area and avoid touching the LED surface.
Product Overview

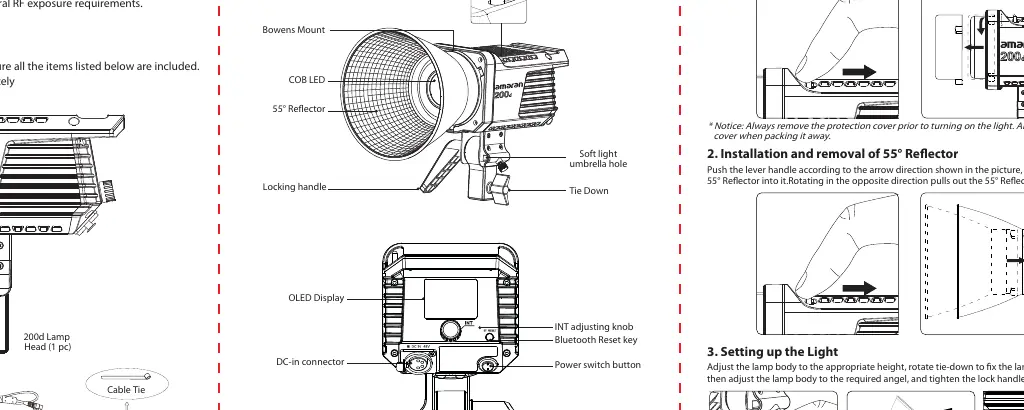

The Amaran 200d consists of the lamp head, which features a Bowens Mount, COB LED, OLED display, and control knobs. The package includes the lamp head, 55° hyper-reflector, protection cover, power cable, and steel wire rope.

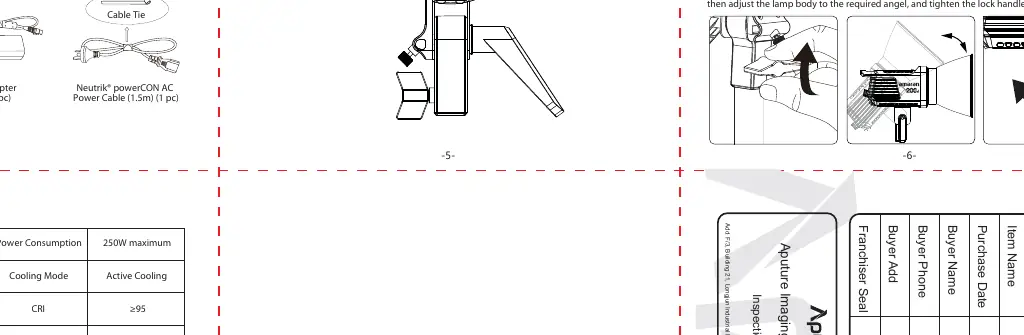

Installation
- Protection Cover: Always remove the protective cover before powering on the light. Re-install it when packing the light away.
- Reflector: To install the 55° reflector, push the lever handle in the direction of the arrow, rotate the reflector into the mount, and release. Reverse the process to remove it.
- Tripod Setup: Adjust the lamp body to the desired height, rotate the tie-down to secure it to the tripod, adjust the angle, and tighten the lock handle.

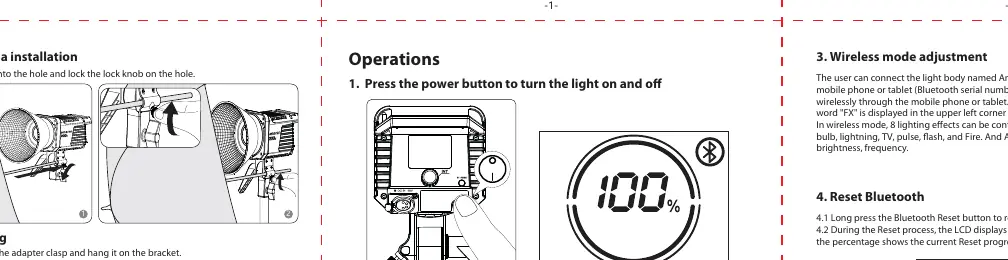

- Soft Light Umbrella: Insert the umbrella handle into the designated hole on the light body and tighten the lock knob.
Operations
Manual Control: Use the power button to turn the light on and off. Rotate the INT adjusting knob to change brightness in 1% increments (0-100%). Click the INT knob to quickly cycle through brightness levels: 20%, 40%, 60%, 80%, 100%.
Wireless Control
The light can be controlled wirelessly via the Sidus Link app. To connect, ensure Bluetooth is enabled on your mobile device. The app allows control of brightness, frequency, and 8 built-in lighting effects (paparazzi, fireworks, faulty bulb, lightning, TV, pulse, flash, and fire).

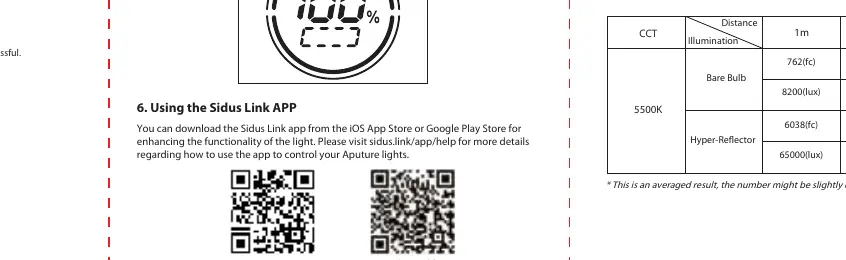

Bluetooth Reset
If you need to reset the Bluetooth connection, long-press the Bluetooth Reset button. The LCD will display "BT Reset" and the icon will flash. Once successful, the LCD will display "Success" for 2 seconds. If the reset fails, "Failure" will appear on the display.
Specifications
- Power Consumption: 250W maximum
- Color Temperature: 5500K
- CRI: ≥95
- TLCI: ≥96
- Cooling Mode: Active Cooling
- Dimensions: 207.5 x 154 x 164.8 mm
Manufacturer information
Aputure
Practical help
Common problems
Bluetooth connection failure
Long press the Bluetooth Reset button. If the LCD displays 'Failure', the reset was unsuccessful; try again.
Light does not turn on
Ensure the power cable is securely connected to a grounded outlet and the power switch is in the ON position.
Before use
- Remove the protective cover from the COB LED.
- Ensure the light is connected to a grounded outlet.
- Verify all items from the checklist are included in the box.
- Check that the power cable is not damaged.
Show more Show less
Specs in practice
- Power Consumption
- The maximum power draw of the unit is 250W.
Images and diagrams
- Bowens Mount Release Latch: Used to attach or detach light modifiers like the reflector.
- INT adjusting knob: Used for both manual brightness adjustment and cycling through preset levels.
Model compatibility
- Compatible with standard Bowens Mount lighting accessories.
- Supports Sidus Link App for wireless control via Bluetooth.
