User Manual for Water Tech Pool Blaster Aqua Broom Ultra Cordless Vacuum
Quick guide for the Water Tech Pool Blaster Aqua Broom Ultra cordless pool vacuum. Learn how to assemble, operate, clean, and maintain your device, including battery requirements and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Water Tech Pool Blaster Aqua Broom Ultra is a cordless vacuum designed for routine maintenance of swimming pools and spas. Important: This unit is designed for use with Alkaline batteries ONLY. Do not install Lithium-ion or rechargeable batteries, as this will cause a short circuit. Always switch the unit ON before submerging it in water to protect the motor shaft seal.
Product Description
The device consists of the following main components:
- Head Cover
- Filter Bag
- Power Head
- Battery Chamber
- Pole Adapter
- Pole Sections (Set of 3)
Assembly
Follow these steps to prepare your vacuum for use:
- Insert Filter Bag: Place the filter bag into the designated area within the head cover.
- Attach Head Cover: Secure the head cover onto the power head assembly.
- Attach Pool Pole: Connect the pole adapter to the unit and attach the pole sections as needed.
Operation
To operate the cleaner:
- Ensure fresh Alkaline batteries are installed correctly in the battery chamber.
- Switch the unit to the ON position.
- Crucial: Submerge the cleaner in water immediately after turning it ON to prevent damage to the motor shaft seal.
- To stop, switch the unit to the OFF position.
Maintenance
Proper maintenance ensures the longevity of your vacuum:
- After each use: Detach the power head from the battery chamber and remove the batteries.
- Filter Cleaning: Remove and clean the filter bag after every use.
- Storage: Always store the cleaner in a cool, dry indoor location. Do not store in direct sunlight or expose to extreme temperatures.
Safety Warnings
- Never allow children to operate this product.
- Do not operate the cleaner in the presence of flammable or combustible liquids.
- Keep hair, loose clothing, and body parts away from openings and moving parts.
- Do not use the cleaner for pool openings; it is designed for routine maintenance only.
- If battery liquid leaks, wash skin immediately with water and seek medical attention if it contacts eyes.
Disposal
Please respect local environmental regulations. Return non-working electrical equipment to a facility appointed by your municipality for proper recycling. Remove batteries before disposing of the product.
Practical help
Common problems
Motor does not run
Check that you are using fresh Alkaline batteries. Do not use Lithium-ion or rechargeable batteries.
Water seal damage
Always switch the unit ON before submerging it in water. Failure to do so may void the warranty.
Filter damage
Avoid picking up sharp objects that may tear or damage the filter bag.
Before use
- Ensure you have fresh Alkaline batteries.
- Verify that the filter bag is properly inserted.
- Check that the head cover is securely attached.
- Switch the unit ON before submerging in water.
Specs in practice
- Alkaline Batteries
- The only supported power source. Do not use rechargeable or Lithium-ion batteries.
- Pole Adapter
- Allows the attachment of standard pool poles for extended reach.
Images and diagrams

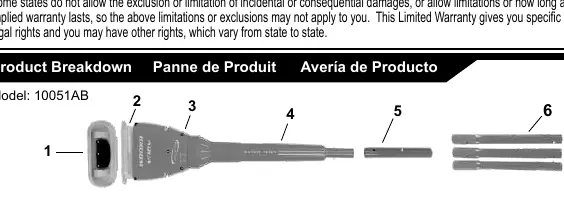

- Product Breakdown: Identifies the head cover, filter bag, power head, battery chamber, and pole components.
- Assembly: Shows the sequence for inserting the filter bag and attaching the head cover.
- ON/OFF: Illustrates the switch location and the requirement to turn on before submersion.
Model compatibility
- Designed for underwater use in swimming pools and spas only.
- Not intended for commercial use.
- Use only Water Tech accessories and filters.
