User Manual for Artika 12OUT-DS-MB LED Wall Light
Quick guide for the Artika 12OUT-DS-MB Dark Sky LED wall-mounted light. Includes installation steps, wiring instructions, sealing requirements, and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the Artika 12OUT-DS-MB Dark Sky LED wall-mounted light. It is suitable for both indoor and outdoor residential use. Always turn off the power at the circuit breaker before installation or maintenance.

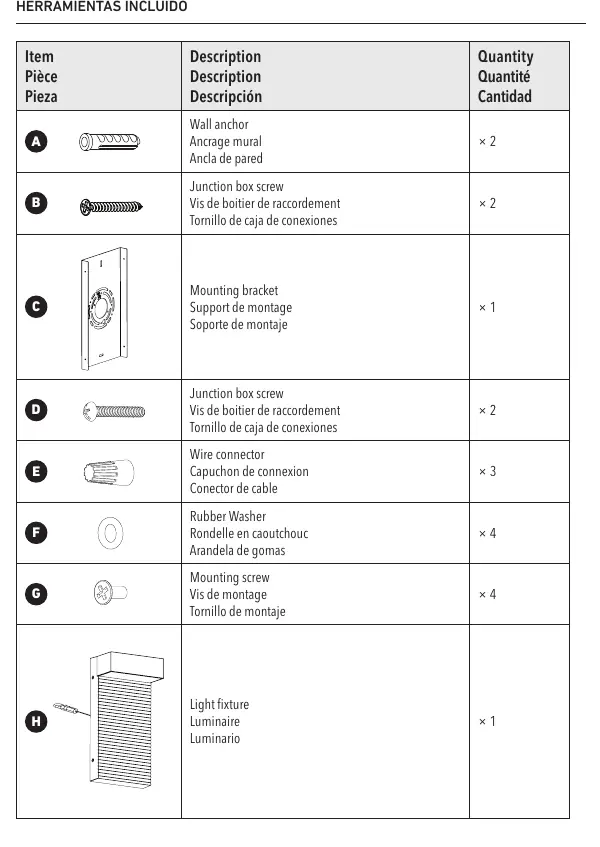

Included hardware
- Wall anchors (x2)
- Junction box screws (x2 + x2)
- Mounting bracket (x1)
- Wire connectors (x3)
- Rubber washers (x4)
- Mounting screws (x4)
- Light fixture (x1)
Installation steps

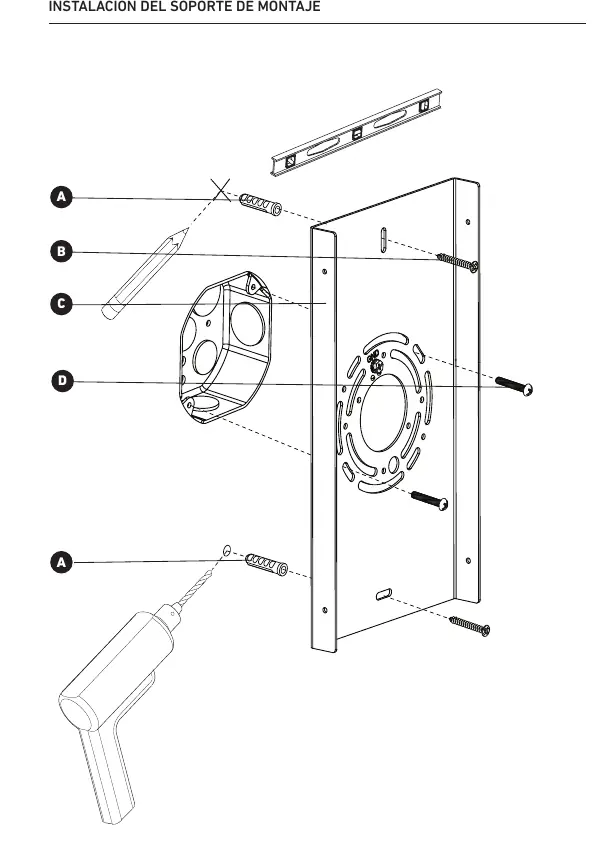

1. Mounting bracket installation
Use a pencil to mark the location for the wall anchors. Drill holes and insert the wall anchors. Secure the mounting bracket to the junction box using the provided screws.

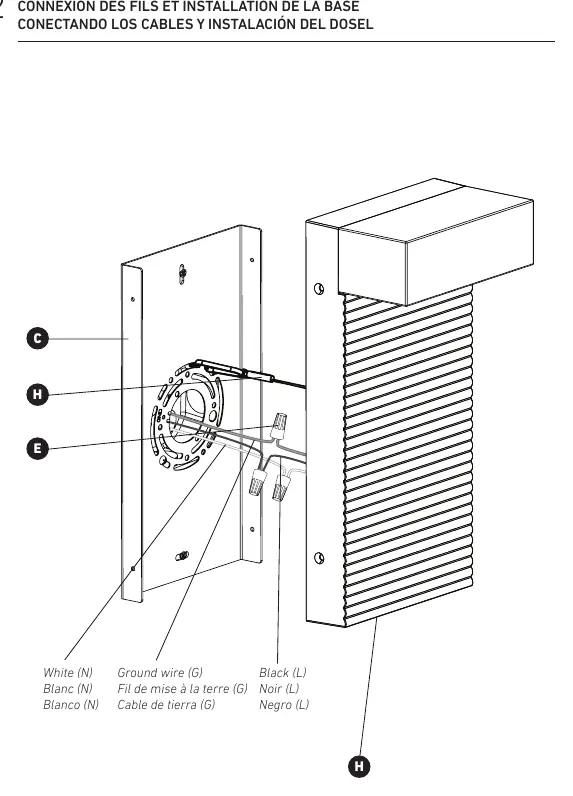

2. Connecting the wires
Connect the fixture wires to the house wires using the provided wire connectors: Black (L) to Black (L), White (N) to White (N), and the Ground wire (G) to the Ground wire (G).
3. Final installation
Secure the light fixture to the mounting bracket using the mounting screws and rubber washers.
4. Sealing
Apply sealant to the sides and top of the light fixture where it meets the wall. Important: Do not seal the bottom side of the backplate to allow moisture to drain.
Safety and warnings
If using a dimmer, it must be LED compatible. This product should be installed by a certified electrician in accordance with local building codes.
Manufacturer information
Artika
Practical help
Common problems
Light flickers or does not work with dimmer
Ensure the dimmer switch is LED compatible.
Moisture accumulation inside the fixture
Ensure the bottom side of the backplate is NOT sealed to allow for drainage.
Before use
- Turn off the main electrical supply at the circuit breaker.
- Ensure you have a screwdriver, pencil, level, and sealant.
- Verify the wall surface is suitable for mounting.
- Check that the dimmer switch (if used) is LED compatible.
Images and diagrams
- The installation involves mounting a bracket to the junction box, connecting the wires (Black to Black, White to White, Ground to Ground), and securing the fixture.
- Sealing is required on the top and sides, but the bottom must remain open for drainage.
Model compatibility
- Suitable for indoor or outdoor use.
- Requires LED-compatible dimmer if used.
