Artika C7 LED Wall Light Instruction Manual
Quick guide for installing and maintaining the Artika C7 LED wall light. Includes wiring diagrams, safety warnings, and installation steps.
Quick answers from the manual
Quick answer
- The Artika C7 LED wall light is intended for residential indoor or outdoor use. Installation must be performed by a certified electrician, and the main power must be turned off at the breaker before starting. p. 1, 4
Key actions
- Turn off the main electrical supply at the fuse box or circuit breaker before installation. p. 4
- Apply sealant around the fixture after installation. p. 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Minimum Clearance | 1.2 m (4 ft) | Required space around the light fixture | p. 5 |
Show 1 more answers Show less
Where to find it in the PDF
- Title and Contact Info p. 1
- Included Hardware and Warranty p. 2
- Installation Steps p. 3, 5, 6
- Safety Warnings p. 4
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Artika C7 LED wall light is designed for both indoor and outdoor residential use. Before beginning installation, ensure the main electrical supply is turned off at the circuit breaker. This product should be installed by a certified electrician in accordance with local building and electrical codes.
Included Hardware
- Mounting bracket
- Junction box screws
- Wire connectors
- LED wall light
- Decorative screws
Installation

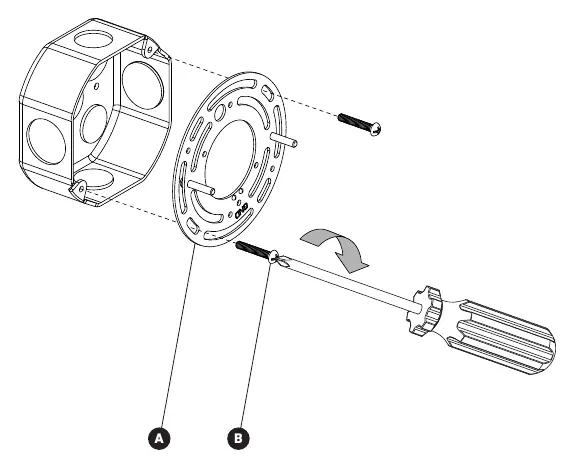

Mounting Bracket Installation:
- Ensure power is off.
- Attach the mounting bracket to the junction box using the provided junction box screws.

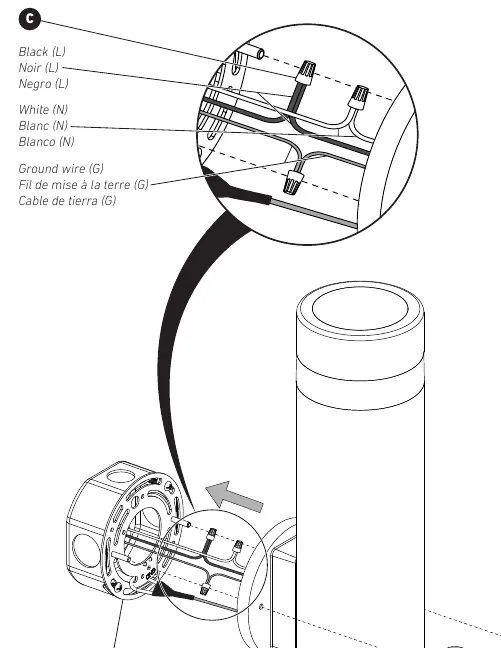

Wiring and Final Installation:
- Connect the wires using the provided wire connectors: Black (L) to Black (L), White (N) to White (N), and Ground (G) to Ground (G).
- Secure the LED wall light to the mounting bracket using the decorative screws.
- Apply sealant around the fixture to ensure a proper seal.
Safety and Maintenance
Important Safety Warnings:
- Risk of electrical shock: Always turn off the breaker at the panel before installation or maintenance.
- Do not use abrasive cleaners, alcohol, or organic solvents to clean the surface, as this may damage the finish.
- Failure to follow installation instructions voids the warranty.
Clearance Requirements:
- Maintain a minimum clearance of 1.2 meters (4 feet) around the fixture.
Manufacturer information
Artika
Practical help
Common problems
Fixture not working after installation
Verify that the main power is on and that all wire connections (Black, White, Ground) are secure and correctly matched.
Surface damage
Avoid using scouring pads, abrasive cleaners, alcohol, or organic solvents for cleaning.
Before use
- Turn off the main electrical supply at the fuse box or circuit breaker.
- Ensure you have a screwdriver and sealant ready.
- Verify the installation location allows for 1.2m (4 ft) of clearance.
- Confirm that the installation complies with local electrical and building codes.
- Check that all included hardware (bracket, screws, connectors) is present.
Show more Show less
Specs in practice
- Minimum Clearance
- The required distance of 1.2 meters (4 feet) that must be maintained around the light fixture for safe operation.
Images and diagrams
- The wiring diagram illustrates the connection of the Black (L), White (N), and Ground (G) wires using the provided wire connectors.
- The mounting diagram shows the correct orientation of the mounting bracket onto the junction box.
Model compatibility
- Suitable for indoor or outdoor residential use.
