Installation Manual for Artika Tallis LED Pendant Light 21PDT-TS5C-HD2WS
Quick guide for installing and adjusting the Artika Tallis LED Pendant Light (21PDT-TS5C-HD2WS). Includes wiring instructions, height adjustment, and color temperature settings.
Quick answers from the manual
Quick answer
- The Artika Tallis LED Pendant Light is a residential indoor fixture. Installation involves mounting the bracket, connecting the wires, and adjusting the height. It features selectable white color temperatures. p. 1, 3, 7, 8
Key actions
- Install mounting bracket p. 5, 6
- Connect wires p. 8
- Adjust height p. 7
- Select color temperature p. 10
First start
- Turn off power at the breaker before starting installation. p. 4
Show 3 more answers Show less
Problems and fixes
Interference
Reorient antenna or increase distance from the fixture.
p. 11Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Color Temperature | 2700K - 5000K | Selectable white technology | p. 10 |
Where to find it in the PDF
- Hardware List p. 2
- Installation Steps p. 3, 5, 6, 8
- Height Adjustment p. 7
- Selectable White Technology p. 10
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Artika Tallis LED Pendant Light is designed for indoor residential use. Before beginning installation, ensure the main power is turned off at the circuit breaker. This fixture features selectable white technology, allowing you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Installation should be performed by a certified electrician in accordance with local building codes.

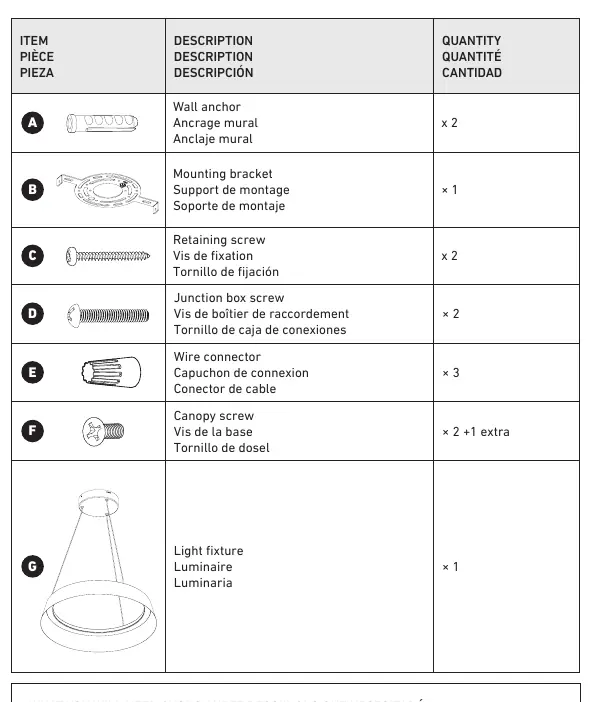

Included hardware
- Mounting bracket
- Wall anchors (x2)
- Retaining screws (x2)
- Junction box screws (x2)
- Wire connectors (x3)
- Canopy screws (x2 + 1 extra)
Installation

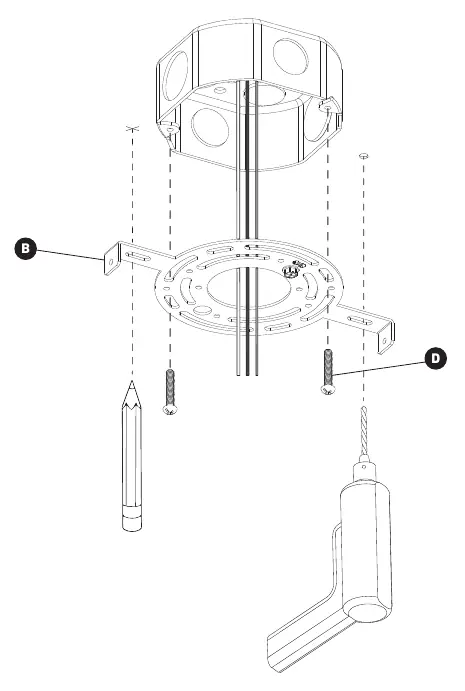

Mounting bracket installation: Secure the mounting bracket to the junction box using the provided junction box screws. If necessary, use the wall anchors for additional support.

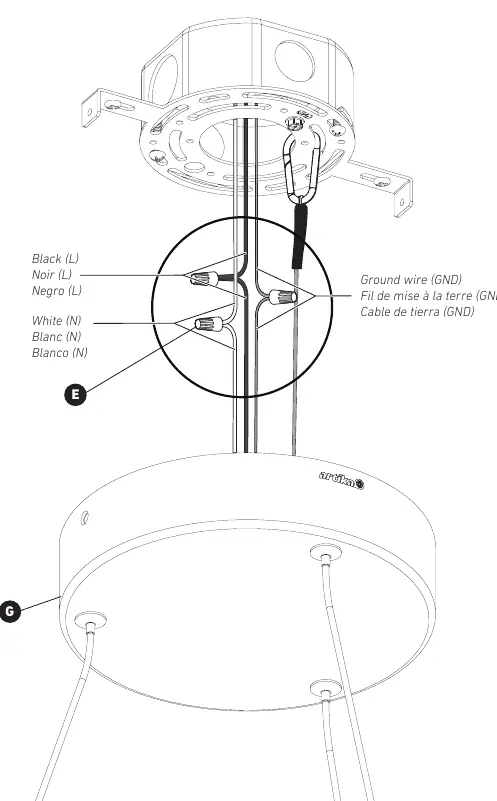

Wiring connection: Connect the fixture wires to the house supply wires using the provided wire connectors. Ensure the Black (L) wire connects to the live wire, the White (N) wire to the neutral wire, and the Ground (GND) wire to the ground wire.
Fixture installation: Attach the light fixture canopy to the mounting bracket using the canopy screws.
Height adjustment
To adjust the height of the pendant, you can either extend or retract the wire. To retract, pull the wire up into the canopy. To extend, press the release mechanism to allow the wire to slide down.
Selectable white technology
The fixture allows you to select the desired color temperature. Locate the switch on the fixture (usually on the top or side) and select between 2700K, 3000K, 3500K, 4000K, or 5000K. Ensure the protective film is removed if applicable.
Safety and warnings
- Turn off the main electrical supply at the fuse box or circuit breaker before installation or maintenance.
- Do not use outdoors.
- If using a dimmer, it must be LED compatible.
- Failure to follow instructions voids the warranty.
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on
Check that the circuit breaker is on and that all wire connections are secure.
Radio or TV interference
Reorient or relocate the receiving antenna, or increase the separation between the equipment and the receiver.
Before use
- Turn off main power at the circuit breaker.
- Verify that the dimmer switch (if used) is LED compatible.
- Ensure all hardware listed in the manual is present.
- Consult a certified electrician for installation if required by local codes.
Show more Show less
Specs in practice
- Selectable White
- Allows adjustment of color temperature between 2700K (warm) and 5000K (cool).
- Indoor use only
- The fixture is not rated for outdoor environments.
Images and diagrams
- Wiring diagram illustrates the connection of Black (L), White (N), and Ground (GND) wires using connectors.
- Height adjustment diagram shows how to retract or extend the wire through the canopy.
Model compatibility
- Requires LED compatible dimmer.
- For residential use only.
