Installation Manual for Artika Adeline LED Vanity Light
Quick guide for installing and using the Artika Adeline LED vanity light. Includes step-by-step mounting instructions, wiring diagrams, and color temperature adjustment settings.
Quick answers from the manual
Quick answer
- This manual provides instructions for installing the Artika Adeline LED vanity light, including mounting, wiring, and adjusting the color temperature. p. 1, 3, 5, 6
Key actions
- Install the mounting bracket to the junction box. p. 5
- Connect the fixture wires to the house supply wires. p. 6
- Adjust the color temperature using the switch on the fixture. p. 8
First start
- Ensure power is off, install the mounting bracket, connect wires (Black-Black, White-White, Ground-Ground), secure the fixture, and select the desired color temperature. p. 3, 5, 6, 7
Problems and fixes
Light flickering or not working with dimmer
Ensure the dimmer switch is LED compatible.
p. 4Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Color Temperature | 3000K, 4000K, 5000K | Selectable white technology settings. | p. 8 |
Where to find it in the PDF
- Included Hardware p. 2
- Installation Steps p. 3, 5, 6, 7
- Selectable White Technology p. 8
- Warranty p. 10
Table of contents
Manual images
Click an image to enlargeImportant Information
This manual provides instructions for the installation and operation of the Artika Adeline LED vanity light. The product is intended for residential, indoor use only. It is recommended that the installation be performed by a certified electrician in accordance with local electrical and building codes.

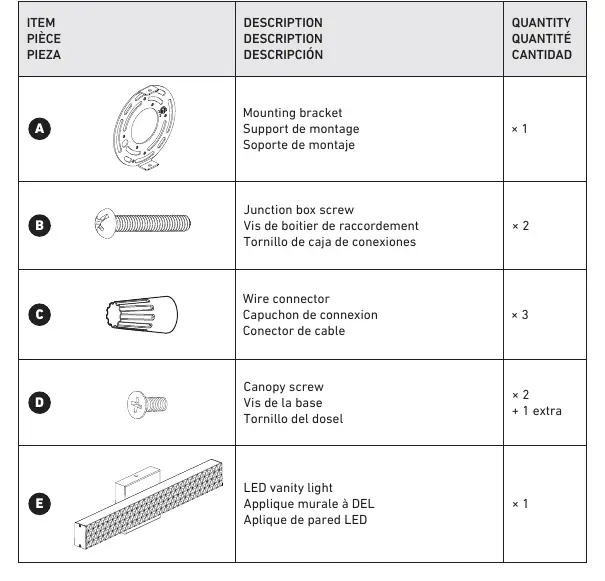

Included Hardware
- Mounting bracket (x1)
- Junction box screws (x2)
- Wire connectors (x3)
- Canopy screws (x2 + 1 extra)
- LED vanity light fixture (x1)
Installation Steps
1. Mounting Bracket Installation
Ensure the main electrical supply is turned off at the circuit breaker before starting. Secure the mounting bracket to the junction box using the provided junction box screws.
2. Wire Connection
Connect the fixture wires to the house supply wires using the provided wire connectors:
- Connect the Black (L) wire from the fixture to the Black (L) supply wire.
- Connect the White (N) wire from the fixture to the White (N) supply wire.
- Connect the Ground (GND) wire from the fixture to the Ground (GND) supply wire.

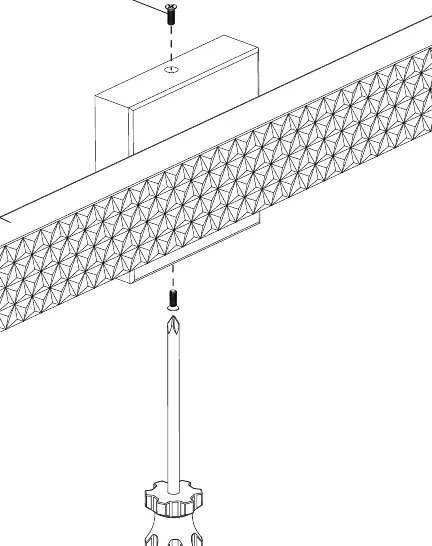

3. Fixture Installation
Align the fixture with the mounting bracket and secure it using the canopy screws.
Selectable White Technology
The fixture features selectable white technology, allowing you to choose between three color temperatures: 3000K, 4000K, and 5000K. Use the switch located on the fixture to select your preferred setting.
Safety and Warnings
- Risk of electrical shock: Always turn off the power at the circuit breaker before installation or maintenance.
- Dimmer compatibility: If using a dimmer switch, it must be LED compatible.
- Usage: Do not use outdoors.
Warranty and Support
Artika For Living Inc. offers a three-year limited warranty on manufacturing defects for residential use. For support, visit www.artika.com, email [email protected], or call 1-866-661-9606.
Official resources from the manual
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on
Verify that the circuit breaker is on and that all wire connections are secure.
Flickering or buzzing with dimmer
Ensure the dimmer switch installed is specifically rated as LED compatible.
Before use
- Turn off the main electrical supply at the circuit breaker
- Ensure you have a screwdriver
- Verify all hardware (bracket, screws, connectors) is present
- Confirm the dimmer switch is LED compatible (if applicable)
Specs in practice
- Selectable White Technology
- Allows adjustment of color temperature between 3000K (warm), 4000K (neutral), and 5000K (cool).
Images and diagrams

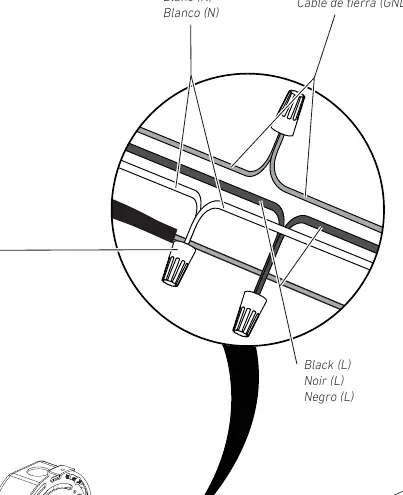

- The wiring diagram illustrates connecting the fixture's black, white, and ground wires to the corresponding house supply wires using wire connectors.
Model compatibility
- Indoor use only
- Residential use only
- Requires LED compatible dimmer
