av link 128.846UK 4K HDMI 2.0 Splitter

Quick guide from the manual

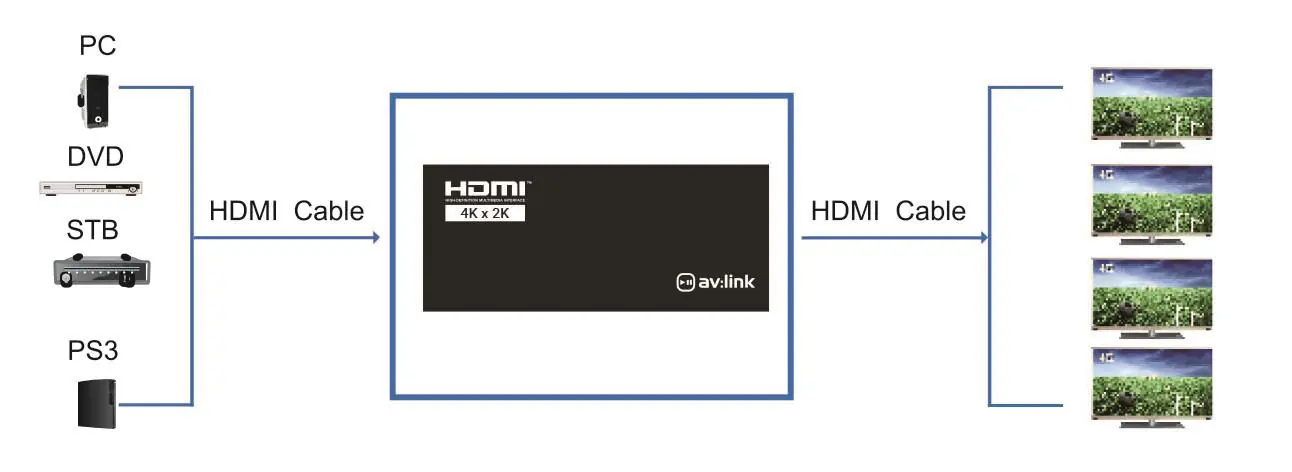

To set up your av link 128.846UK HDMI splitter, connect your source device (e.g., PC, DVD player, STB, or console) to the Input port using an HDMI cable. Connect up to four display devices to the Output ports (1-4). Finally, connect the supplied 5V power adaptor to the DC/5V port and plug it into a mains outlet. Blue LEDs on the front panel will illuminate when the source and display devices are connected and powered on.

Product description

The av link 128.846UK is a slimline 4K HDMI splitter designed to distribute a single HDMI source signal to up to 4 displays simultaneously. It features a tough metal chassis and gold-plated connectors for optimal signal transfer. It supports high-resolution video up to 3840 x 2160 @ 60Hz and various audio formats including DTS-HD, Dolby True, and DSD.

Connection instructions

For optimal performance, please adhere to the following connection guidelines:

• HDMI Cables: Always use 4K certified HDMI leads to maintain 4K resolution.
• Cable Length Limits: The maximum combined cable length depends on the resolution:
  • 4K @ 30Hz or FHD: 35 meters maximum.
  • 4K @ 60Hz: 10 meters maximum.
• Power: Only use the 5V power adaptor provided by the manufacturer.

Technical specifications

• HDMI Version: 2.0b
• Video Resolution: Up to 3840 x 2160 @ 60Hz
• HDCP Version: 2.2
• Audio Formats: DTS-HD, Dolby True, DTS, Dolby-AC3, DSD
• Power Supply: Input 100-240V (50/60Hz), Output DC 5V/1A
• Dimensions: 178 x 67 x 23mm
• Weight: 230g

Safety warnings

• Do not immerse the device in water or expose it to damp conditions.
• Do not use the device if it appears damaged.
• Disconnect the power supply from the mains when the device is not in use for long periods.
• Do not attempt to repair or disassemble the unit, as this will invalidate your warranty.
