av:link 129.200UK Speaker Wall Mount
Installation guide for the av:link 129.200UK speaker wall mount. Includes step-by-step mounting instructions for wood and brick walls, weight capacity limits, and adjustment procedures.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The av:link 129.200UK is a speaker wall mount designed for indoor use. It has a maximum weight capacity of 3.5kg (7.7lbs). Do not hang large-size speakers from these brackets to avoid instability of the center of gravity. The mount allows for 140° of swivel and +20°/-20° of tilt adjustment. Maintenance should be performed every three months to ensure the bracket remains secure.
Installation
Before starting, ensure you have the correct tools: a drill, level, pencil, and screwdriver. The installation process differs based on the wall material.
Wood Stud Installation
- Disassemble the mount components.
- Mark the position on the wall using a level.
- Drill a hole using a 3mm (1/8") drill bit to a depth of 25mm (1.0").
- Secure the wall plate directly to the wood stud using the provided screws (C).
Brick or Masonry Installation
- Disassemble the mount components.
- Mark the position on the wall using a level.
- Drill a hole using a 5.5mm (7/32") drill bit to a depth of 30mm (1.2").
- Insert the wall plugs (D) into the holes.
- Secure the wall plate to the wall using the provided screws (C).
Assembly and Adjustment
Once the wall plate is securely attached:
- Attach the speaker bracket to the speaker using the provided screw (B).
- Slide the speaker assembly onto the wall plate.
- Tighten the locking knob to secure the position.

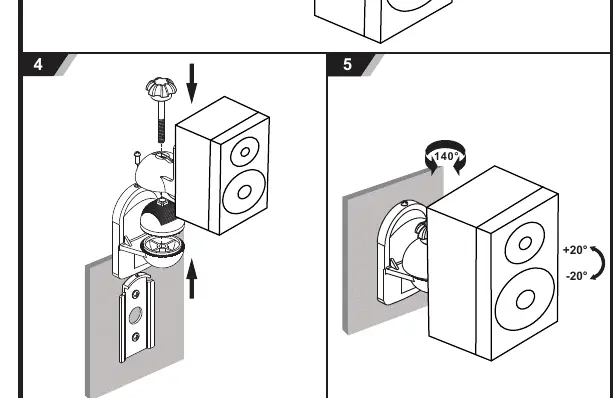

- Adjust the speaker angle as needed: the mount supports 140° of horizontal swivel and +20°/-20° of vertical tilt.
Maintenance
Check that the bracket is secure and stable at least every three months. If any parts are missing or faulty, contact your distributor for a replacement.
Practical help
Common problems
Speaker feels unstable or tips over
Ensure you are not hanging a large-size speaker. The mount is rated for a maximum weight of 3.5kg (7.7lbs).
Mounting plate is loose
Verify that you used the correct drill bit size (3mm for wood, 5.5mm for brick) and that the wall material is solid enough to support the mount.
Before use
- Verify the wall type (wood stud or brick/masonry).
- Ensure the speaker weight is under 3.5kg (7.7lbs).
- Check that all parts (A, B, C, D) are present.
- Gather necessary tools: drill, level, pencil, and screwdriver.
- Ensure the installation location is suitable for indoor use.
Specs in practice
- 3.5kg (7.7lbs) Rated
- The maximum weight capacity the mount can safely support.
Images and diagrams

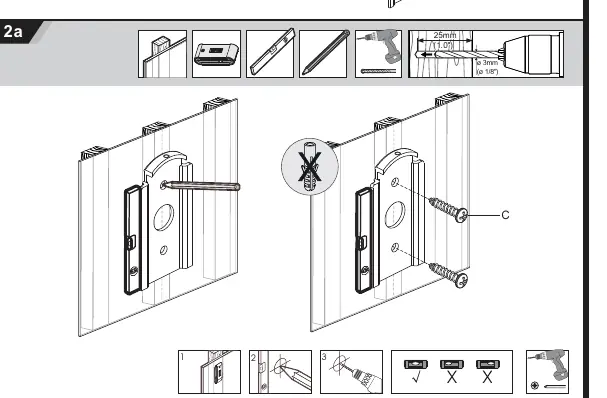

- Step 2a illustrates wood stud installation using a 3mm drill bit.

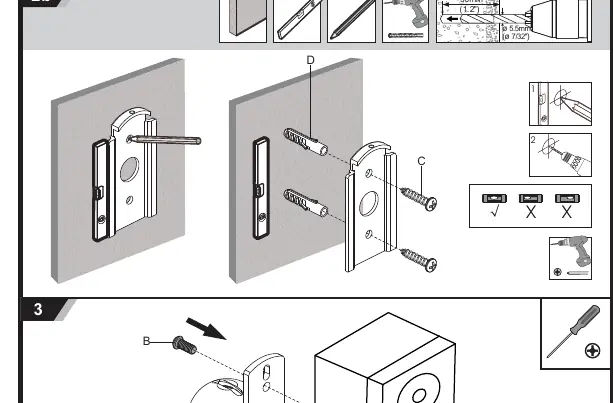

- Step 2b illustrates brick/masonry installation using a 5.5mm drill bit and wall plugs.
Model compatibility
- Designed for indoor use only.
- Compatible with wood studs and brick/masonry walls.
- Not suitable for large-size speakers.
