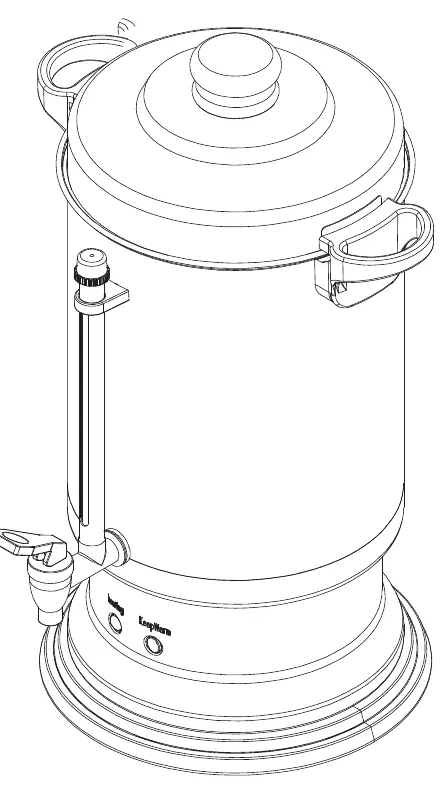

User Manual for Avantco 177CUC60 60 Cup Stainless Steel Coffee Urn
Quick guide for the Avantco 177CUC60 60 Cup Stainless Steel Coffee Urn. Includes usage instructions, cleaning, de-scaling, safety warnings, and technical specifications.
Quick answers from the manual
Quick answer
- The Avantco 177CUC60 is a 60-cup coffee urn. To operate, fill with water between MIN/MAX, insert the percolator tube and filter basket, add coffee grounds, lock the lid, and switch ON. p. 5
Key actions
- Brewing coffee p. 5
- Cleaning the urn p. 6
First start
- Remove all packaging, fill with water, boil, and discard to clear residue. p. 5
Problems and fixes
Urn stops heating
Check if boil dry protection triggered (wait to cool) or if the thermal fuse has blown.
p. 6, 7Maintenance and reset
- The boil dry protection resets automatically after the unit cools down (up to 8 minutes). p. 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 950W | Power consumption | p. 4 |
| Voltage | 110-120V/60Hz | Electrical requirements | p. 4 |
| Volume | 60 Cup | Capacity | p. 4 |
Where to find it in the PDF
- Safety Information p. 3
- Specifications p. 4
- Usage Instructions p. 5
- Cleaning and Maintenance p. 6
- Electrical Circuit Diagram p. 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Avantco 177CUC60 is a 60-cup stainless steel coffee urn designed for indoor use. Before first use, remove all packaging, fill with water, boil, and discard the water to clear any residue. Always ensure the percolator tube and filter basket are properly installed before brewing coffee. The unit features boil-dry protection and a thermal fuse for safety.
Important Safety Information
- Use only with a grounded 110-120V AC socket.
- Never operate the machine without at least 3 cups of water in the tank.
- Do not immerse the urn in water.
- Always switch OFF and unplug before moving or cleaning.
- Keep hands and face clear from the top of the urn when removing the lid.
- Do not use outdoors.
How to Use
- Place the urn on a flat, level surface.
- Turn the lid counter-clockwise to open.
- Pour water into the tank, ensuring it is between the MIN and MAX indicators.
- Place the percolator tube and filter basket in the tank.
- Add the desired amount of coffee grounds to the basket.
- Secure the lid by turning it clockwise.
- Plug in the unit and switch ON. The HEATING light will indicate the process has begun.
- Tilt the faucet lever to dispense coffee.
Cleaning and Maintenance
Always clean the urn immediately after each use. Unplug the unit and allow it to cool completely before cleaning.
- Wash the interior, filter unit, and lid with a non-abrasive detergent.
- Use a bottle brush to clean the faucet.
- Wipe the exterior with a soft cloth. Do not use benzene, thinners, or harsh abrasives.
De-Scaling
Scale buildup can affect performance. To de-scale:
- Use a commercial de-scaling agent (e.g., Urnex Dezcal) or a natural method.
- Natural method: Slice a lemon into four pieces, wrap in a cloth, place in the urn, fill to MAX, boil, and let sit for 1 hour. Scrub the interior with a nylon brush, then boil and discard fresh water to remove any aftertaste.
Boil Dry Protection and Thermal Fuse
The unit is equipped with a thermal limiter with auto-reset. If the water level is too low, the unit will turn off automatically and take up to 8 minutes to reset after cooling. A thermal fuse is also installed as a one-time-use safety component; if it activates, the fuse breaks and the unit will no longer function.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Coffee basket flooding
Use medium-coarse grind coffee. Avoid soft water and finely ground/drip coffee.
Urn turns off automatically
Boil dry protection may have triggered. Wait for the unit to cool down (up to 8 minutes) before it resets.
Urn will not heat
The thermal fuse may have blown. This is a one-time-use component and cannot be repaired.
Before use
- Remove all packaging from inside and outside.
- Fill with water, boil, and discard to clear residue.
- Ensure the percolator tube is fitted properly inside the tank.
- Check that water level is between MIN and MAX indicators.
- Ensure the lid is locked securely.
Images and diagrams
- The electrical circuit diagram illustrates the connection between the power source, thermal cut-out (TCO) switches, heating element, and indicator lights.
Model compatibility
- Use only with a grounded 110-120V AC socket.
- Do not use soft water as it may cause the coffee basket to flood.
