User Manual for Avantco 177DHC13 and 177DHC26 Beverage Dispensers
Comprehensive user guide for Avantco 177DHC13 and 177DHC26 beverage dispensers. Includes setup, operation, cleaning, maintenance, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The Avantco 177DHC13 and 177DHC26 are beverage dispensers that require the boiler tank to be filled with water to the MAX level before operation. The machine must be cleaned and sanitized daily, and the boiler should be de-scaled every 3 months. p. 1, 5, 15
Key actions
- Fill the boiler tank with water to the MAX level before starting the machine. p. 5
- Clean and sanitize the bowl and tap daily. p. 7
First start
- Fill the boiler tank with water to the MAX level, pour the beverage into the bowl, turn on the main switch, and set the thermostat. p. 5
Problems and fixes
Machine shutdown
Top up the boiler tank. If the machine does not restart, contact a specialized technician.
p. 18Maintenance and reset
- If the machine shuts down due to low water, top up the boiler. If it does not restart, press the pushbutton underneath the base. p. 6, 16
Where to find it in the PDF
- Safety information p. 3
- Parts diagram p. 4
- Operating instructions p. 5, 6
- Cleaning and maintenance p. 7, 16
- Wiring diagram p. 17
- Troubleshooting p. 18
Table of contents
Manual images
Click an image to enlargeQuick Guide

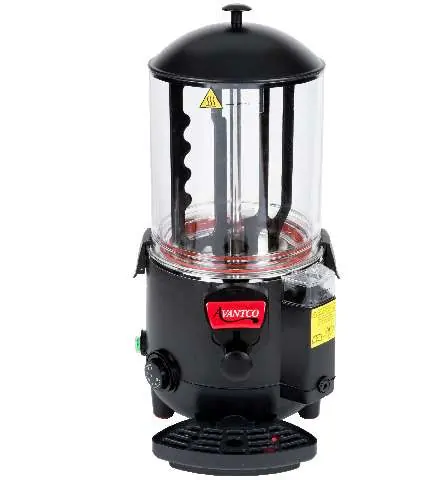

This manual provides instructions for the Avantco 177DHC13 and 177DHC26 beverage dispensers. These units are designed for indoor use only. Before operating, ensure the boiler tank is filled with water to the MAX level indicated on the tray. Never operate the machine without water in the boiler, as this will damage the heating element.
Operating Instructions
To start the machine:
- Remove the lid and pour the prepared beverage into the bowl.
- Do not exceed the maximum level marked on the tray.
- Ensure the plug is inserted into the mains socket.
- Press the main switch to start the machine and mixing.
- Set the thermostat to the required temperature to heat the product.
To dispense the product:
- Place a cup beneath the tap.
- Use the lever on the tap to dispense the product.
- Gradually release the lever to return to the standby position.

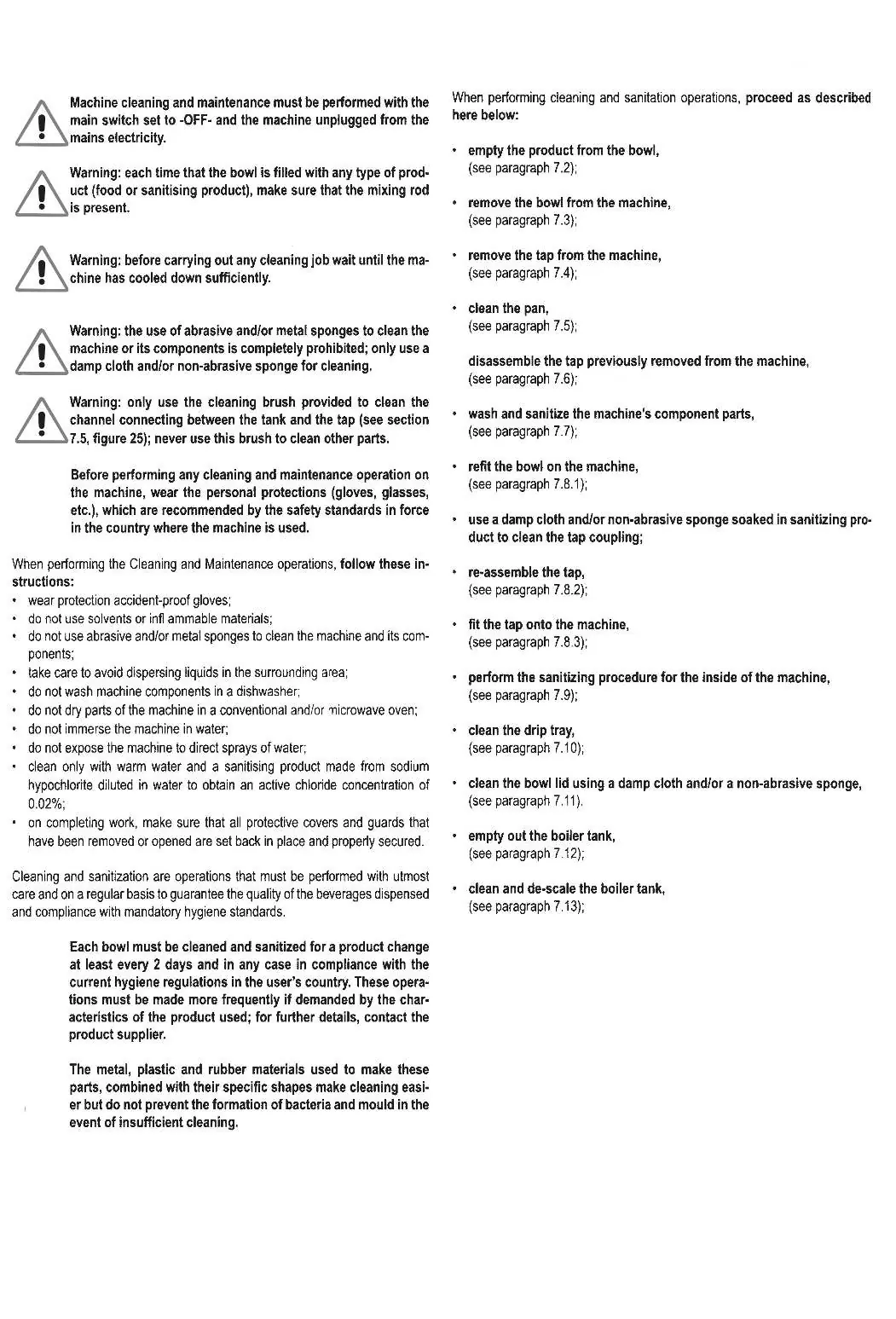

Cleaning and Maintenance
Cleaning and sanitation must be performed with the main switch set to OFF and the machine unplugged. Do not use abrasive or metal sponges.
- Emptying the bowl: Use the tap to empty the product.
- Removing the bowl: Unhook the bowl handles, release the bowl from the machine body, and slide it upwards.
- Cleaning the tap: Disassemble the tap by removing the rod and spring. Clean the channel connecting the bowl and tap using the provided brush.
- Cleaning the boiler: The boiler tank should be de-scaled at least once every 3 months. Use a scale remover for coffee machines.
- Resetting the temperature sensor: If the machine shuts down due to lack of water, top up the boiler. If it does not restart, use a suitable tool to press the reset button located under the base or behind the protective screw.
Troubleshooting
If the machine malfunctions, consult the troubleshooting table in the manual. Common issues include the machine not heating (check power, switch, or thermal protector), mixing paddle not turning (check power or shaft position), or tap leaks (clean or replace seals).
Manufacturer information
Avantco Equipment
Practical help
Common problems
Machine does not heat
Ensure the machine is plugged in, the switch is set to ON, and the thermostat is adjusted. If the thermal protector has tripped, reset it.
Mixing paddle does not turn
Ensure the machine is plugged in and the switch is ON. Check if the driving shaft is properly in place.
Tap leaks
Empty the machine and clean the tap thoroughly. If the leak persists, the sealing gasket may need replacing.
Machine shutdown
The water level in the boiler has fallen below the minimum. Top up the boiler tank. If it does not restart, contact a specialized technician.
Before use
- Ensure the machine is placed on a flat surface.
- Fill the boiler tank with water to the MAX level.
- Ensure the main switch is set to OFF before plugging in.
- Pour the beverage into the bowl, not exceeding the MAX level.
- Ensure the lid is properly in place.
Specs in practice
- Boiler Water Level
- Must be kept between MIN and MAX. A level sensor shuts down the machine if water falls below the minimum.
Images and diagrams
- The parts diagram identifies 17 components, including the lid, bowl, mixing auger, tap handle, and drip tray.
- Wiring diagram shows the electrical connections for the 115V model, including the main power switch, boiler tank sensor, and safety thermostat.
Model compatibility
- Indoor use only.
- Use only demineralized water in the boiler tank for correct operation.
